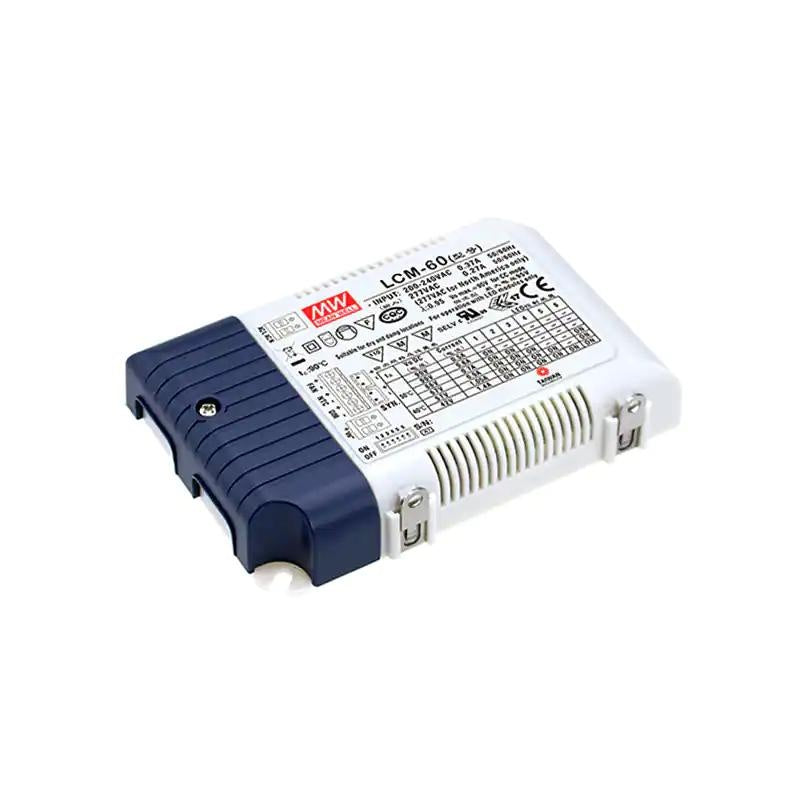

Hunza Meanwell LCM60 60W 500-1400mA LED Driver - DALI and Push

Hunza LightingSKU: LCM60-DA

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

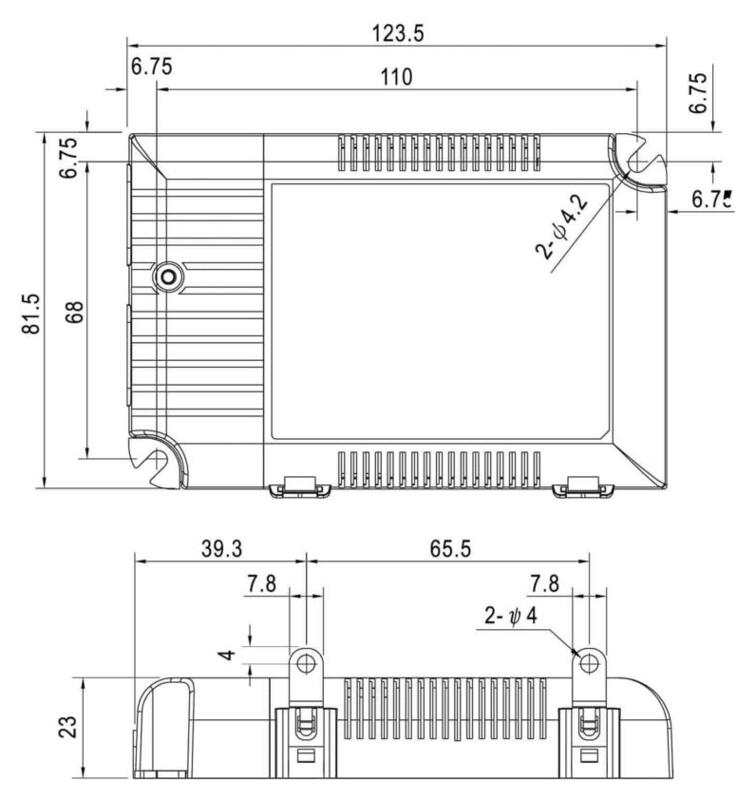

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Hunza Meanwell LCM60 60W 500-1400mA LED Driver - DALI and Push

Not available for USA or Australian market.

For exterior use, it is highly recommended to install this in a weatherproof box, available as an option from Hunza. When this driver is used as a remote power supply, Series Wiring is required to connect the fixtures. Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

  • Constant current mode output with multiple levels selectable by dip switch
  • Emergency lighting application is available according to IEC61347-2-13
  • Built-in active PFC function
  • Standby power consumption <0.5W
  • Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming synchronization up to 10 units
  • 3 years warranty

Product Specifications

Driver Type
  • Constant Current
Dimming
  • DALI and Push
Output Voltage
  • 95V
Output Current
  • 500-1400mA
Frequency
  • 50/60Hz
Input Voltage
  • 180-295VAC
  • 254-417VDC
Input Current
  • 0.07A
Output Power (W)
  • 60.3W
Ambient/Operating Temperature (ta)
  • -30°C~90°C
Ingress Protection
  • IP20
Standards
  • CE
  • BSI
  • CB
  • EAC
  • EN
  • ENEC Approved
  • RCM (C-Tick)
  • UL
Warranty
  • 3 Year Third Party Warranty
Dimensions
  • 12.35 x 8.15 x 2.3 cm ( 4.86" x 3.21" x 0.91" )
Weight
  • 0.2 kg ( 0.44 lb )
Product Files

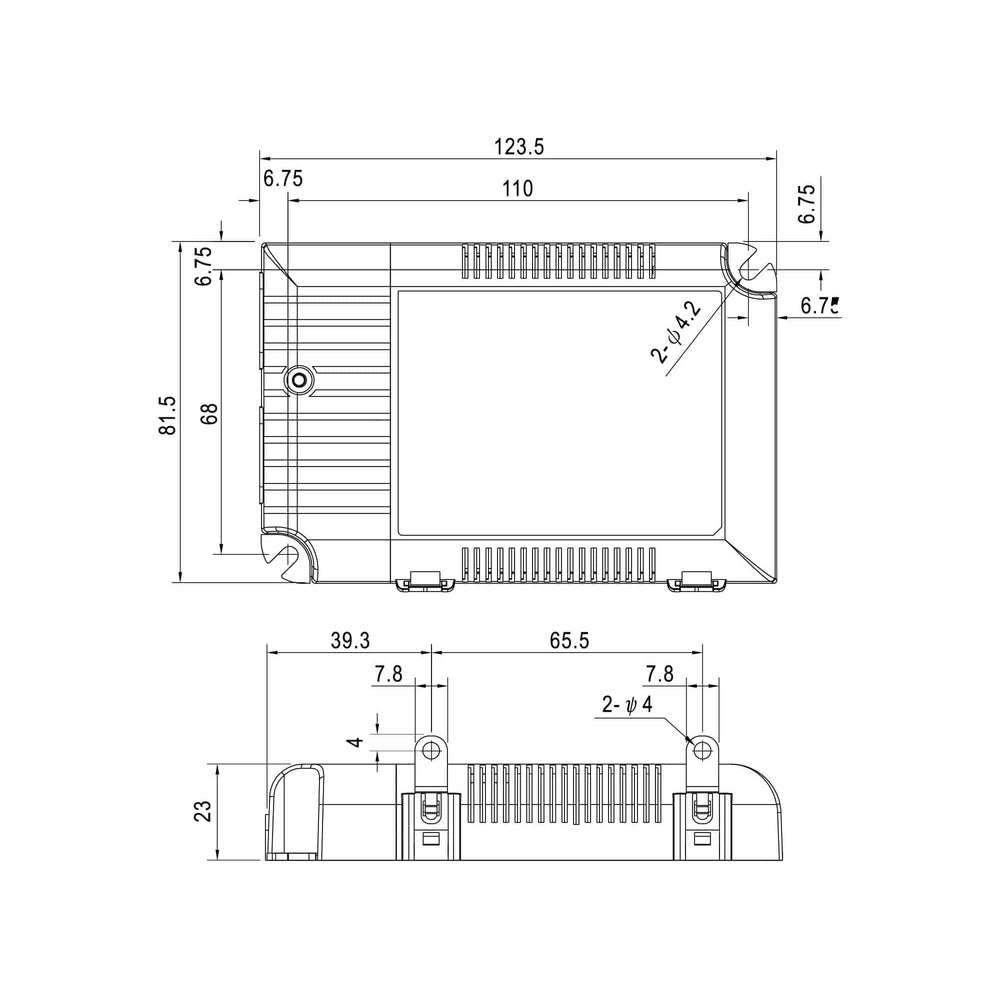

Click for Mean Well LCM-60 Series - Product Diagram

Diagram Image
