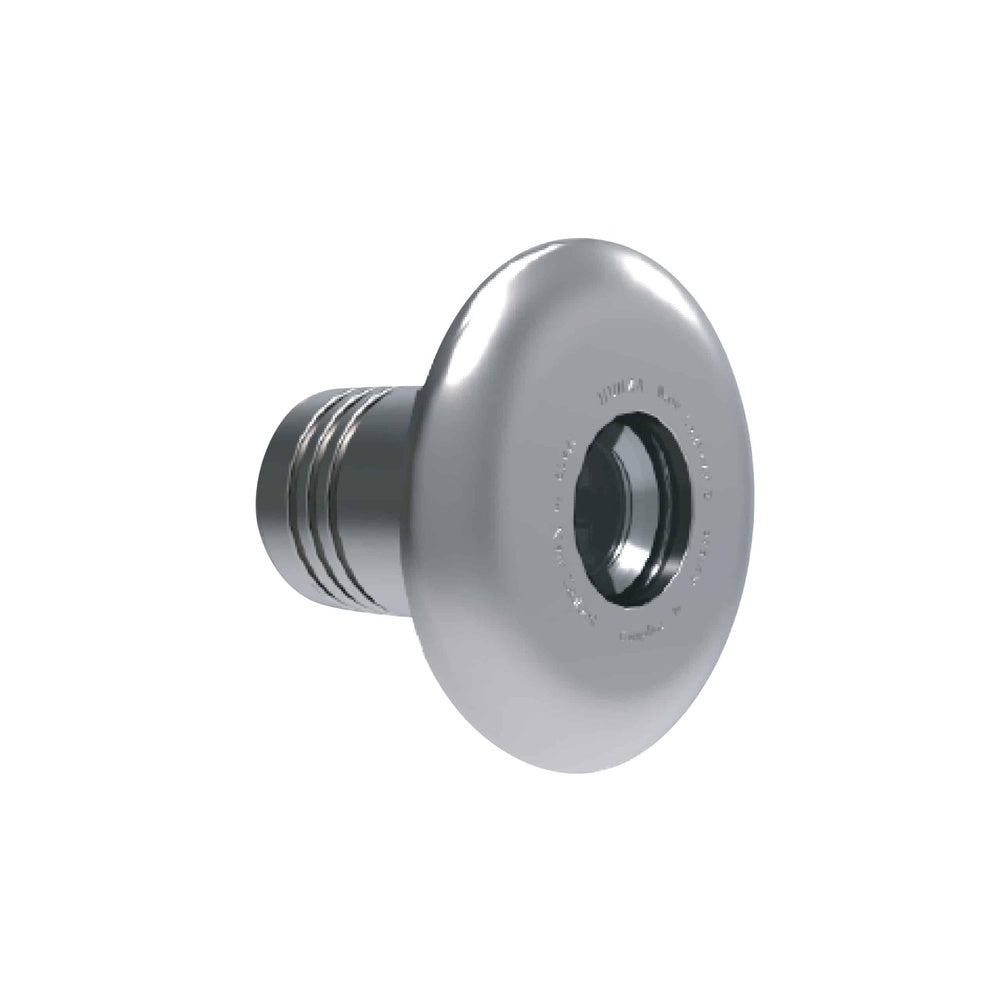

Hunza Pool Light High Power

The Pool Light High Power is an underwater luminaire designed for recessed installation in swimming pools. It is fully submersible, tested to an IP68 water protection rating and features an electropolish finish for additional corrosion resistance. The luminaire is held in the PVC canister by two "O" rings. There are no mounting screws in the flange to spoil the aesthetics of this luminaire. Up to 600mm (2 ft) of cable can be coiled up inside the mounting canister enabling the luminaire to be removed for lamp changing above the water line. All Hunza High Power products have an extra powder coat layer to ensure maximum corrosion protection.

Product Specifications

Lumen Output*

1200 lumens @ 700mA (12 Watts)

Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.

100 lm/W

Warranty

*Excludes third party lamps and power supplies*
316 Stainless Steel 316 Stainless Steel Components - 5 years
Electronics - 5 Years

Power Options

24VDC Input - Parallel Wired 12.6W

Lens Options

with Clear Lens
with Frosted Lens
with Clear Lens and Hex Cell Louvre

Mounting Options

Pool Light Canistier (PVC)

LED

Cree® CXB 1512 field replaceable LED board

LED Life Expectancy

50,000 Hrs @ L70

CRI

85+ Optional
90+ Standard

Ingress Protection

IP68

Recommended Power Supplies

24VDC Power Supply Required for 24VDC Input ( CV format )

Product Files

Diagram Image

Description
Product Files
Diagram Image
Hunza Warranty
Hunza Finishes

Description

Hunza Pool Light High Power

Product Specifications

Lumen Output*	1200 lumens @ 700mA (12 Watts)
Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	100 lm/W
Warranty	Excludes third party lamps and power supplies 316 Stainless Steel 316 Stainless Steel Components - 5 years Electronics - 5 Years
Power Options	24VDC Input - Parallel Wired 12.6W
Lens Options	with Clear Lens with Frosted Lens with Clear Lens and Hex Cell Louvre
Mounting Options	Pool Light Canistier (PVC)
LED	Cree® CXB 1512 field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
CRI	85+ Optional 90+ Standard
Ingress Protection	IP68
Recommended Power Supplies	24VDC Power Supply Required for 24VDC Input ( CV format )

Product Files

Click for High Power Pool Light - POOL-HP - Specification Sheet

Click for High Power Pool Light - POOL-HP - Product Diagram

Click for High Power Pool Light - POOL-HP - Installation Instructions International

Click for High Power Pool Light - POOL-HP - Installation Instructions USA

Diagram Image

Hunza Warranty

HUNZA LIGHTING BLACK LABEL WARRANTY

When you purchase or specify a Hunza luminaire, you get the benefit
of the legendary Hunza reputation for high quality and long life. We
back this up with extended warranty, offering up to 10 years on body
components and 5 years on the integral PURE LEDTM system. Warranty
on plug-in (drop-in) LED lamps is limited to 1 year. When installed and
maintained properly Hunza luminaires will last a lifetime so we keep
serviceability firmly in mind when designing the components and
system construction.

Hunza Five Year Warranty*
All Hunza aluminium luminaires with a UV stable powder-coat finish
have a five-year replacement warranty, subject to standard conditions
listed below. Integral PURE LEDTM components are limited to 5 year
warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Ten Year Warranty*
All Hunza stainless steel and copper luminaires have a ten-year
replacement warranty, subject to standard conditions listed below.
Integral PURE LEDTM components are limited to 5 year warranty.
Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Lifetime Warranty*
All glass lenses supplied with Hunza luminaires have a lifetime
warranty.

Standard Conditions:

1. The environment in which the fixture is to be installed must be
considered carefully when selecting the finish. Stainless steel
luminaires are recommended for high-risk environments such as near
salt water. Aluminium luminaires may not be covered by the full
warranty in these situations.
2. Stainless Steel requires regular cleaning with fresh water when installed
in salty environments. (Refer to instructions supplied with luminaire).
3. Hunza underwater fixtures are not be covered by warranty in situations
where there are chemical imbalances in the water.
4. Warranty excludes impact damage (except for glass lenses), incorrect
installation and incorrect re-assembly.
5. Fixtures must be kept properly maintained, including replacement of
gaskets and lenses when necessary.
6. Hunza, at its discretion, may replace components or the complete
fixture.
7. Hunza warranty is limited to the repair or replacement of products ONLY,
labour charges will not be accepted.
8. Hunza will not be liable for any labour charges for any repair or
replacement of defective drivers. Drivers have their own manufacturer
warranty and any faults will be at the responsibility of the manufacturer.
9. Polycarbonate and acrylic lenses are limited to 5 year warranty.
N.B. Acrylic lenses must NOT be cleaned with any petrochemical
substance, warranty will be void.
10. Warranty excludes halogen lamps and lamp holders, which are
consumable items.

For return policy please Go Here

Hunza Finishes

Hunza Pool Light High Power

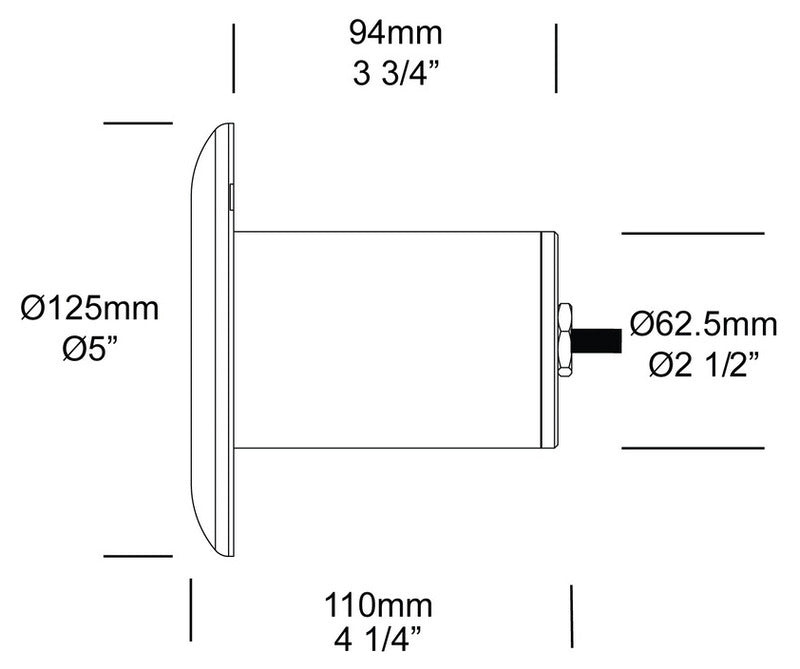

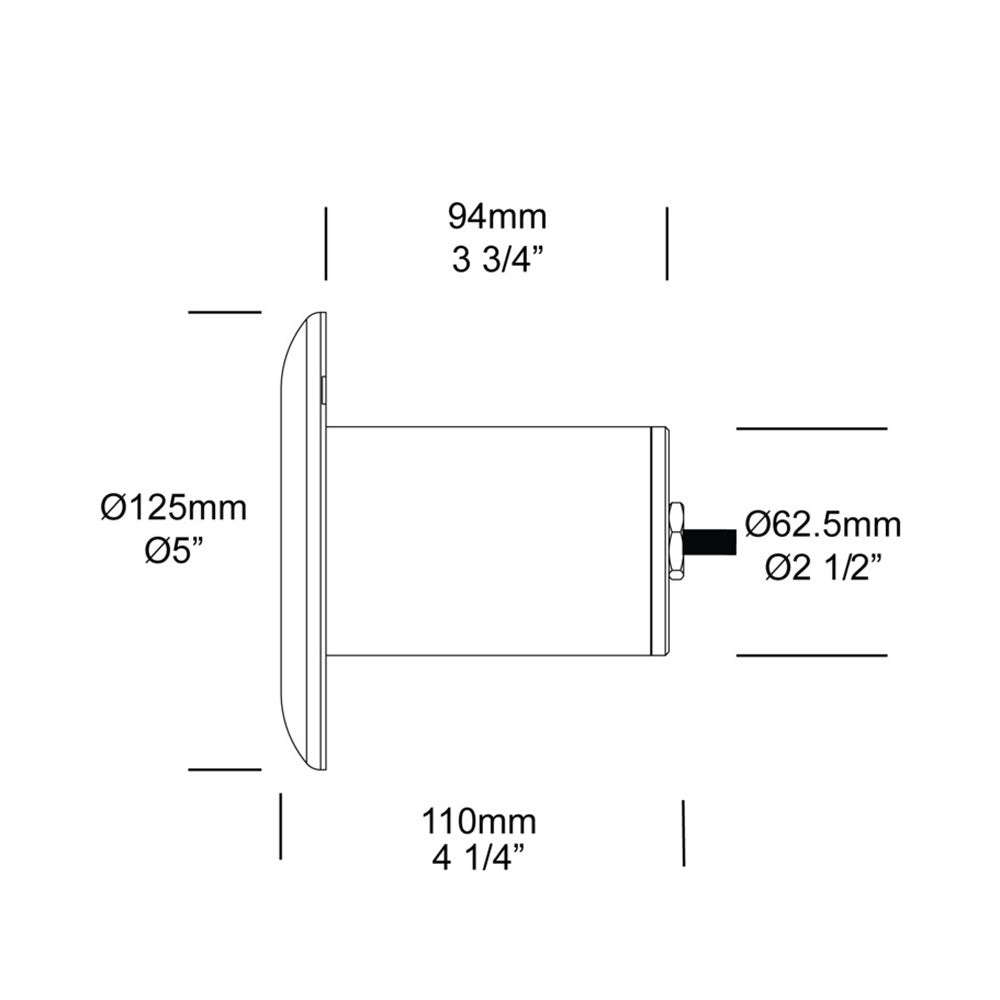

Dimensions Drawing
