Hunza Direct Burial SafeTouch 100 RGBW

Hunza LightingSKU: ST100RGBWDB-SR-SS-13

Select Material: 316 Marine Grade Stainless Steel Flange
Select Beam Angle: 13 Degree
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

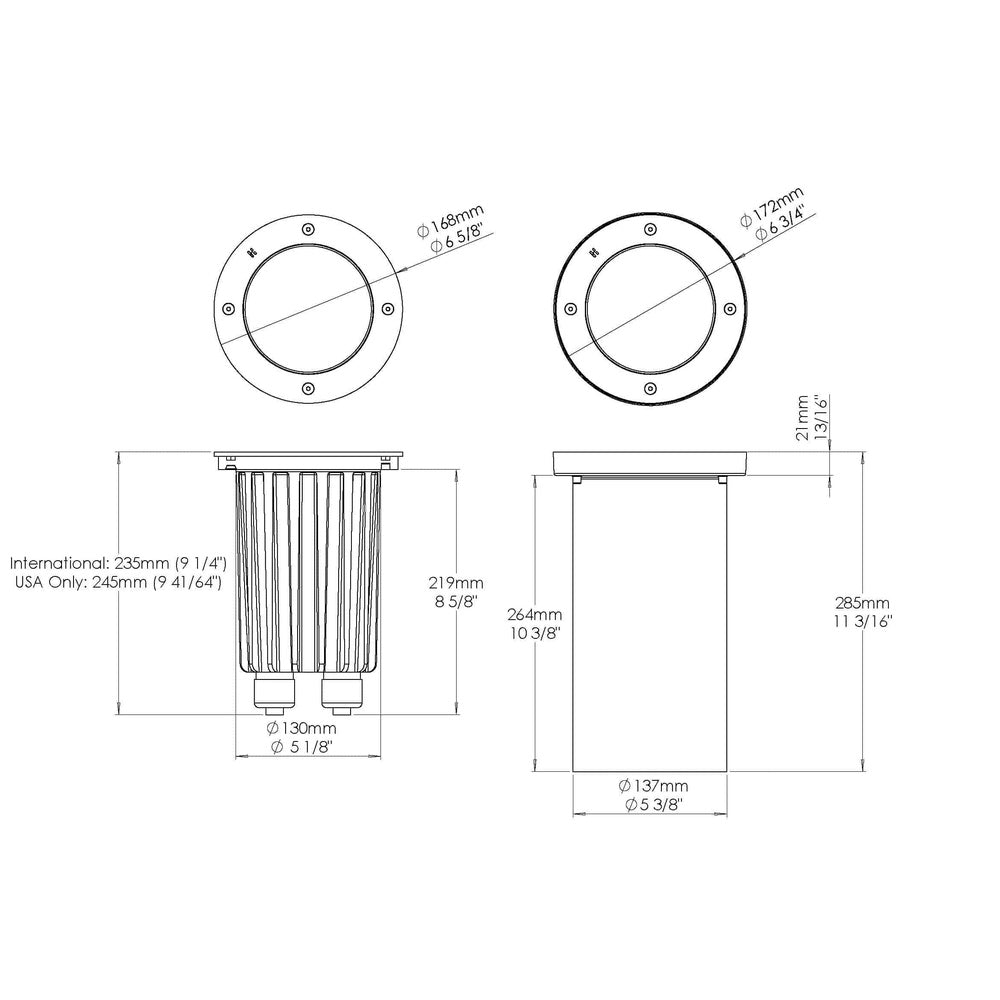

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

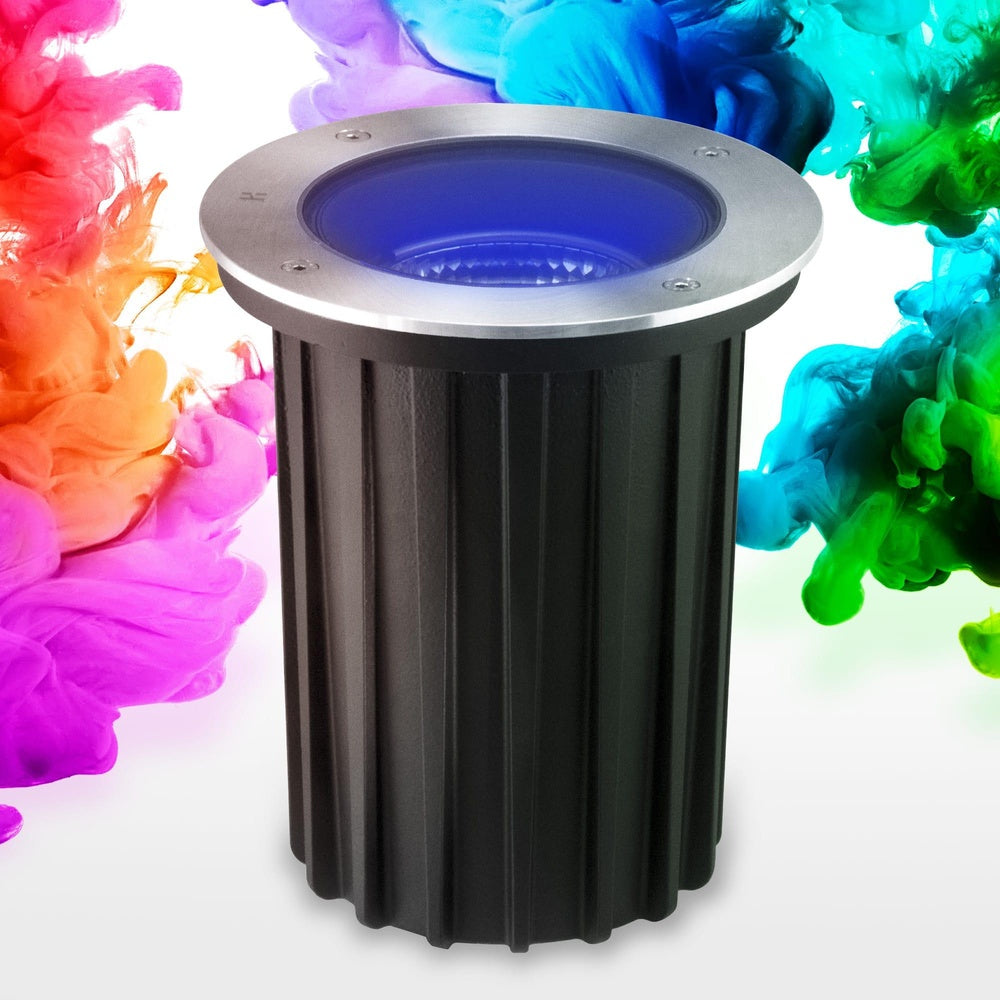

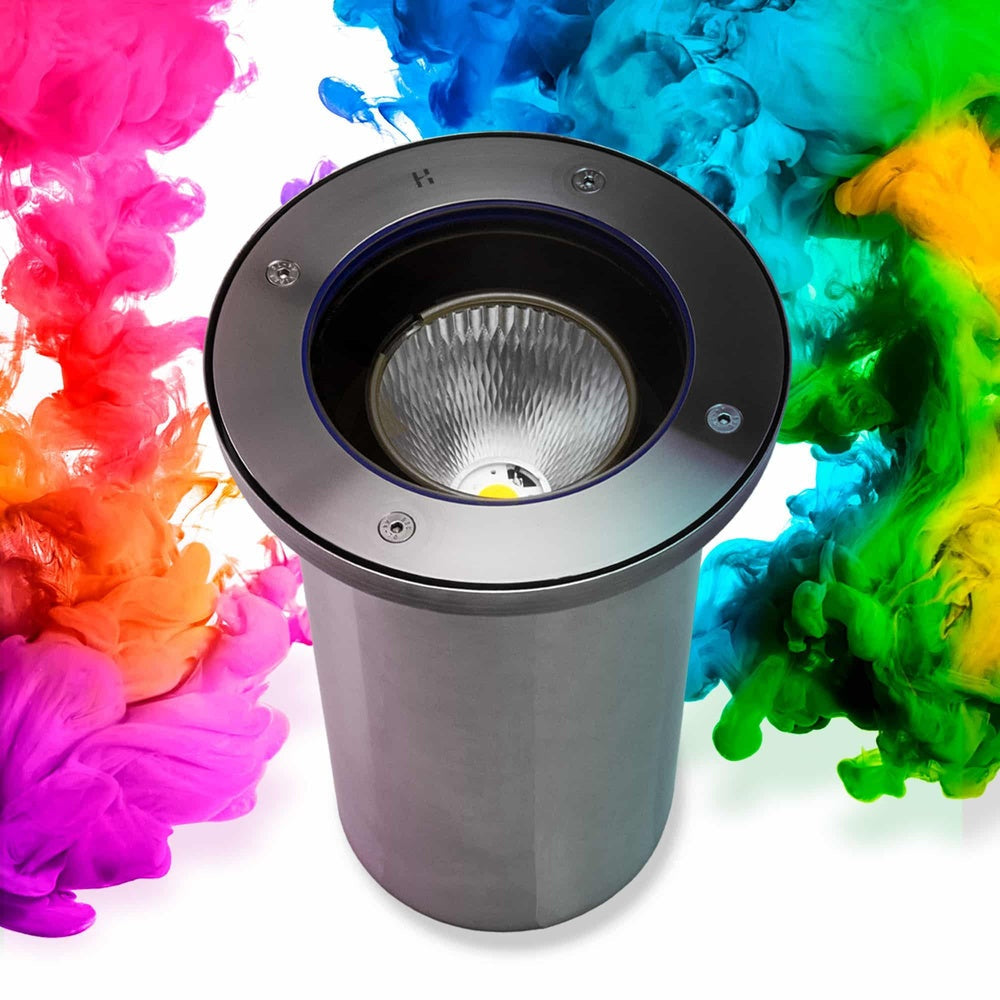

Hunza Direct Burial SafeTouch 100 RGBW

The SafeTouch 100 RGBW inground luminaire has been designed for uplighting in public spaces, incorporating a high-output, multi-colour LED system that is controlled by DMX to produce any colour in the visible spectrum, including pastels and various shades of white.

Product Specifications

Lumen Output*
  • 1400 lumens @ 350mA (26 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 54 lm/W
Luminaire Options
  • SafeTouch 100 RGBW - Direct Burial
Warranty
  • *Excludes third party lamps and power supplies*
  • 316 Stainless Steel Components - 10 years
  • Aluminium Components - 5 years
  • Electronics - 5 Years
  • Solid Bronze Components - 10 Years
Power Options
  • 350mA Input - Series Wired - DMX / DALI 26W
Lens Options
  • with Clear Lens
  • with SafeTouch 100 Anti Slip Lens
  • with SafeTouch 100 Frosted Lens
  • with SafeTouch 100 Hex Cell Louvre
Accessories
  • SafeTouch 100 Glare Shield
LED
  • LED ENGIN LZP RGBW field replaceable LED board
LED Life Expectancy
  • 50,000 Hrs @ L70
Ingress Protection
  • IP68 *not for use in pool or ponds
Impact Protection
  • IK10
CRI
  • RGBW (White 75) @ 6500K
Colour Temperature Options
  • RGBW (White CCT 6500)
Materials

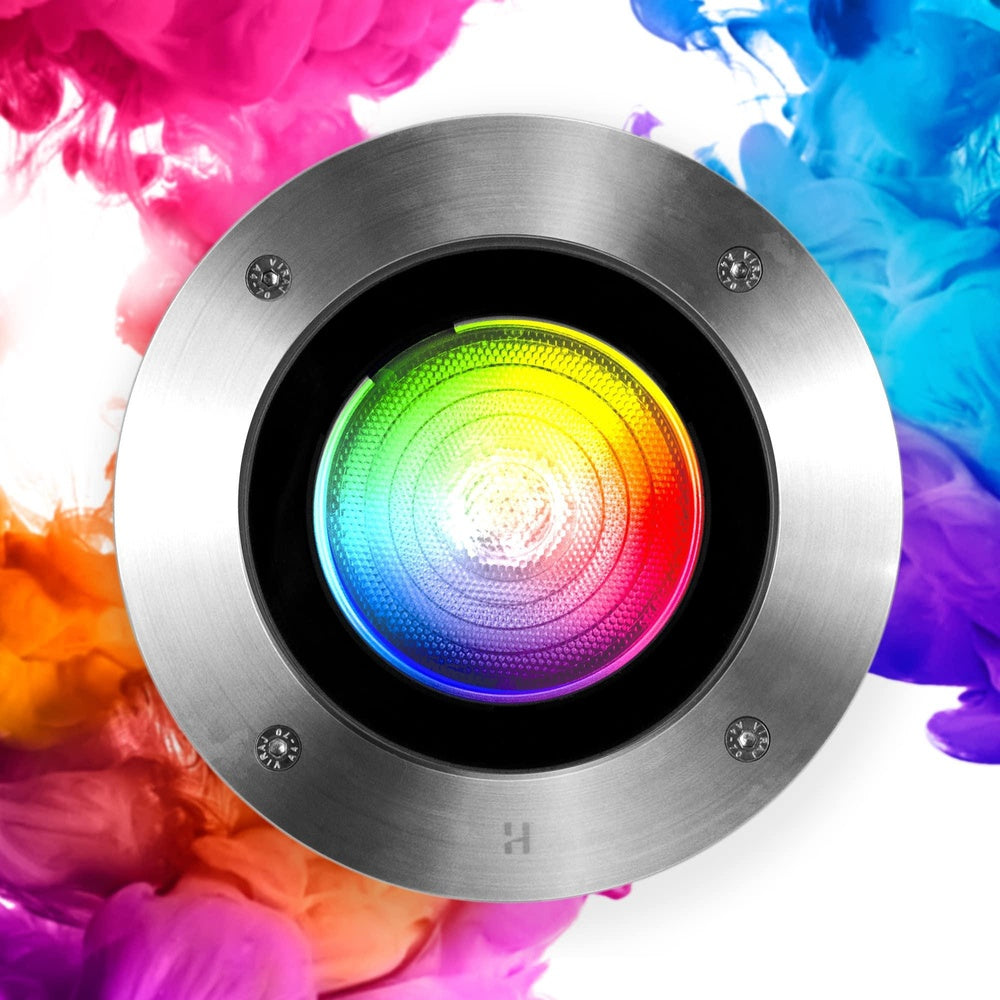

  • 316 Marine Grade Stainless Steel Flange

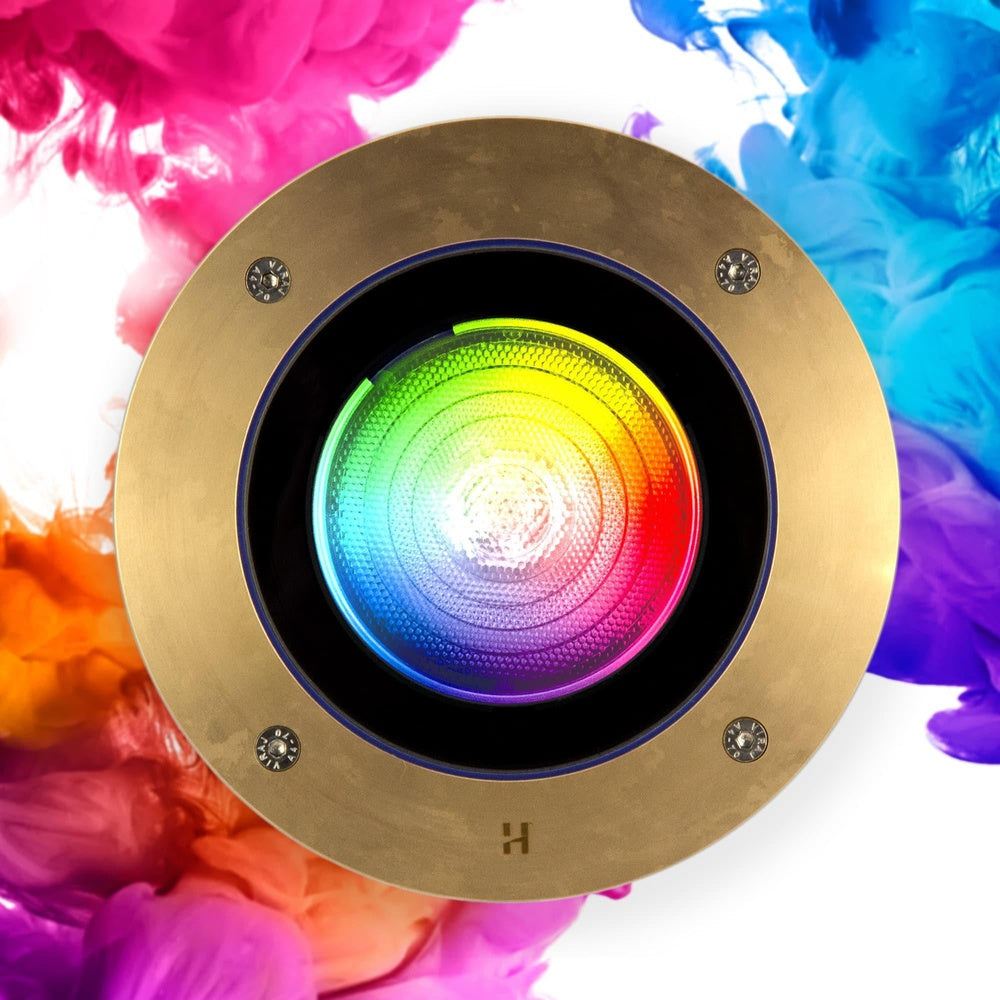

  • Solid Bronze Flange
  • Solid Powder Coated Aluminium Body
Standards
  • IEC/BS/AS/NZ 60598
  • UL 2108
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
Product Files

Click for SafeTouch 100 RGBW - ST100RGBW - Specification Sheet

Click for SafeTouch 100 - ST100 - Product Diagram

Click for Safetouch 100 RGBW - ST100RGBW - Installation Instructions

Click for SafeTouch RGBW Wiring Guide

Click for SafeTouch 100 RGBW - ST1-RGBW - Product Flyer
