Hunza SUNRICHER 1-10V Tunable White 2 Channel - Constant Current Driver - 75W

Hunza LightingSKU: SRP-2007-75CCT

Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

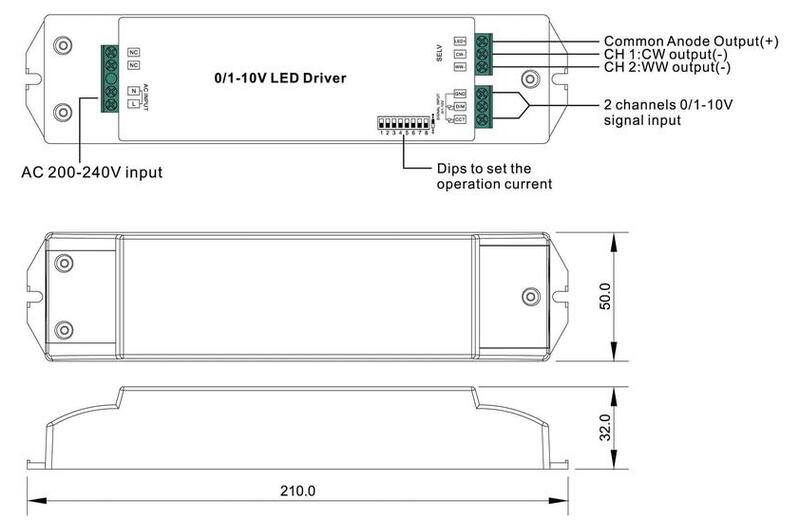

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

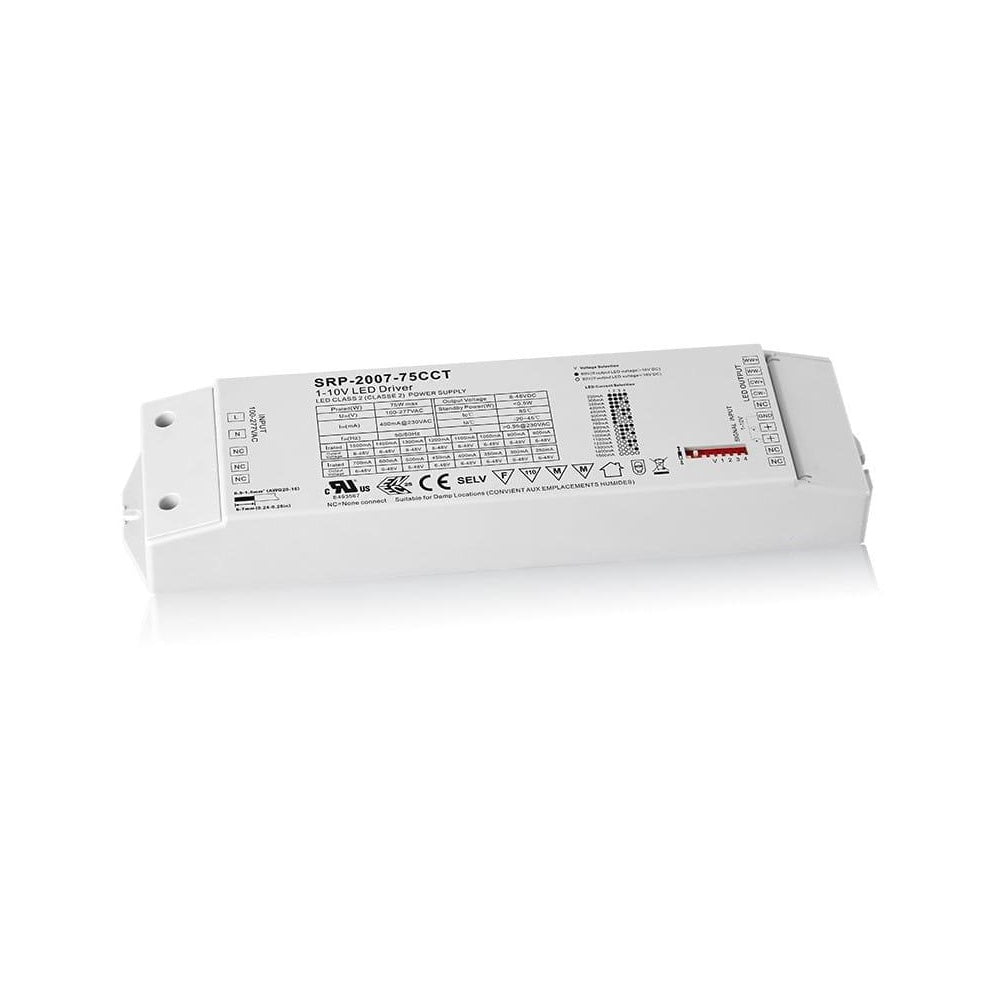

Hunza SUNRICHER 1-10V Tunable White 2 Channel - Constant Current Driver - 75W

The SRP-2007-75CCT is an UL and ENEC approved dimmable 75W LED driver with 1-10V interface and 2 channel constant current output. It is designed for controlling tunable white LED lighting, and a multi current option is selectable from 250mA to 1500mA by DIP switches.

  • Dimmable LED driver, max. output 75W.
  • 2 channels constant current output,250mA - 1500mA adjustable by DIP switches.
  • Tunable white control.
  • Class II power supply, full isolated plastic case.
  • Rubycon capacitors.
  • Built-in active PFC function.
  • High power factor and efficiency, PF > 0.9, Efficiency > 87%.
  • IP20 rating

Please refer to the Hunza PureLED Series Wiring page for more information on wiring diagrams and fixture loads per driver.

Product Specifications

Driver Type
  • Constant Current 2 Channel
Dimming
  • 1-10V Dimming
Output Voltage
  • 5-48V
Output Current
  • 250-1500mA
Output Power (W)
  • 75W
Input Voltage
  • 100-277VAC
Input Current
  • 0.9A MAX
Ingress Protection
  • IP20
Standards
  • ENEC Approved
  • UL Approved
Warranty
  • Third Party Warranty*
Dimensions
  • 6.4 x 24.4 x 3.2 cm ( 2.52" x 9.61" x 1.26" )
Product Files

Click for SUNRICHER 1-10V Tunable White Constant Current LED Driver | 75W - SRP-2007-75CCT - Specification Sheet

Diagram Image
