Hunza Ultra 12 Spot - Dim to Warm

Hunza LightingSKU: SDW/U12-SR-EBK-11

Select Material: Black
Select Beam Angle: 11 Degree
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

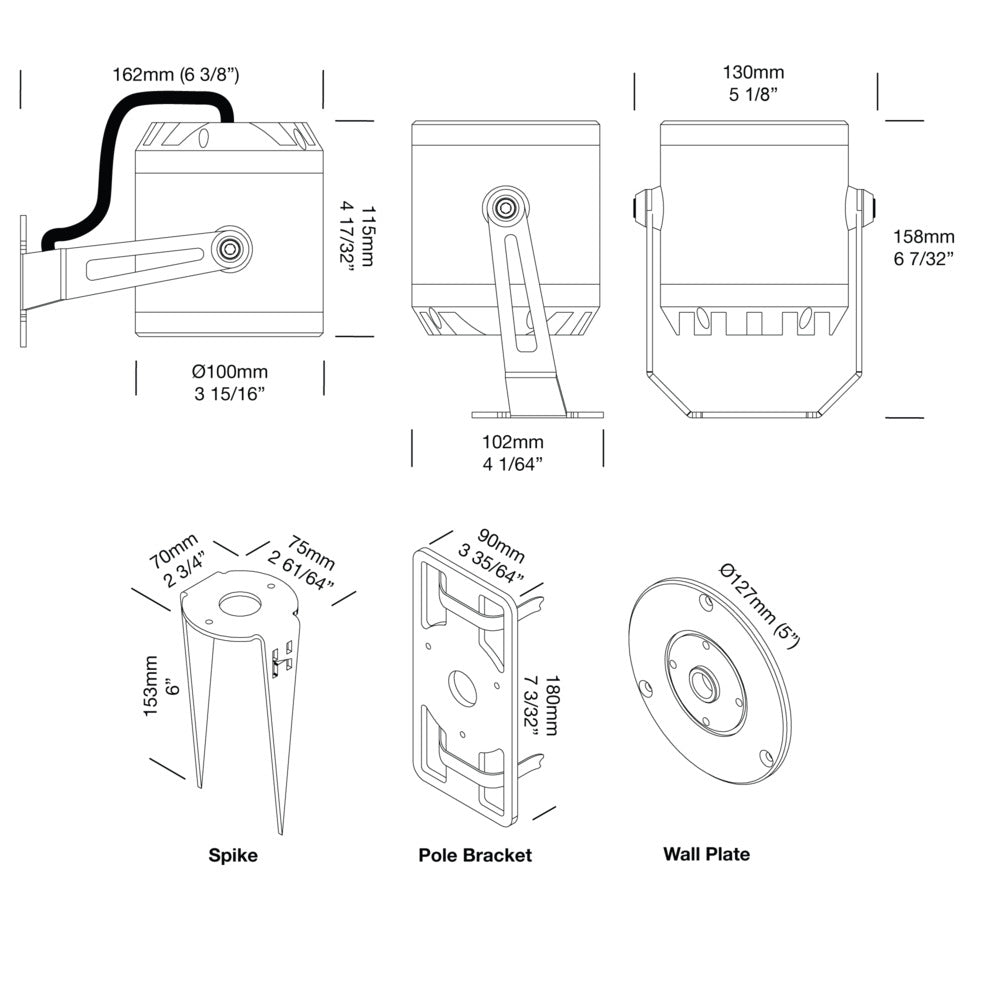

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

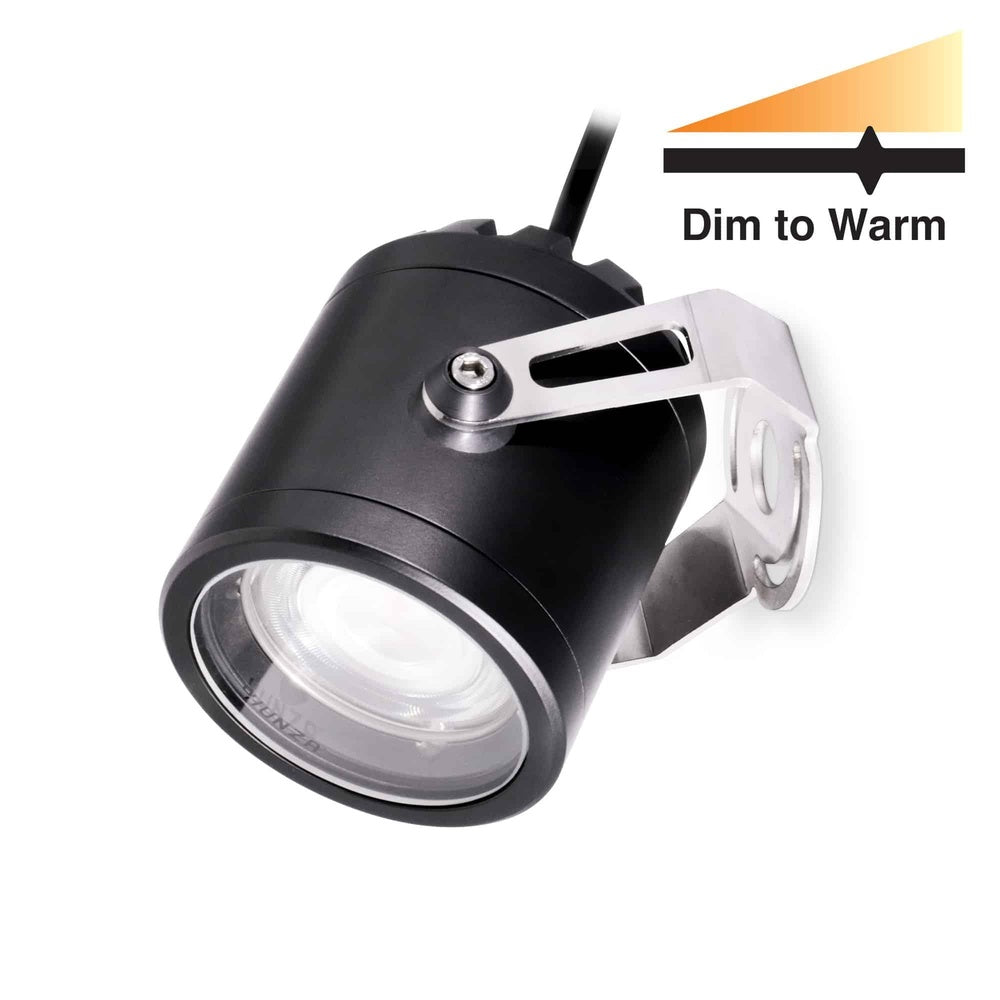

Hunza Ultra 12 Spot - Dim to Warm

The Dim to Warm Ultra 12 Spot has been designed to be mounted on vertical surfaces as well as in soil with the Spike accessory. It can be used for wall washing, to provide directional light, and to highlight architectural features and structural elements. It has a fully adjustable head allowing 120 degrees rotation and 0-120 degrees elevation and can then be fixed in place using the inbuilt locking mechanism.

Product Specifications

Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 83 lm/W
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 350mA CC Input - Series Wired - Remote Driver 12.6W
Colour Temperature Options
  • 1800K - 3000K (Dim to Warm)
Lens Options
  • with Clear Lens
  • with Ultra 12 Hex Cell Louvre
Mounting Options
  • Ultra 12 Pole Bracket
  • Ultra 12 Spike
  • Ultra 12 Wall Plate
Accessories
  • Ultra 12 Glare Guard
  • Ultra 12 Snoot
LED
  • Bridgelux® Plug and Play field replaceable LED
  • field replaceable LED
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 90+ Standard
Ingress Protection
  • IP67
Impact Protection
  • IK10
Materials
  • Solid Powder Coated Aluminium
Standards
  • UL 2108 (pending)
  • UL 1838
  • CE
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
Product Files

Click for Ultra 12 Spot - Dim to Warm - SDW-U12 - Specification Sheet

Click for Ultra 12 Spot Light - S-U12 - Product Diagram

Click for Ultra 12 Spot Light - S-U12 - Installation Instructions International

Diagram Image
