Hunza Ultra 35 Flange Mount Liquid Beam™ RGBW Pole Spot Light

The Hunza™ Ultra 35 Liquid Beam™ Intelligent Luminaire range packs a punch. Integrating multiple technologies into one streamlined product providing control at your fingertips. The standard Ultra 35 Luminaire has been enhanced to facilitate Casambi technology, Bluetooth & Liquid Beam™ Control. Available with a Flange Mount option.

Liquid Beam™ Technology:

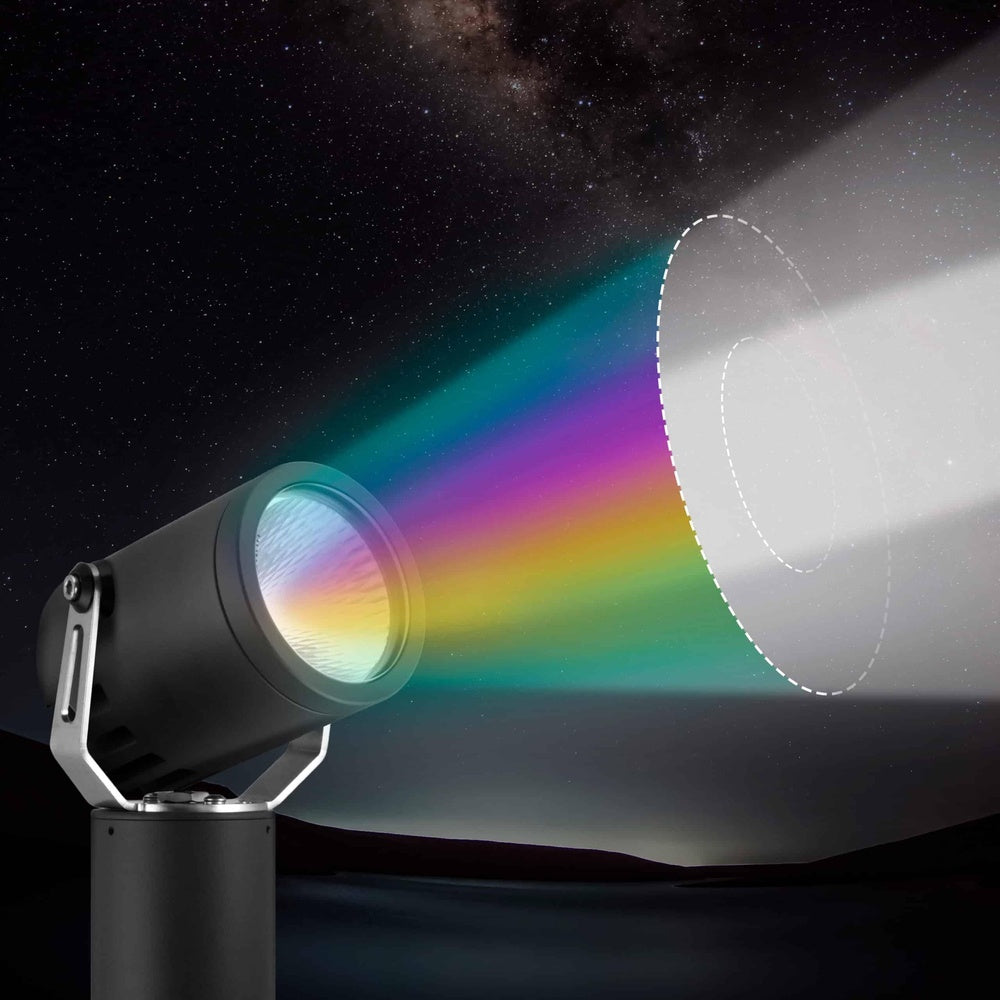

The Solid State Light Beam is controlled via Bluetooth, adjustable between 10-50 degrees. No need to service the ﬁxture to adjust the beam.

Fully Customisable via Bluetooth:

Adjust colours: Full hue spectrum & colour temperature.

Enabled switches, sensors, and other Bluetooth devices.

Set multiple scenes/groupings for each area.

Calendars and timer settings.

Simple App Control:

Control all ﬁxtures in one interface & integrates with other Bluetooth devices (switches & sensors) via Casambi’s Bluetooth iOS or Android App.

Simplify or Customise with Casambi:

Casmabi-ready Luminaires are Bluetooth enabled so they do not require WiFi routers & gateways. The Liquid Beam™ Luminaire will operate on your existing power circuits without new wiring. You can also retroﬁt Casambi modules into existing switches, lamps/luminaires.

Casambi is advanced enough for complex installs; integrations & setups, administrator permission, an unlimited number of luminaries and much more.

Product Specifications

Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.

30 lm/W

Luminaire Options

Ultra 35 Liquid Beam™ RGBW Pole Spot Light - Flange Mount

Warranty

*Excludes third party lamps and power supplies*
Aluminium Components - 5 years
Electronics - 5 Years

Power Options

24VDC Input - Parallel Wired - 13W
100-240 VAC Driver - Retro - Liquid Beam Driver 13W

Beam Angle Options

Solid State Control 10 to 50 Degrees

Lens Options

with Clear Lens
with Ultra 35 Hex Cell Louvre

Colour Temperature Options

RGBW (White CCT 5400)

Mounting Options

with Mounting Cage*

Accessories

Ultra 35 Glare Guard
Ultra 35 Snoot

LED

LED ENGINE LZ4 RGBW field replaceable LED board

LED Life Expectancy

50,000 Hrs @ L70

CRI

RGBW (White 75) @ 5400K

Ingress Protection

IP66

Impact Protection

IK10

Materials

Solid Powder Coated Aluminium

Standards

IEC/BS/AS/NZ 60598
UL 1598
UL 2108
UL 1838
CE

Recommended Power Supplies

24VDC Power Supply Required for 24VDC Input ( CV format )
No Driver Required for Retro™ R ( 120/240V Input )

Product Files

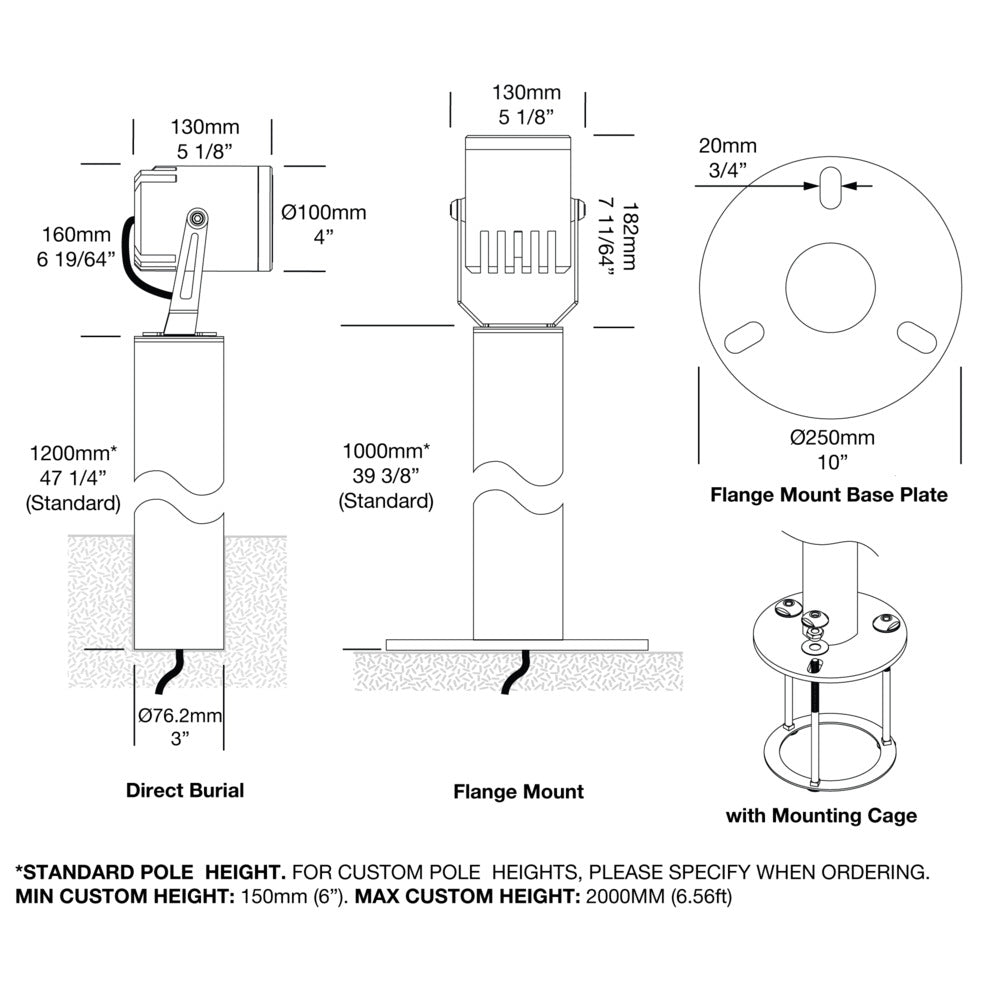

Diagram Image

Description
Product Files
Diagram Image
Hunza Warranty
Hunza Finishes

Description

Hunza Ultra 35 Flange Mount Liquid Beam™ RGBW Pole Spot Light

Liquid Beam™ Technology:

The Solid State Light Beam is controlled via Bluetooth, adjustable between 10-50 degrees. No need to service the ﬁxture to adjust the beam.

Fully Customisable via Bluetooth:

Adjust colours: Full hue spectrum & colour temperature.
Enabled switches, sensors, and other Bluetooth devices.
Set multiple scenes/groupings for each area.
Calendars and timer settings.

Simple App Control:

Control all ﬁxtures in one interface & integrates with other Bluetooth devices (switches & sensors) via Casambi’s Bluetooth iOS or Android App.

Simplify or Customise with Casambi:

Casambi is advanced enough for complex installs; integrations & setups, administrator permission, an unlimited number of luminaries and much more.

Product Specifications

Lumens Per Watt (lm/W)* *Delivered from the Luminaire with an unobstructed beam.	30 lm/W
Luminaire Options	Ultra 35 Liquid Beam™ RGBW Pole Spot Light - Flange Mount
Warranty	Excludes third party lamps and power supplies Aluminium Components - 5 years Electronics - 5 Years
Power Options	24VDC Input - Parallel Wired - 13W 100-240 VAC Driver - Retro - Liquid Beam Driver 13W
Beam Angle Options	Solid State Control 10 to 50 Degrees
Lens Options	with Clear Lens with Ultra 35 Hex Cell Louvre
Colour Temperature Options	RGBW (White CCT 5400)
Mounting Options	with Mounting Cage*
Accessories	Ultra 35 Glare Guard Ultra 35 Snoot
LED	LED ENGINE LZ4 RGBW field replaceable LED board
LED Life Expectancy	50,000 Hrs @ L70
CRI	RGBW (White 75) @ 5400K
Ingress Protection	IP66
Impact Protection	IK10
Materials	Solid Powder Coated Aluminium
Standards	IEC/BS/AS/NZ 60598 UL 1598 UL 2108 UL 1838 CE
Recommended Power Supplies	24VDC Power Supply Required for 24VDC Input ( CV format ) No Driver Required for Retro™ R ( 120/240V Input )

Product Files

Click for Liquid Beam Ultra 35 Pole Spot RGBW - PS-U35-LBRGBW - Specification Sheet

Click for Ultra 35 Pole Spot - PS-U35 - Product Diagram

Click for Guide: Flange Mount Template and Mounting Cage

Click for Liquid Beam Ultra 35 Pole Spot - Installation Instructions International

Click for Liquid Beam Ultra 35 Pole Spot - Installation Instructions USA

Click for Hunza Liquid Beam - Product Flyer

Click for Casambi App User Manual

Diagram Image

Hunza Warranty

HUNZA LIGHTING BLACK LABEL WARRANTY

When you purchase or specify a Hunza luminaire, you get the benefit
of the legendary Hunza reputation for high quality and long life. We
back this up with extended warranty, offering up to 10 years on body
components and 5 years on the integral PURE LEDTM system. Warranty
on plug-in (drop-in) LED lamps is limited to 1 year. When installed and
maintained properly Hunza luminaires will last a lifetime so we keep
serviceability firmly in mind when designing the components and
system construction.

Hunza Five Year Warranty*
All Hunza aluminium luminaires with a UV stable powder-coat finish
have a five-year replacement warranty, subject to standard conditions
listed below. Integral PURE LEDTM components are limited to 5 year
warranty. Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Ten Year Warranty*
All Hunza stainless steel and copper luminaires have a ten-year
replacement warranty, subject to standard conditions listed below.
Integral PURE LEDTM components are limited to 5 year warranty.
Warranty on plug-in (drop-in) LED lamps is limited to 1 year.

Hunza Lifetime Warranty*
All glass lenses supplied with Hunza luminaires have a lifetime
warranty.

Standard Conditions:

1. The environment in which the fixture is to be installed must be
considered carefully when selecting the finish. Stainless steel
luminaires are recommended for high-risk environments such as near
salt water. Aluminium luminaires may not be covered by the full
warranty in these situations.
2. Stainless Steel requires regular cleaning with fresh water when installed
in salty environments. (Refer to instructions supplied with luminaire).
3. Hunza underwater fixtures are not be covered by warranty in situations
where there are chemical imbalances in the water.
4. Warranty excludes impact damage (except for glass lenses), incorrect
installation and incorrect re-assembly.
5. Fixtures must be kept properly maintained, including replacement of
gaskets and lenses when necessary.
6. Hunza, at its discretion, may replace components or the complete
fixture.
7. Hunza warranty is limited to the repair or replacement of products ONLY,
labour charges will not be accepted.
8. Hunza will not be liable for any labour charges for any repair or
replacement of defective drivers. Drivers have their own manufacturer
warranty and any faults will be at the responsibility of the manufacturer.
9. Polycarbonate and acrylic lenses are limited to 5 year warranty.
N.B. Acrylic lenses must NOT be cleaned with any petrochemical
substance, warranty will be void.
10. Warranty excludes halogen lamps and lamp holders, which are
consumable items.

For return policy please Go Here

Hunza Finishes

Hunza Ultra 35 Flange Mount Liquid Beam™ RGBW Pole Spot Light

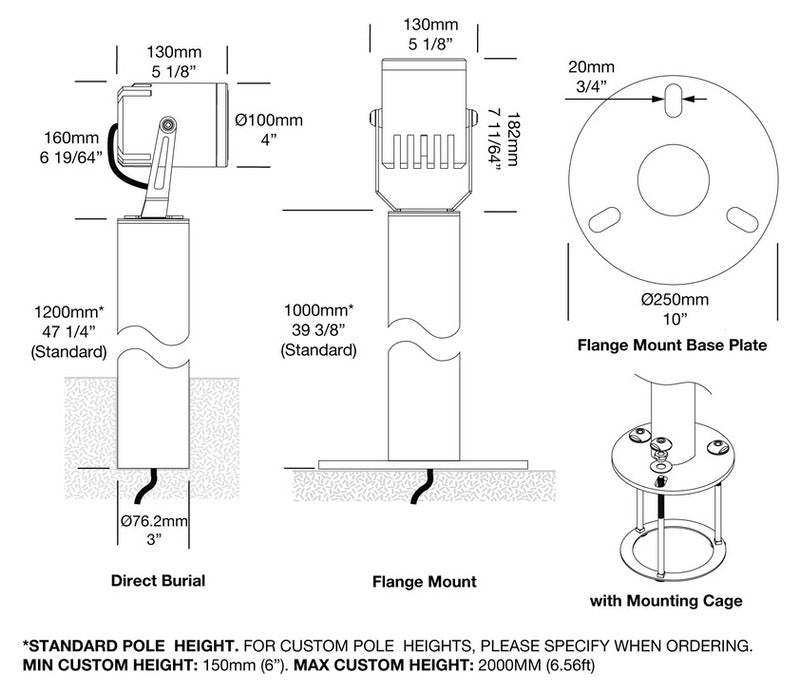

Dimensions Drawing
