Hunza Direct Burial Ultra Bollard Light

Hunza LightingSKU: BOL/U-R-EBK-15-2

Select Material: Black
Select Beam Angle: 15 Degree
Select Colour Temperature: 2700K
Price:
Sale price$9,999.00 USD

Hunza Normally Ships within 3-5 Weeks.

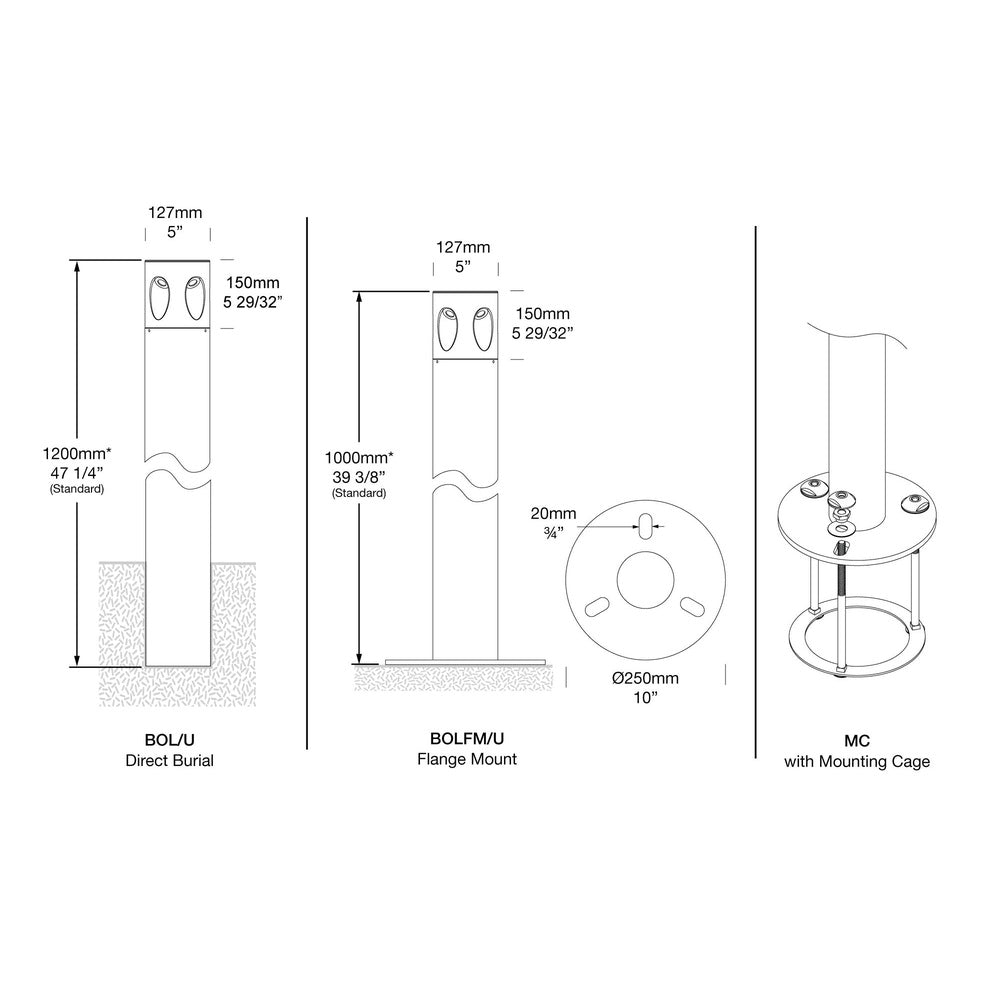

Dimensions Drawing

Fast & Easy Quote Request For Hunza Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

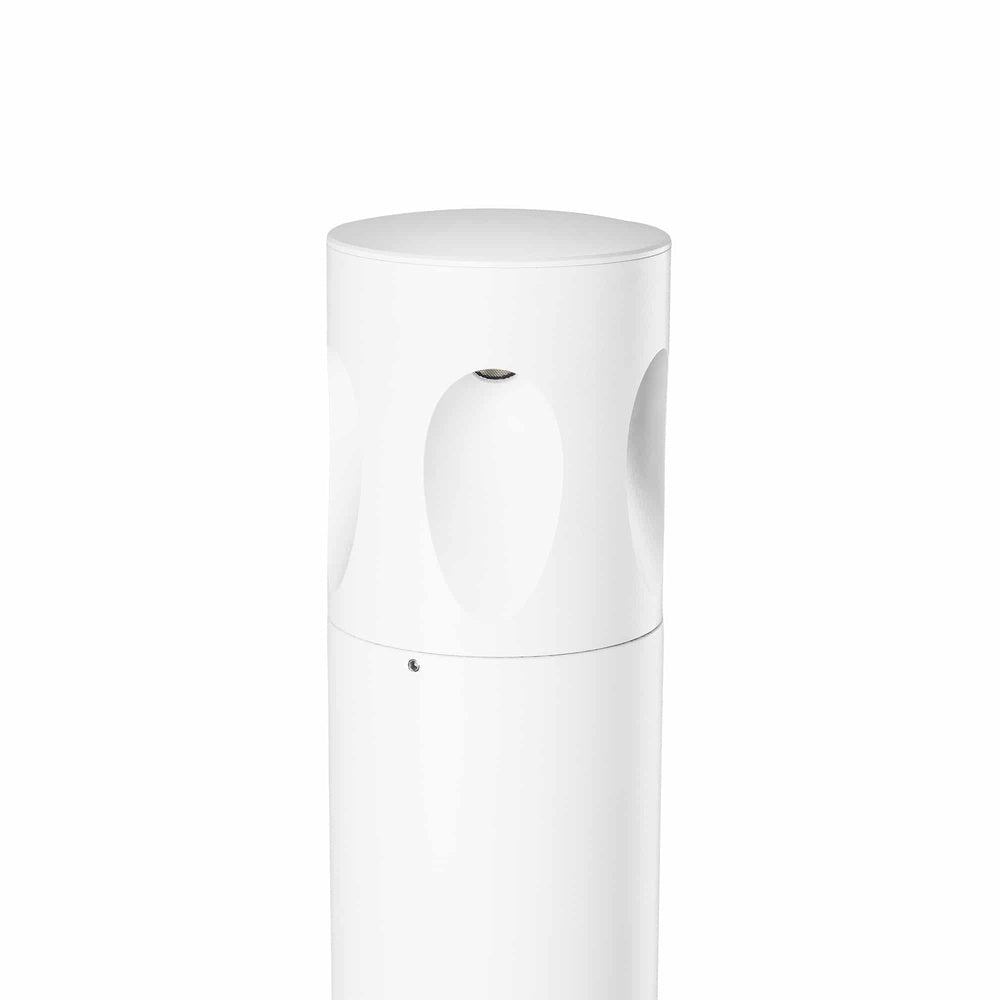

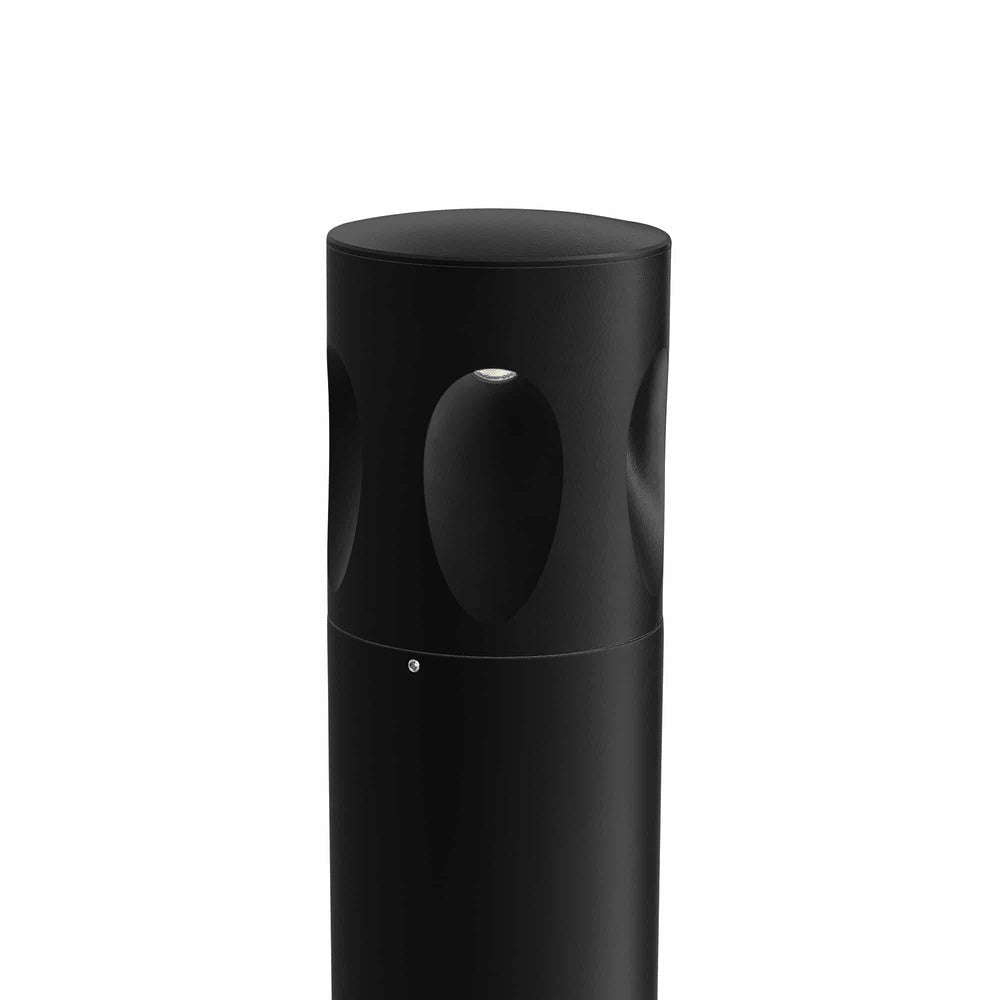

Hunza Direct Burial Ultra Bollard Light

The Ultra Bollard is ideal for commercial application for ground lighting on driveways, pathways and squares. It has a sleek and contemporary aesthetic that will enhance any architectural setting. This luminaire features multiple facets that cast a 5-petal pattern and low glare downward illumination. The light pattern is dependent on the beam angle specified.

Product Specifications

Lumen Output*
  • 1200 lumens @ 1050mA (15 Watts)
Lumens Per Watt (lm/W)*
*Delivered from the Luminaire with an unobstructed beam.
  • 80 lm/W
Luminaire Options
  • Ultra Bollard - Direct Burial
Warranty
  • *Excludes third party lamps and power supplies*
  • Aluminium Components - 5 years
  • Electronics - 5 Years
Power Options
  • 1050mA CC Input - Series Wired - Remote Driver 15Vf 15.8W
  • 110-277 VAC - Retro Integral Driver 15.8W
Mounting Options
  • with Mounting Cage*
LED
  • 2x Cree® XPG-3 Plug and Play field replaceable LED boards
LED Life Expectancy
  • 50,000 Hrs @ L70
CRI
  • 85+ Optional
Ingress Protection
  • IP66
Materials
  • Solid Powder Coated Aluminium
Standards
  • IEC/BS/AS/NZ 60598
  • UL 1598
Recommended Power Supplies
  • Driver Supplied for Series Remote Wired (CC format)
  • No Driver Required for Retro™ R ( 120/240V Input )
Product Files

Click for Ultra Bollard - BOL-U - Specification Sheet

Click for Ultra Bollard - BOL-U - Product Diagram

Click for Ultra Bollard - BOL-U - Installation Instructions USA

Click for Guide: Flange Mount Template and Mounting Cage

Click for Ultra Bollard - BOL-U - Installation Instructions International

Click for Ultra Bollard - BOL-U - Product Flyer

Diagram Image
