Invue Lighting CCW ClearCurve Wall Lights

Invue Lighting CCW ClearCurve Wall Lights

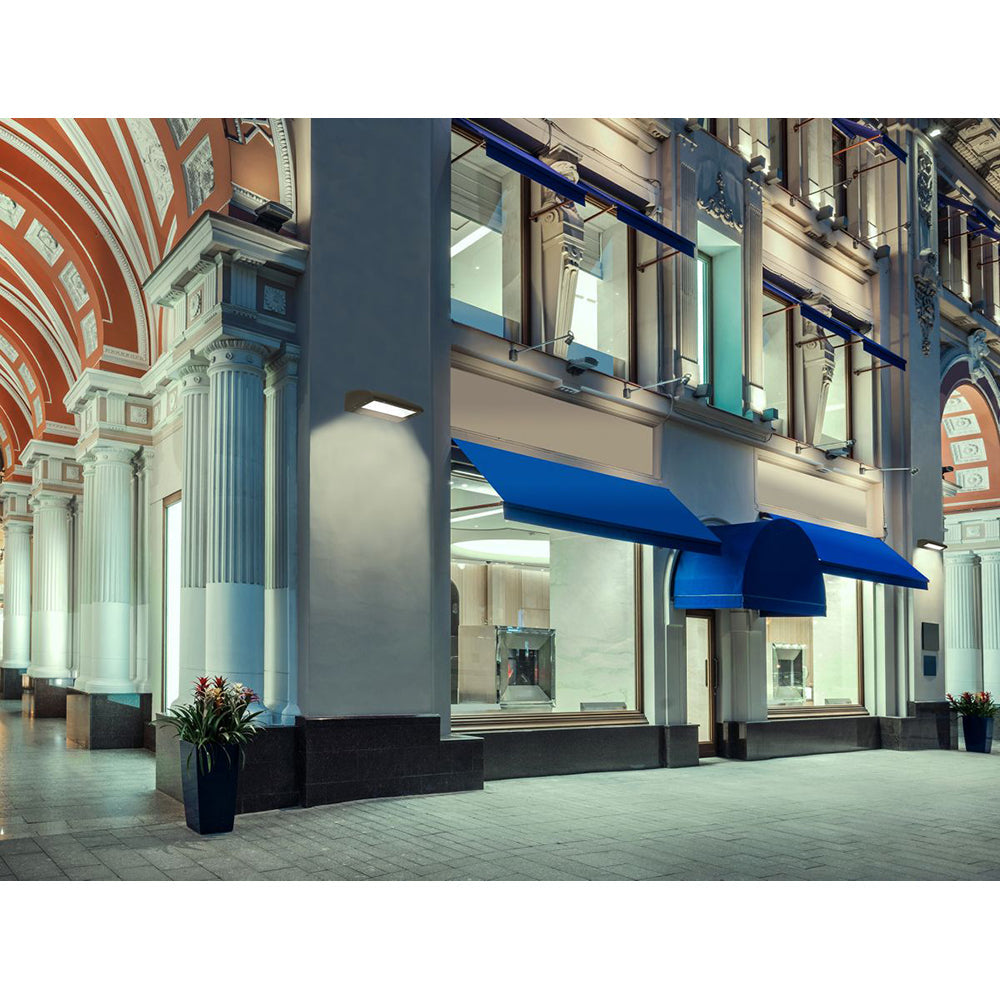

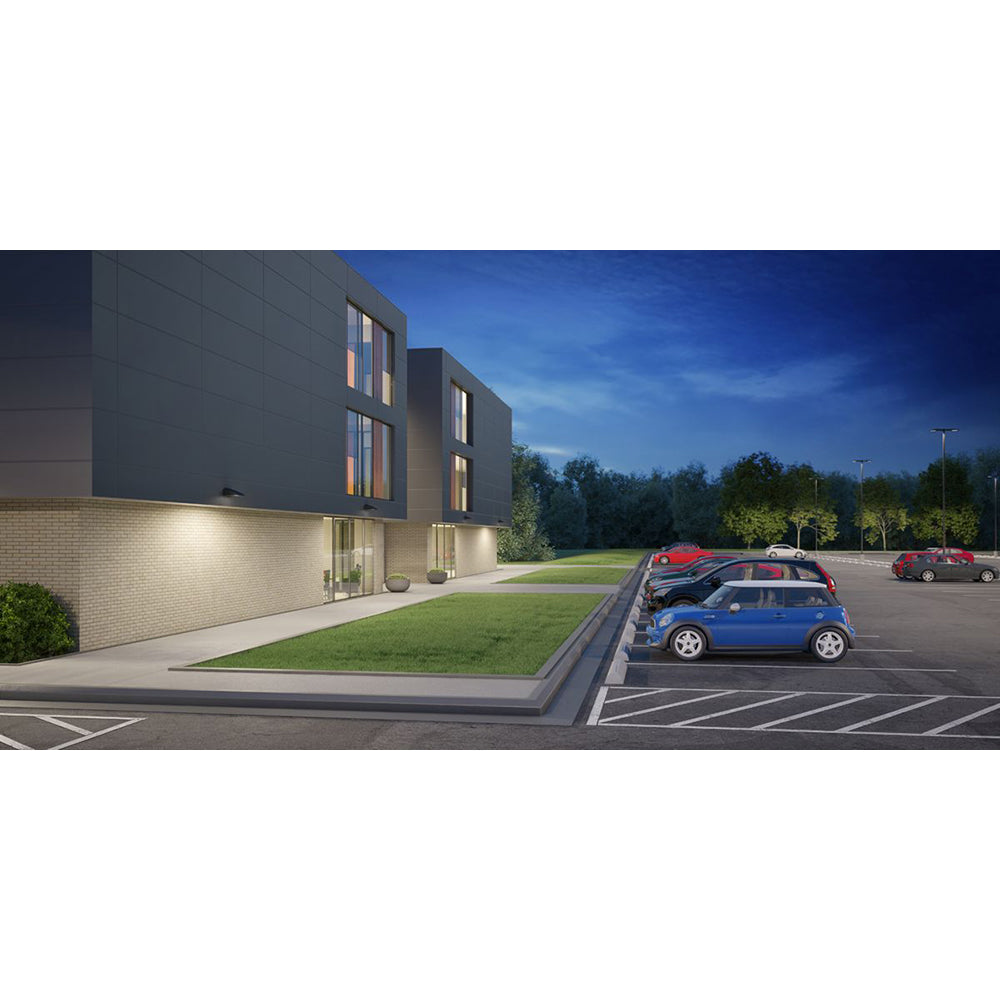

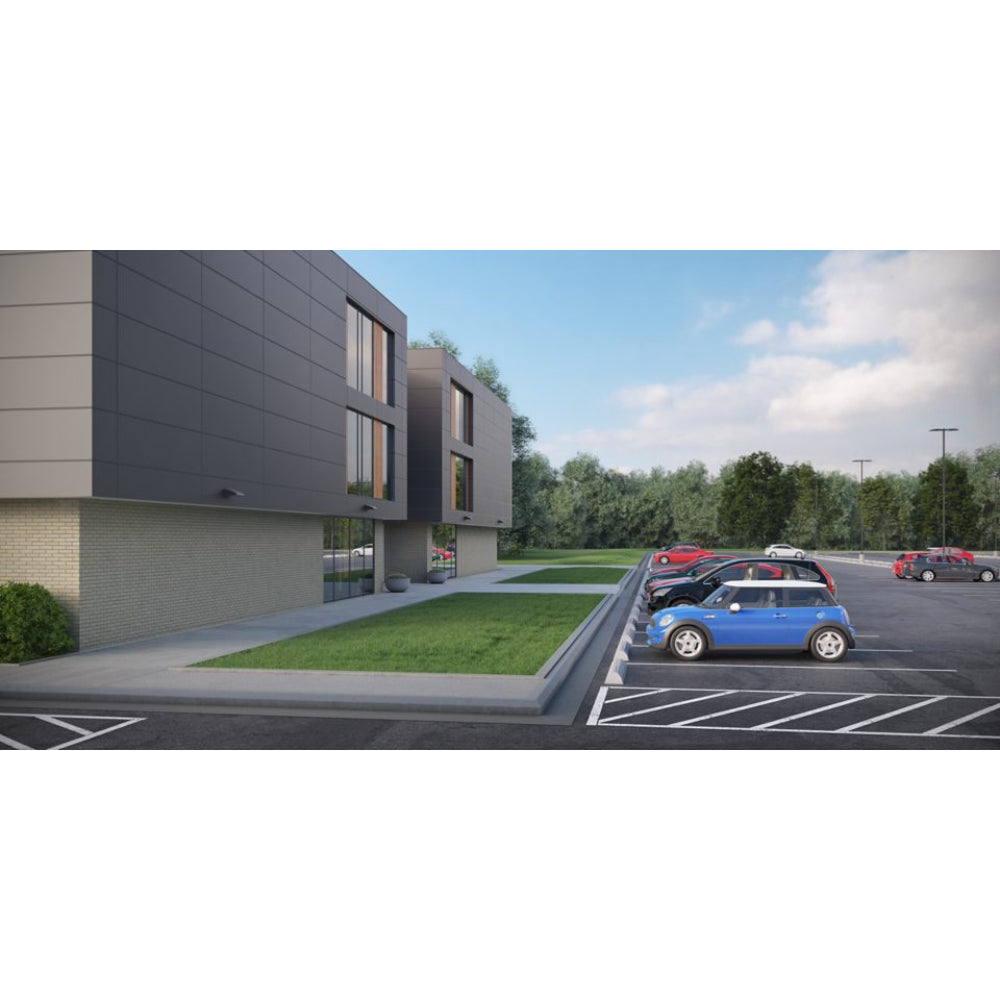

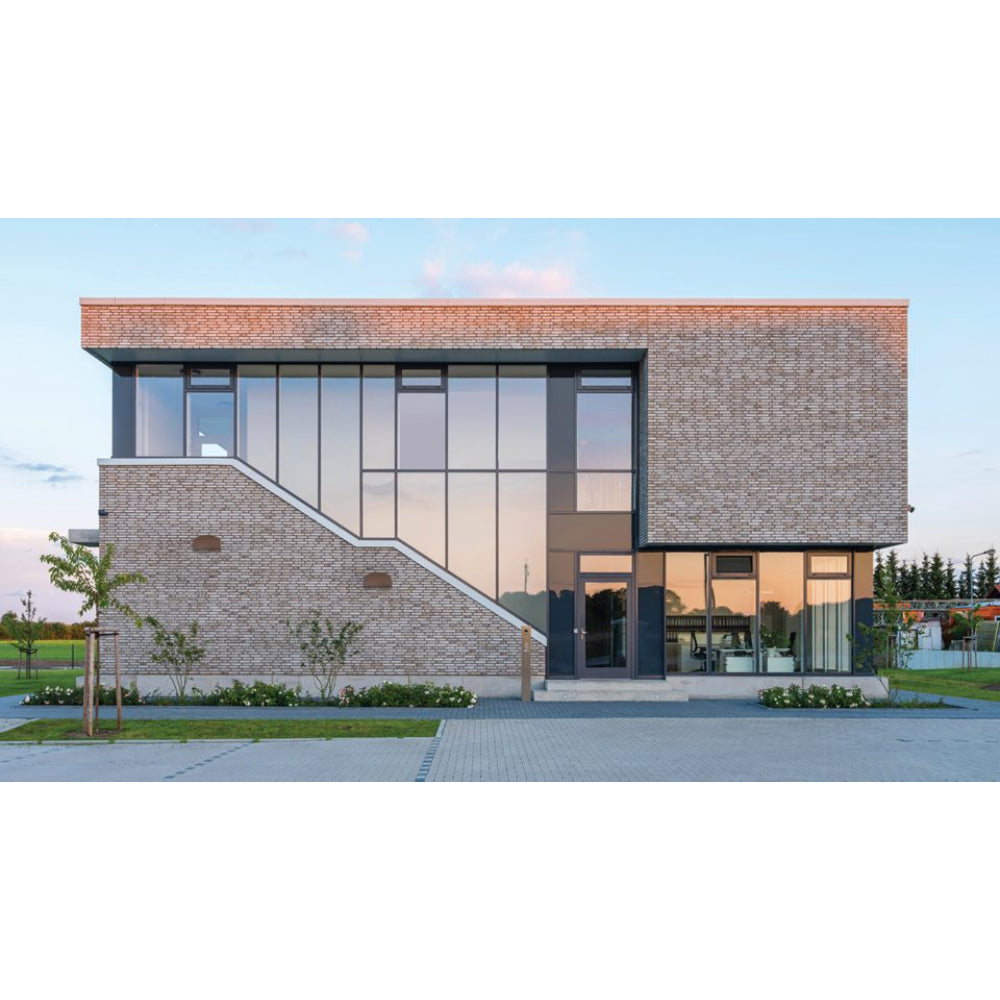

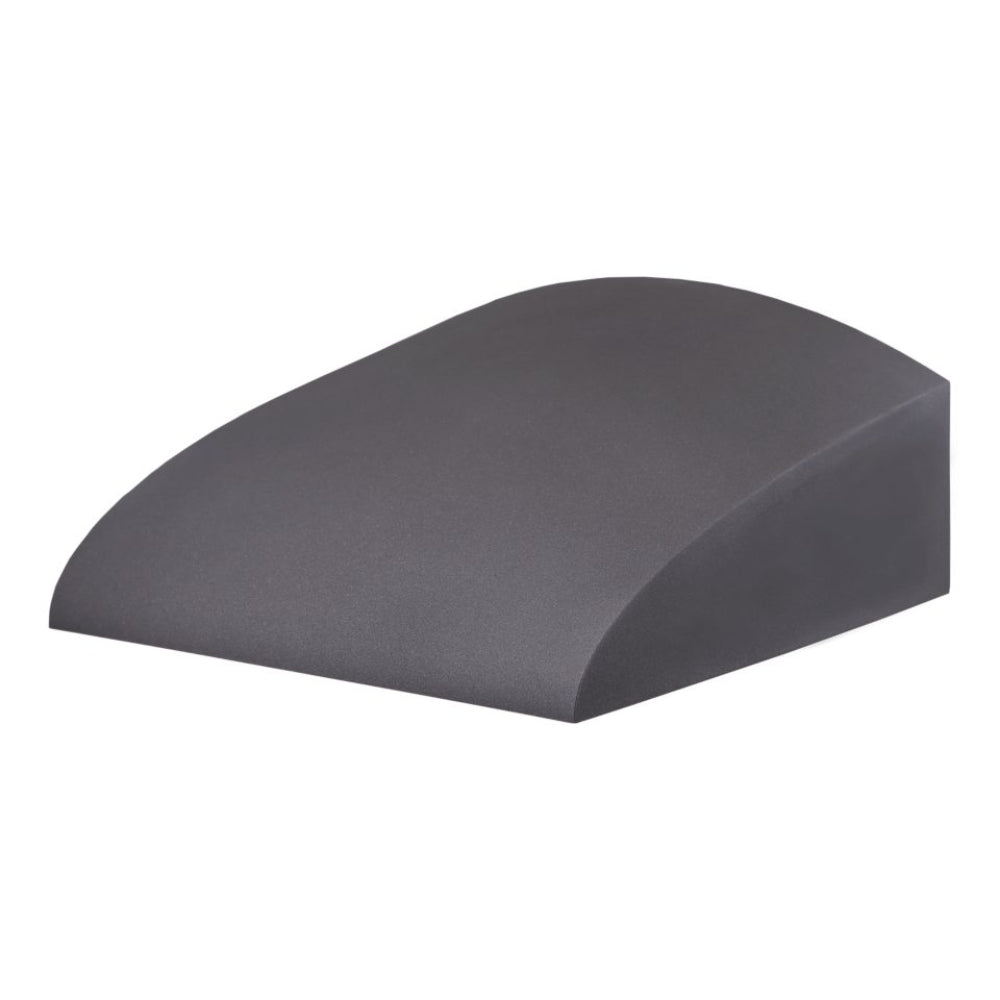

The Invue ClearCurve wall mount luminare is Simple in Form, Rich in Features. The design cues of the ClearCurve integrate elegantly into modern day architecture, enhancing the experience with a visually attractive design enabling a uniform modern architectural space across many applications.

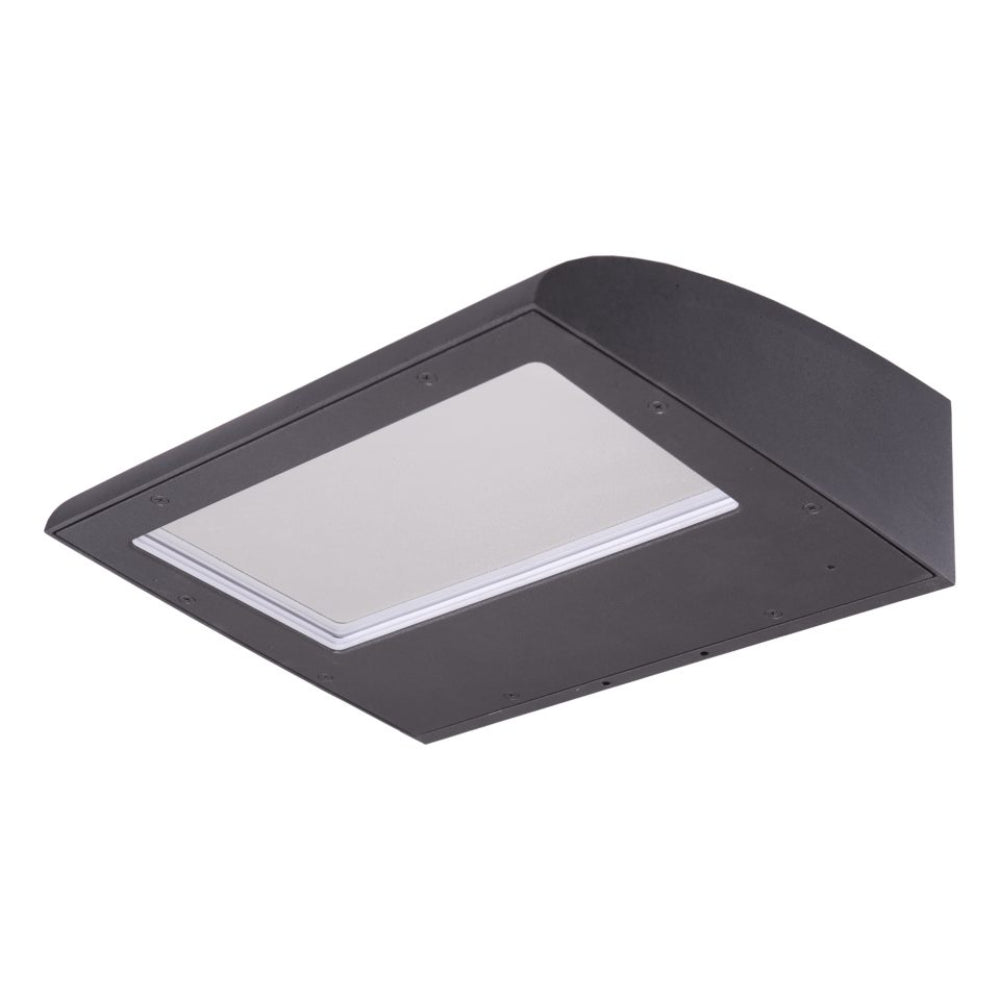

• Available in Visual Comfort or Discrete optics configurations
• Lumen packages from 1,600 to 12,000 lumens (18W - 116W)
• Efficacy up to 149 lumens per watt
• 4 WaveStream visual comfort distributions (T2, T3, T4FT, T4W)

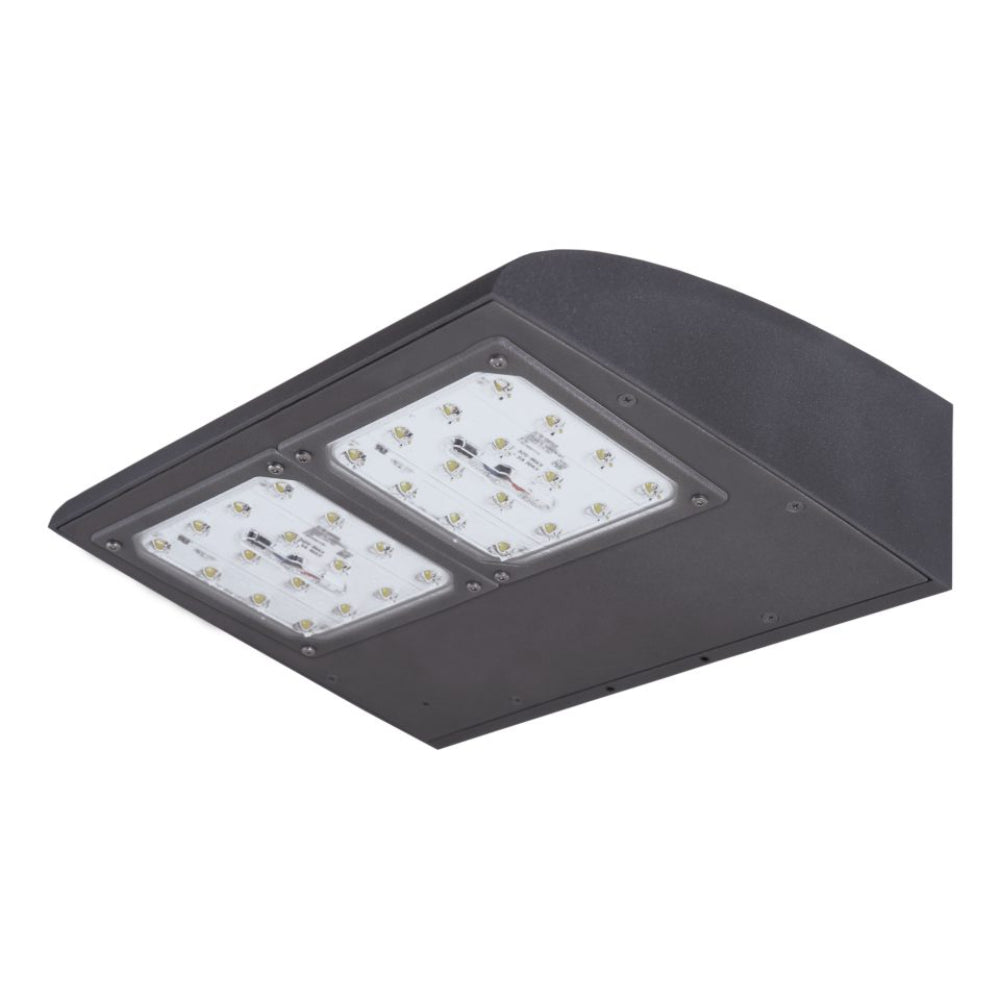

• 9 LightSquare distributions (1 or 2 square configurations)
• 11 color temperature options
• UL listed for -40-degree C to 50-degree C
• Standard & cold weather battery packs or emergency transfer switches
• WaveLinx capable
• Door serves as a power tray

Product Files

Click for Invue ClearCurve Wall Lumen Tables

Click for Invue ClearCurve Wall Specification Sheet

Click for Invue CCW ClearCurve Wall Brochure

Click for Invue ClearCurve Installation Instructions

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square House Side Shield (HSS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Glare Reduction Shield (GRS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Perimeter Fence Shield (PFS)

Click for Outdoor Field Rotatable Optics Installation Instruction Sheet

Click for Invue ClearCurve Wall Features and Benefits

Click for After Hours Dim Supplemental Guide
