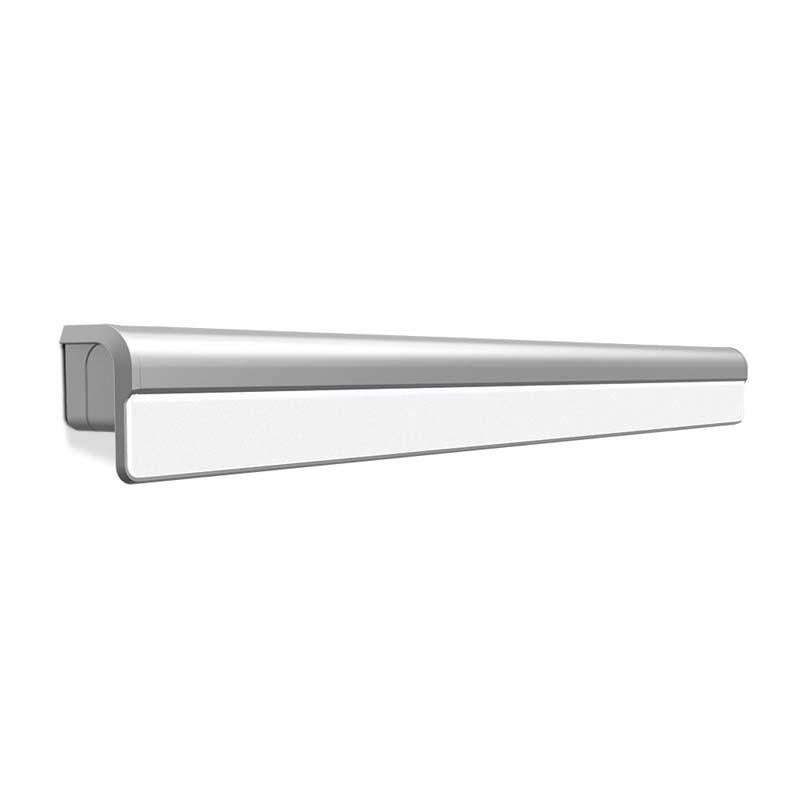

Ledalite ModiFly Linear Wall Washer
Products List
| Products | Watts | Lumen | Kelvin |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 80CRI, 5000 K MF0WL85035WN04 | 27.4 | 35004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 80CRI, 4000 K MF0WL84035WN04 | 27.4 | 35004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 80CRI, 3500 K MF0WL83535WN04 | 27.4 | 35004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 80CRI, 3000 K MF0WL83035WN04 | 27.4 | 35004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 80CRI, 2700 K MF0WL82735WN04 | 27.4 | 35004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 3500lm/4ft, 90CRI, 3500 K MF0WL93535WN04 | 33 | 35004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 80CRI, 5000 K MF0WL85030WN04 | 23.5 | 30004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 80CRI, 4000 K MF0WL84030WN04 | 23.5 | 30004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 80CRI, 3500 K MF0WL83530WN04 | 23.5 | 30004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 80CRI, 3000 K MF0WL83030WN04 | 23.5 | 30004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 80CRI, 2700 K MF0WL82730WN04 | 23.5 | 30004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 3000lm/4ft, 90CRI, 3500 K MF0WL93530WN04 | 28.3 | 30004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 80CRI, 5000 K MF0WL85025WN04 | 19.3 | 25004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 80CRI, 4000 K MF0WL84025WN04 | 19.3 | 25004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 80CRI, 3500 K MF0WL83525WN04 | 19.3 | 25004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 80CRI, 3000 K MF0WL83025WN04 | 19.3 | 25004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 80CRI, 2700 K MF0WL82725WN04 | 19.3 | 25004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 2500lm/4ft, 90CRI, 3500 K MF0WL93525WN04 | 23.6 | 25004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 80CRI, 5000 K MF0WL85020WN04 | 15.7 | 20004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 80CRI, 4000 K MF0WL84020WN04 | 15.7 | 20004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 80CRI, 3500 K MF0WL83520WN04 | 15.7 | 20004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 80CRI, 3000 K MF0WL83020WN04 | 15.7 | 20004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 80CRI, 2700 K MF0WL82720WN04 | 15.7 | 20004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 2000lm/4ft, 90CRI, 3500 K MF0WL93520WN04 | 18.6 | 20004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 80CRI, 5000 K MF0WL85015WN04 | 12.1 | 15004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 80CRI, 4000 K MF0WL84015WN04 | 12.1 | 15004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 80CRI, 3500 K MF0WL83515WN04 | 12.1 | 15004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 80CRI, 3000 K MF0WL83015WN04 | 12.1 | 15004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 80CRI, 2700 K MF0WL82715WN04 | 12.1 | 15004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 1500lm/4ft, 90CRI, 3500 K MF0WL93515WN04 | 14.6 | 15004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 80CRI, 5000 K MF0WL85010WN04 | 9 | 10004 | 5000 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 80CRI, 4000 K MF0WL84010WN04 | 9 | 10004 | 4000 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 80CRI, 3500 K MF0WL83510WN04 | 9 | 10004 | 3500 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 80CRI, 3000 K MF0WL83010WN04 | 9 | 10004 | 3000 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 80CRI, 2700 K MF0WL82710WN04 | 9 | 10004 | 2700 |
| ModiFly wall, Asym. Vertical Light Guide, 1000lm/4ft, 90CRI, 3500 K MF0WL93510WN04 | 10.5 | 10004 | 3500 |
Product family information

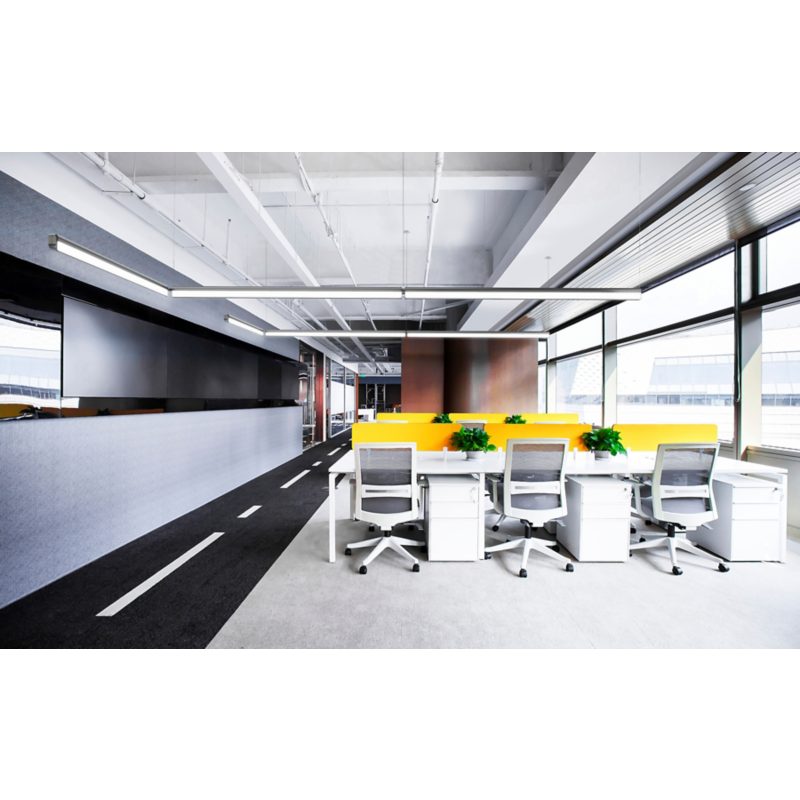

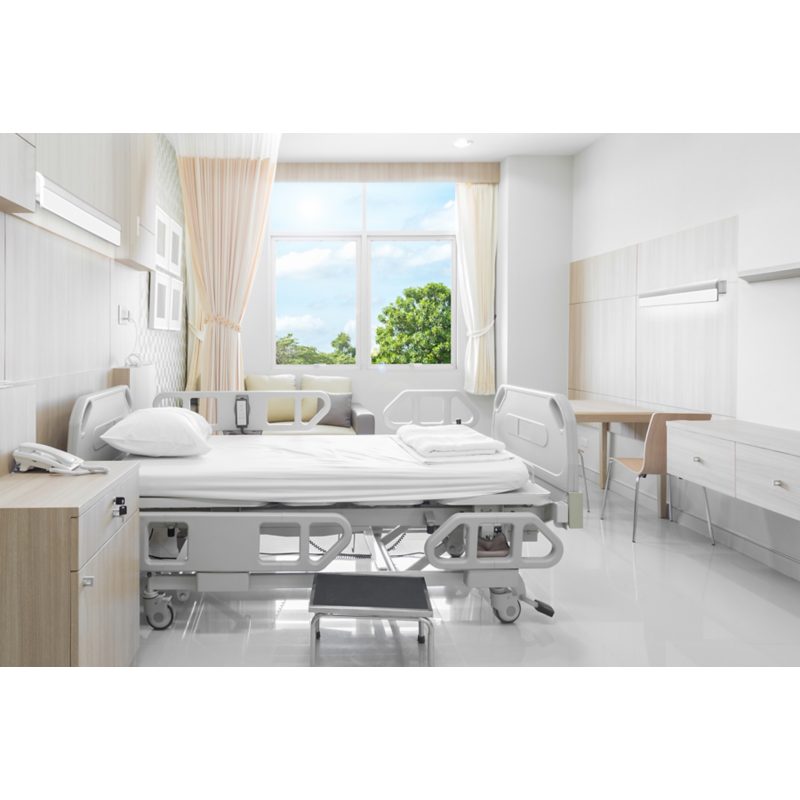

Simple, yet sophisticated, both ModiFly suspended and wall mount luminaires have a style that lends itself perfectly for a variety of spaces including open offices, education, retail, and healthcare environments where visual comfort and design continuity are essential.
Benefits
- Seamlessly transition from wall mount to suspended luminaires using bi, tri and quad links
- Fully articulating Bi-Link, Tri-Link & Quad-Link joints give you unlimited design options
- Added array of LEDs along luminaire underside for uniform wallside illumination
- ADA compliant with slim 4.5"x2.8" wall mount housing
- Vertical Light Guide technology produces a controlled batwing distribution with 80% downlight
- Select configurations contribute toward satisfying features L04 and L07 under the WELL Building Standard
- For offices, schools, healthcare, and hospitality environments
Features
- Available in 2ft, 4ft, 5ft, 6ft & 8ft linear lengths
- Multiple drivers and systems to choose from including 0-10V, PoE, Tunable White & Lutron
- Choose from 6 standard paint finishes, including new Hero Gold, Silver Nova & Venom Black
- Seven lumen packages ranging from 1500lm/4ft to 3500lm/4ft in 500lm steps
Applications
- Office
- Hospitality
- Education
- Banks
- Fashion
