Lightolier Alcyon LED Vertical
Product Name | SKU | Watts | Lumens | Kelvin |
---|---|---|---|---|
Alcyon LED Vertical 10W / 600lm \u0026 15W / 1000lm Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Aluminum | LLAV11AHAL | |||
Alcyon LED Vertical 10W / 600lm \u0026 15W / 1000lm Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Matte Black | LLAV11AHBK | |||
Alcyon LED Vertical 10W / 600lm \u0026 15W / 1000lm Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Matte White | LLAV11AHWH | |||
Alcyon LED Vertical 600/1000 \u0026 2000lm Cylinder, Track \u0026 Recessed Lighting, Flood Reflector | LLAV11RF | |||
Alcyon LED Vertical 600/1000 \u0026 2000lm Cylinder, Track \u0026 Recessed Lighting, Narrow Flood Reflector | LLAV11RNF | |||
Alcyon LED Vertical 600/1000 \u0026 2000lm Cylinder, Track \u0026 Recessed Lighting, Narrow Spot Reflector | LLAV11RNS | |||
Alcyon LED Vertical 600/1000 \u0026 2000lm Cylinder, Track \u0026 Recessed Lighting, Spot Reflector | LLAV11RS | |||
Alcyon LED Vertical 32W Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Aluminum | LLAV12AHAL | |||
Alcyon LED Vertical 32W Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Matte Black | LLAV12AHBK | |||
Alcyon LED Vertical 32W Cylinder, Track \u0026 Recessed Lighting, Acessory Holder, Matte White | LLAV12AHWH | |||
Alcyon LED Vertical 2000lm Cylinder, Track \u0026 Recessed Lighting, Flood Reflector | LLAV12RF | |||
Alcyon LED Vertical 2000lm Cylinder, Track \u0026 Recessed Lighting, Narrow Flood Reflector | LLAV12RNF | |||
Alcyon LED Vertical 2000lm Cylinder, Track \u0026 Recessed Lighting, Narrow Spot Reflector | LLAV12RNS | |||
Alcyon LED Vertical 2000lm Cylinder, Track \u0026 Recessed Lighting, Spot Reflector | LLAV12RS | |||
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 2700K, Aluminum | LLAV0127AL | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 3000K, Aluminum | LLAV0130AL | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 4000K, Aluminum | LLAV0140AL | 9 | 900 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 2700K, Aluminum | LLAV1127AL | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 3000K, Aluminum | LLAV1130AL | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 4000K, Aluminum | LLAV1140AL | 14 | 1300 | 3000 |
Alcyon Vert 600lm 90CRI 2700K White | LLAV01927WH | 9 | 900 | 2700 |
Alcyon Vert 600lm 90CRI 3000K White CrispWhite | LLAV01930WHCW | 9 | 900 | 3000 |
Alcyon Vert 1000lm 90CRI 2700K White | LLAV11927WH | 14 | 1300 | 2700 |
Alcyon Vert 1000lm 90CRI 3000K White CrispWhite | LLAV11930WHCW | 14 | 1300 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 2700K, Matte Black | LLAV0127BK | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 3000K, Matte Black | LLAV0130BK | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 4000K, Matte Black | LLAV0140BK | 9 | 900 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 2700K, Matte Black | LLAV1127BK | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 3000K, Matte Black | LLAV1130BK | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 4000K, Matte Black | LLAV1140BK | 14 | 1300 | 3000 |
Alcyon Vert 600lm 90CRI 2700K Black | LLAV01927BK | 9 | 900 | 2700 |
Alcyon Vert 600lm 90CRI 3000K Black CrispWhite | LLAV01930BKCW | 9 | 900 | 3000 |
Alcyon Vert 1000lm 90CRI 2700K Black | LLAV11927BK | 14 | 1300 | 2700 |
Alcyon Vert 1000lm 90CRI 3000K Black CrispWhite | LLAV11930BKCW | 14 | 1300 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 2700K, Matte White | LLAV0127WH | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 3000K, Matte White | LLAV0130WH | 9 | 900 | 3000 |
Alcyon LED Vertical 10W Cylinder (LLAV01), Track Lighting, 4000K, Matte White | LLAV0140WH | 9 | 900 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 2700K, Matte White | LLAV1127WH | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 3000K, Matte White | LLAV1130WH | 14 | 1300 | 3000 |
Alcyon LED Vertical 15W / 1000lm Cylinder (LLAV11), Track Lighting, 4000K, Matte White | LLAV1140WH | 14 | 1300 | 3000 |
Alcyon Vert 600lm 90CRI 2700K Aluminum | LLAV01927AL | 9 | 900 | 2700 |
Alcyon Vert 600lm 90CRI 3000K Aluminum CrispWhite | LLAV01930ALCW | 9 | 900 | 3000 |
Alcyon Vert 1000lm 90CRI 2700K Aluminum | LLAV11927AL | 14 | 1300 | 2700 |
Alcyon Vert 1000lm 90CRI 3000K Aluminum CrispWhite | LLAV11930ALCW | 14 | 1300 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 2700K, Aluminum | LLAV2027AL | 21 | 2000 | 2700 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 3000K, Aluminum | LLAV2030AL | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 3000K, White | LLAV2030WH | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 4000K, Aluminum | LLAV2040AL | 21 | 2000 | 4000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 4000K, White | LLAV2040WH | 21 | 2000 | 4000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 2700K, Aluminum | LLAV20927AL | 21 | 2000 | 2700 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 2700K, White | LLAV20927WH | 21 | 2000 | 2700 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Tracal Lighting, 3000K, AL, CrispWhite | LLAV20930ALCW | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Tracwh Lighting, 3000K, WH, CrispWhite | LLAV20930WHCW | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 2700K, Black | LLAV2027BK | 21 | 2000 | 2700 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 3000K, Black | LLAV2030BK | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 4000K, Black | LLAV2040BK | 21 | 2000 | 4000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track Lighting, 2700K, Black | LLAV20927BK | 21 | 2000 | 2700 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Tracbk Lighting, 3000K, BK,CrispWhite | LLAV20930BKCW | 21 | 2000 | 3000 |
Alcyon LED Vertical 2000lm Cylinder (LLAV20), Track - Lighting, 2700K, White | LLAV2027WH | 21 | 2000 | 2700 |
Alcyon Vert. 3000lm 80 CRI 2700K - WH | LLAV3027WH | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 80 CRI 3000K WH | LLAV3030WH | 34 | 3000 | 3000 |
Alcyon Vert. 3000lm 80 CRI 4000K WH | LLAV3040WH | 34 | 3000 | 4000 |
Alcyon Vert. 3000lm 90 CRI 2700K WH | LLAV30927WH | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 90 CRI 3000K WH CrispWhite | LLAV30930WHCW | 34 | 3000 | 3000 |
Alcyon Vert. 3000lm 80 CRI 2700K BK | LLAV3027BK | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 80 CRI 3000K BK | LLAV3030BK | 34 | 3000 | 3000 |
Alcyon Vert. 3000lm 80 CRI 4000K BK | LLAV3040BK | 34 | 3000 | 4000 |
Alcyon Vert. 3000lm 90 CRI 2700K BK | LLAV30927BK | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 90 CRI 3000K BK CrispWhite | LLAV30930BKCW | 34 | 3000 | 3000 |
Alcyon Vert. 3000lm 80 CRI 2700K AL | LLAV3027AL | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 80 CRI 3000K AL | LLAV3030AL | 34 | 3000 | 3000 |
Alcyon Vert. 3000lm 80 CRI 4000K AL | LLAV3040AL | 34 | 3000 | 4000 |
Alcyon Vert. 3000lm 90 CRI 2700K AL | LLAV30927AL | 34 | 3000 | 2700 |
Alcyon Vert. 3000lm 90 CRI 3000K AL CrispWhite | LLAV30930ALCW | 34 | 3000 | 3000 |
Product Family Details
Alcyon LED Vertical is a single-optic LED platform designed with a balance of form, function and visual comfort. It's complete flexibility in lumen output and beam angles allow for optimal lighting designs including extremely tight accent applications. It's industry leading efficacy and candlepower levels offers customers a low energy consumption solution that provides maximum light output at minimum watts per square foot to meet the latest ASHRAE codes. For added flexibility, the interchangeable reflectors along with the widest range of accessories help designers customize the light output to create the perfect environment.
Benefits
- Light quality consistency, specifically designed for retailers
- Market leading efficiency and "candlepower punch"
- Integrated "invisible" heat sink, designed with a passive cooling methodology
Features
- Lumens: 600, 1000, 2000, and 3000
- 1000 lm 10° Narrow Spot delivers more than 24,000 CBCP for excellent punch

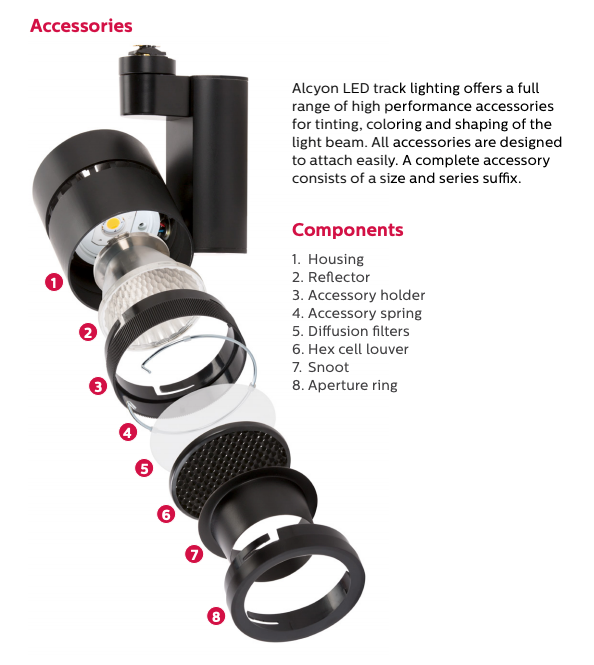

- Reflectors: Narrow Spot, Spot, Narrow Flood and Flood beams
- Trailing edge (ELV) dimming
Applications
- Fashion
- Food and Large Retailers
- Office
- Banks
- Hospitality
**Made to order items. NO RETURNS ACCEPTED**
