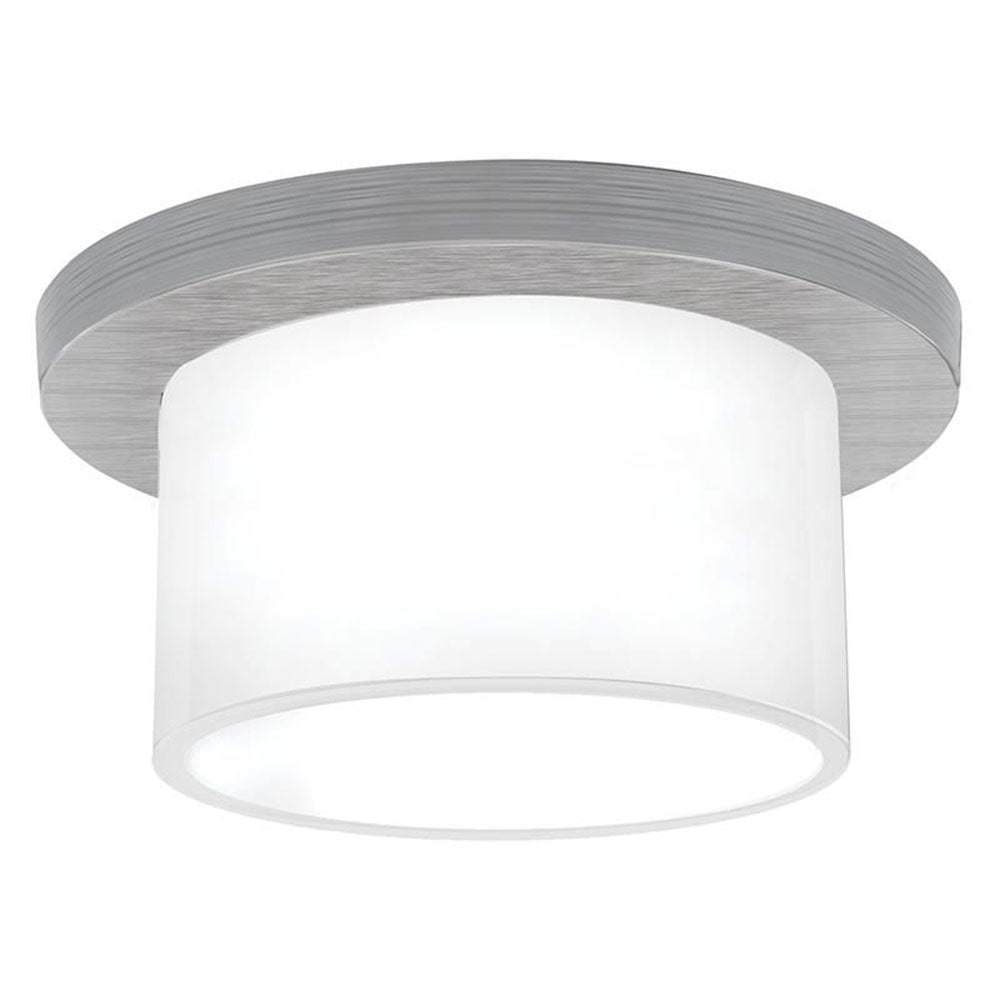

Lightolier D4A04 Vetro Downlight Elements Vetro Downlight Kit 4"


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Lightolier Lighting (Signify)

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Lightolier D4A04 Vetro Downlight Elements Vetro Downlight Kit 4"

Add detail and style to any space with the Vetro accents and Calculite 4" LED downlights.

Complete luminaire = Frame + Trim or Micro Vetro (optional) + Installation Accessories (if required)

Features

  • Decorative element: (01) Solid high temp, UV resistant composite with open aperture, frosted interior diameter and polished exterior. Satin aluminum ring is mechanically inserted in composite to create drama and intrigue in the element. (02) Solid high temp, UV resistant composite with open aperture, frosted interior diameter and polished exterior. Machined facet along bottom edge. (03) Angled hand blown triplex glass carefully proportioned to each aperture size. Glass is gently and evenly illuminated for clean brightness recognition. (04) Cylindrical hand blown triplex glass carefully proportioned to each aperture size. Glass is gently and evenly illuminated for clean brightness recognition.
  • Die cast construction ring: Exterior edge of construction ring is visible, satin aluminum finish matches diameter of decorative element for a flangeless appearance. Aluminum die cast finish ring with crisp 90° edges conceals all fasteners for a clean finished appearance.
  • Integral reflector: 16 ga. aluminum, 50° visual cutoff to lamp and lamp image. Decorative Element is mechanically attached to reflector via die cast ring. Reflector is specular clear for best performance and aesthetics.
  • Reflector: Specified separately. Flangeless trim required. Use specular clear (CL) finish for best performance and aesthetics.
  • Frame-in kit: Specified separately. See framein kit specification sheet for details.

Mechanical

Decorative element are mechanically secured to the die cast construction ring and the integral reflector from the factory. Stamped aluminum cover ring provided on top of decorative element to cover construction ring fasteners. Four #8-32 screws and 4 knurled die-cast thumb screws secure construction ring to frame in kit.

Labels

cULus Listed.

Suitable for damp locations.

Product Files

Click for D2L-Spec PDF

Click for D4A_Vetro_accessory.pdf

Click for D6A_Vetro_accessory.pdf

Click for Lightolier Comprehensive Catalog
