LSI Industries High Performance Flood PFL


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For LSI Industries Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

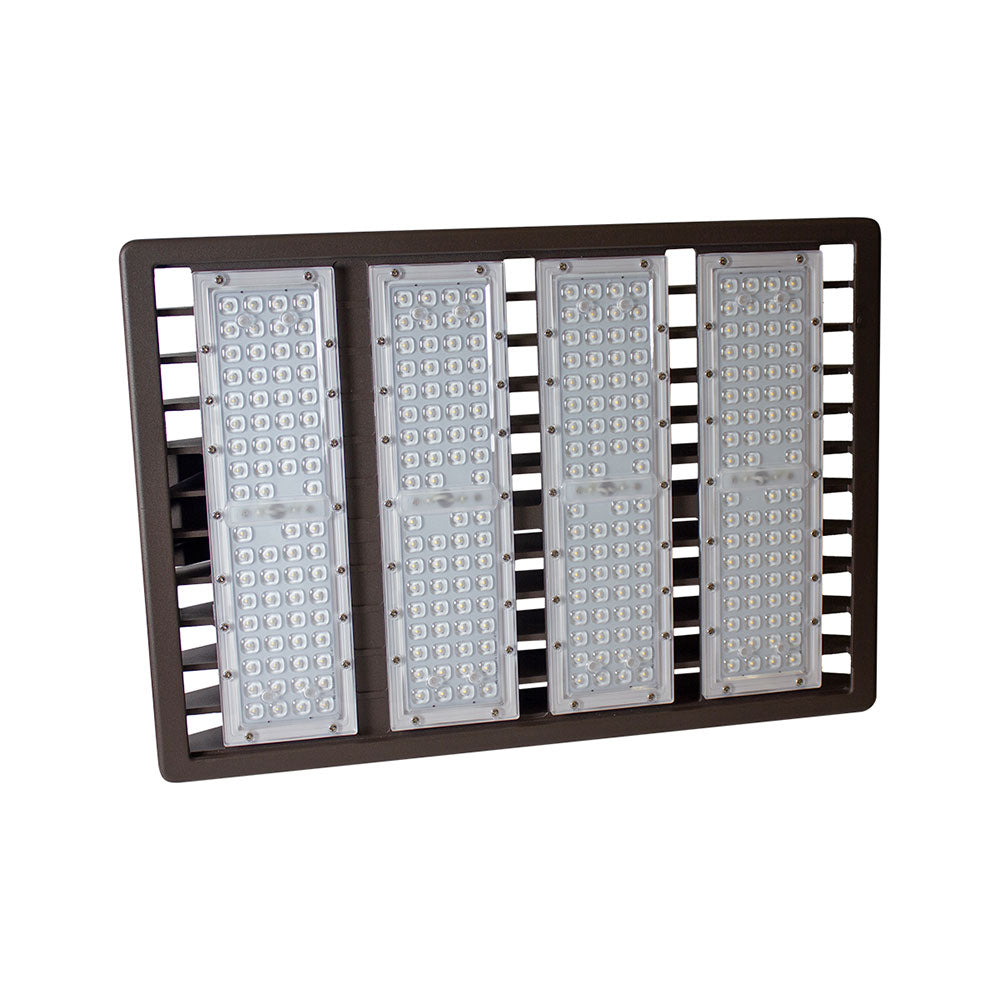

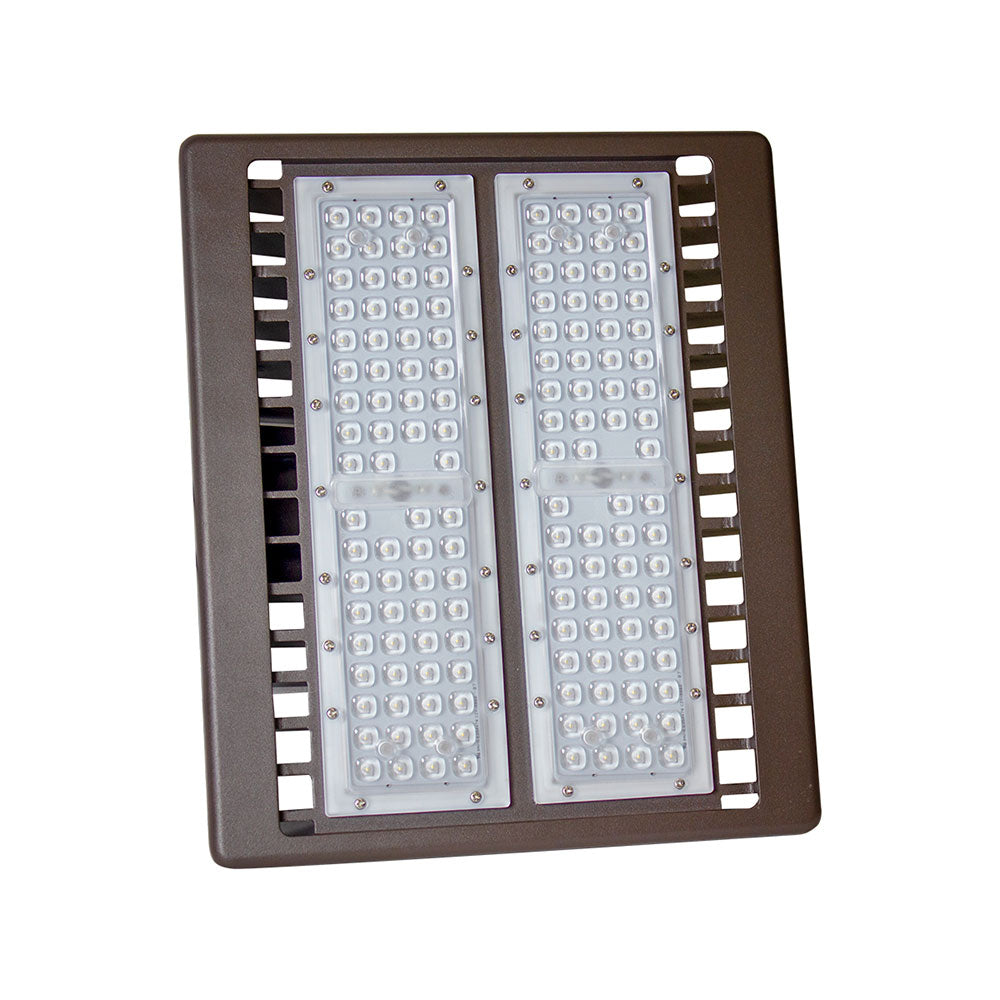

LSI Industries High Performance Flood PFL

The PFL is a high performance flood that is ideal for a wide variety of commercial applications such as parking areas, building facades, loading docks and general site lighting applications. Multiple distributions, mounting options, color temperatures and lumen packages provide flexibility to meet most specifications. The high-performance driver features over-voltage, under voltage, short-circuit and over-temperature protection and external aiming adjustability. With easy installation in new construction or retrofit applications, it has a minimum of 60,000 hours to 100,000 hours expected life. This product has a 5-year warranty.

Features & Specifications

Die cast-aluminum housing with an IP66 rating to protect internal components from harsh environmental conditions.

Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test.

Four flood distributions Narrow (3 x 3), Medium (4 x 4), Wide (6 x 6) and Very Wide (7 x 7) .

120-277 and 347-480V operation.

Slip-fitter mount provides attachment to 2 3/8" O.D. tenon). Trunnion and Yoke Mount provide secure attachment to flat surfaces.

Operating temperature: -20°C to +45°C (-4°F to 113°C).

Optional glare shields (full & half) & wire guards are available.

Max Lumens

  • 42,000

Min Lumens

  • 11,000

Sensors

  • Photocell

Color Temperatures

  • 4000
  • 5000

Additional Options

QuickShip EligibleDLCDLC PremiumROHS CompliantIP65IP66DimmableUL ListedUL Listed Wet Location
Product Files

Click for PFL Sell Sheet

Click for PFL 12L and 16L Spec Sheet

Click for PFL 24L-42L Spec Sheet

Click for PFL Install Guide

Click for Flood Light Comparison Guide
