LSI Industries Lensed Strip SDL


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For LSI Industries Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

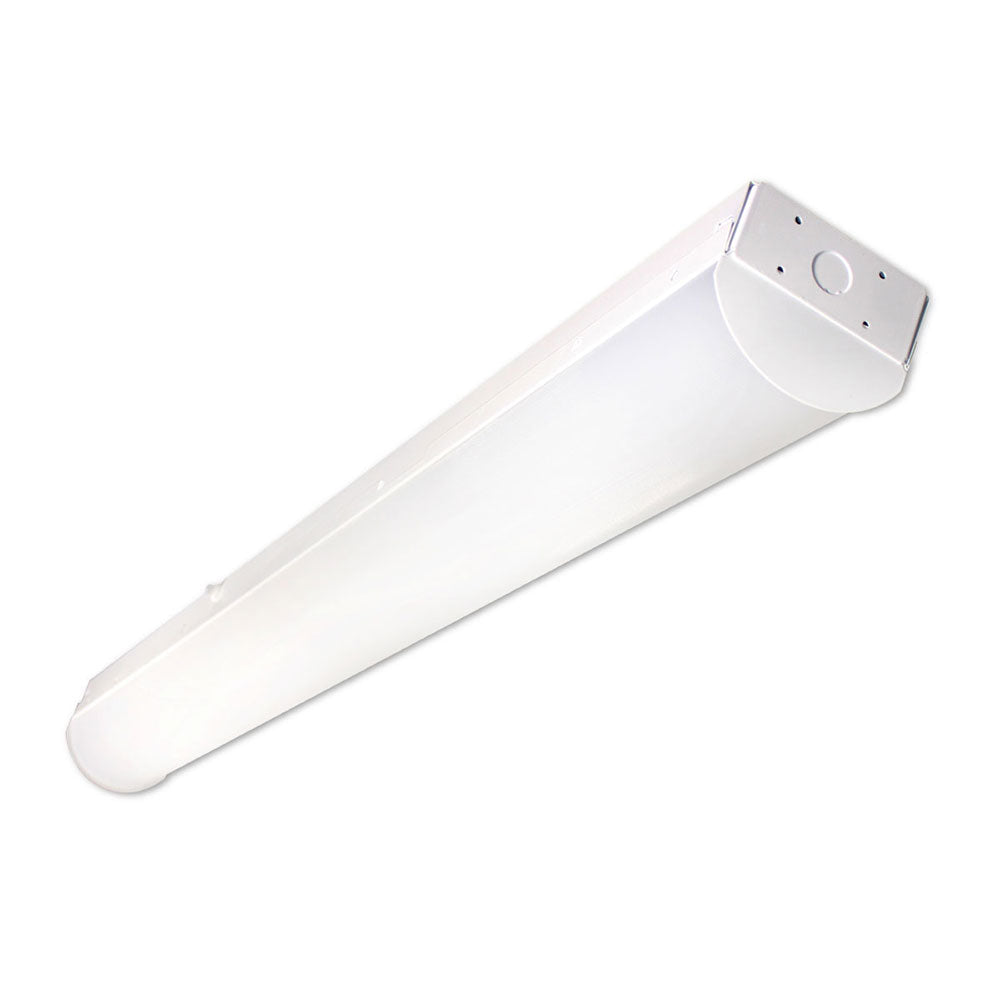

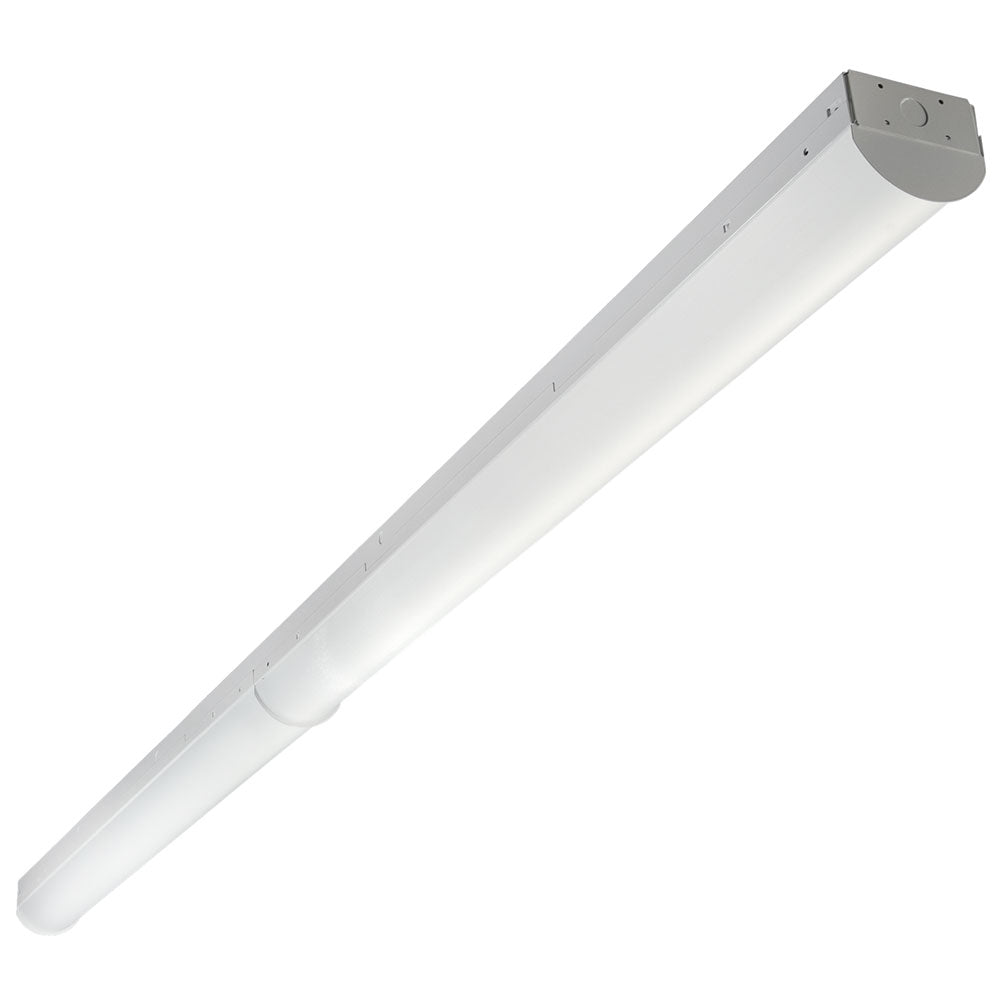

LSI Industries Lensed Strip SDL

The sleek architectural SDL is designed with tooless entry features saving time and money on installation. Optimizing Industry LED technology, the SDL series delivers unparalleled performance and efficiency meeting stringent energy requirements. The frosted lens delivers high vertical illumination offering 3000K, 3500K, 4000K and 5000K color temperatures. Innovative programmable drivers offer expansive lumen packages and comes standard with 0-10V dimming down to 1%. Designed with uncompromised aesthetics, the high-performance luminaire is well suited for commercial, industrial, retail and residential applications.

The SDL has an optimized performance and efficiency of up to 147 Lpw for the SDL model and 159 Lpw for the S model, a standard universal voltage (120-277V) driver and a 0 - 10V dimming to 1%. Also featuring: Surface, chain and pendant mount with choice of accessories for flexible installation. Available in 2, 4 and 8 product configurations, the SDL has optional factory installed pre-wired plug-in assembly for continuous rowand has a limited 5-year warranty.

Features & Specifications

  • Surface, chain, and pendant mount available
  • Optimal lumen efficiency above 147 Lpw
  • Available in 2', 4', and 8' lenths

Max Lumens

  • 18,000

Min Lumens

  • 1,000

Color Temperatures

  • 3000
  • 3500
  • 4000
  • 5000

Additional Options

DLCDLC PremiumBAA Compliant (Buy American Act)ARRA Funding CompliantDimmableUL ListedUL Listed Damp Location
Product Files

Click for SDL-S Flyer

Click for SDL Spec Sheet

Click for SDL and S Install Guide

Click for Industrial Comparison Guide

Click for Strip Lighting Guide
