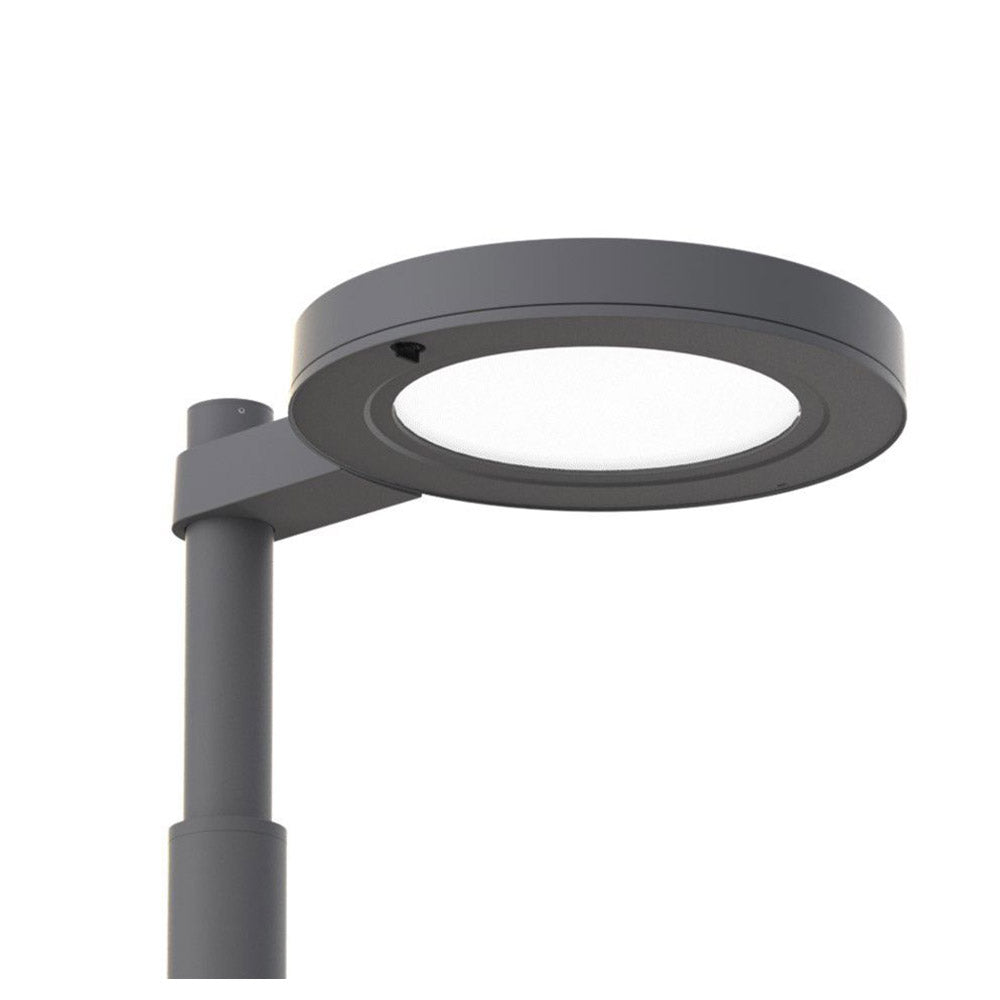

Lumec Lighting OmniScape LED Arm Mount (S-OSA)
Lumec Lighting OmniScape LED Arm Mount (S-OSA)
Roll over image to zoom in Click on image to zoom
Lumec Lighting OmniScape LED Arm Mount (S-OSA)Lumec Lighting OmniScape LED Arm Mount (S-OSA)

Lumec Lighting OmniScape LED Arm Mount (S-OSA)

Lumec LightingSKU: S-OSA
Price:
$0.00 USD

Fast & Easy Quote Request For Signify Lumec Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Lumec Lighting

Description

Lumec Lighting OmniScape LED Arm Mount (S-OSA)

Product List

Product Name Product SKU Wattage (W) Lumens (lm) CCT (K)
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 240mA, 70CRI, 2700K, Type II S-OSAx-15W40LED-727-G1-2F 14.3 2110 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 320mA, 70CRI, 2700K, Type II S-OSAx-20W40LED-727-G1-2F 19.1 2802 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 440mA, 70CRI, 2700K, Type II S-OSAx-30W40LED-727-G1-2F 26.8 3789 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 560mA, 70CRI, 2700K, Type II S-OSAx-35W40LED-727-G1-2F 34.1 4787 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 712mA, 70CRI, 2700K, Type II S-OSAx-45W40LED-727-G1-2F 43.7 6031 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 980mA, 70CRI, 2700K, Type II S-OSAx-65W40LED-727-G1-2F 63.2 8130 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1230mA, 70CRI, 2700K, Type II S-OSAx-80W40LED-727-G1-2F 79 9975 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1380mA, 70CRI, 2700K, Type II S-OSAx-90W40LED-727-G1-2F 89 11199 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1588mA, 70CRI, 2700K, Type II S-OSAx-105W40LED-727-G1-2F 103 12626 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1800mA, 70CRI, 2700K, Type II S-OSAx-120W40LED-727-G1-2F 118 14059 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 2100mA, 70CRI, 2700K, Type II S-OSAx-140W40LED-727-G1-2F 136 16072 2700
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 240mA, 70CRI, 3000K, Type II S-OSAx-15W40LED-730-G1-2F 14.3 2302 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 320mA, 70CRI, 3000K, Type II S-OSAx-20W40LED-730-G1-2F 19.1 3057 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 440mA, 70CRI, 3000K, Type II S-OSAx-30W40LED-730-G1-2F 26.8 4133 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 560mA, 70CRI, 3000K, Type II S-OSAx-35W40LED-730-G1-2F 34.1 5222 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 712mA, 70CRI, 3000K, Type II S-OSAx-45W40LED-730-G1-2F 43.7 6579 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 980mA, 70CRI, 3000K, Type II S-OSAx-65W40LED-730-G1-2F 63.2 8869 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1230mA, 70CRI, 3000K, Type II S-OSAx-80W40LED-730-G1-2F 79 10882 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1380mA, 70CRI, 3000K, Type II S-OSAx-90W40LED-730-G1-2F 89 12217 3000
OmniScape LED Arm Mount (S-OSAx) 40 LED with flat lens, 1588mA, 70CRI, 3000K, Type II S-OSAx-105W40LED-730-G1-2F 103 13774 3000

Product family information

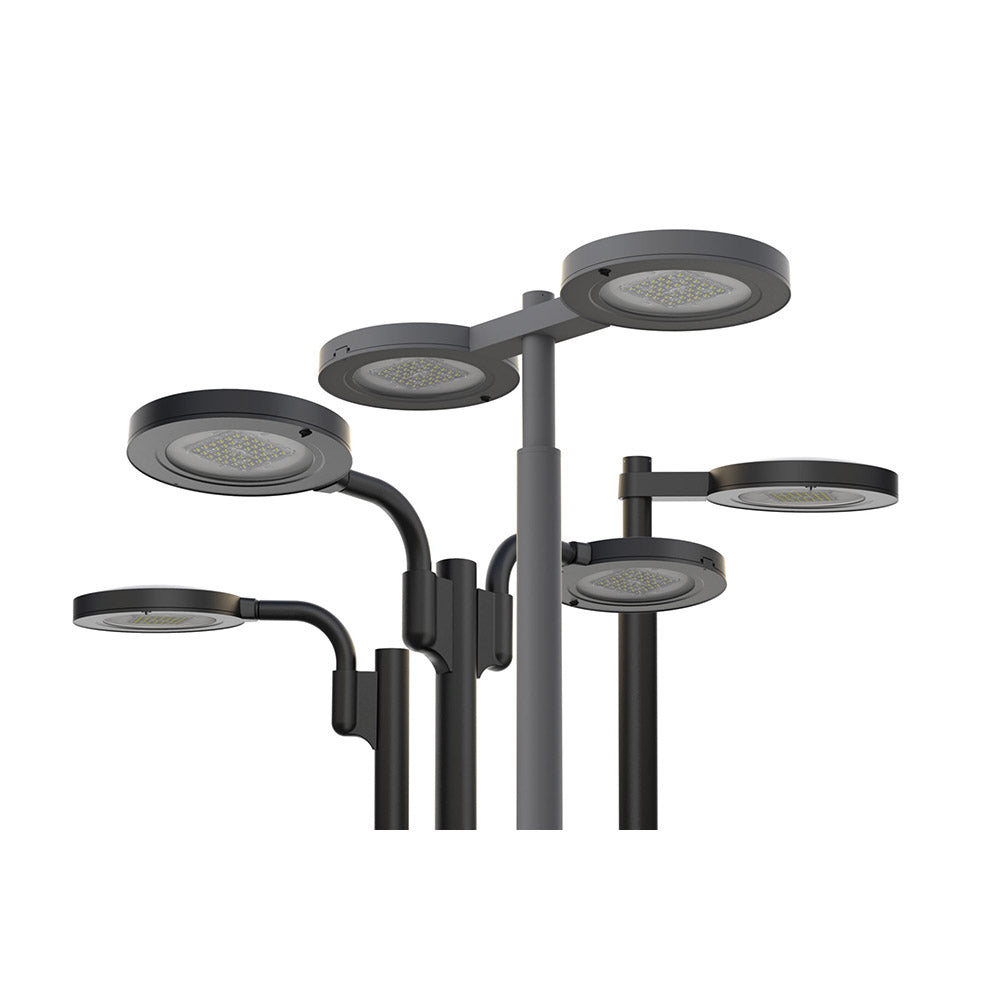

OmniScape is the latest solution for high-performance lighting in any urban setting. With contemporary, transitional and historical style options, as well as single and dual arm configurations, this luminaire is versatile and adaptable to any environment. It features a precision and comfort light engine, which provides exceptional efficacy and glare control, ensuring comfortable and efficient illumination.

Benefits

  • Flexibility: Create a custom lighting solution to fit your unique needs with our modular luminaire that offers flexibility in style and design.
  • Performance: Our latest Precision optics light engines offer a flexible balance of application coverage, efficiency, efficacy, and costs, with the ability to tune and optimize project solutions, and characterized by standardized optics, engines, and tailor-made options.
  • Connectivity: Our new modular urban luminaire offers greater flexibility and control with connectivity in mind, fully compliant with Zhaga standard for interoperability, and designed with open architecture and standard interfaces for easy connection to existing networks, sensors, and other devices in smart city projects.

Features

  • Modular system offering choice of roofs, arms and decorative options
  • Precision optics and ComfortEdge™ light engines
  • 2700, 3000, 4000K CCT in 70/80 CRI
  • Contemporary, Transitional and Historical styles
  • Single and Dual arms
  • Full cutoff with 0% uplight

Applications

  • Parks and Plazas
  • Academic and Business campus
  • Road and Residential
  • Retail and hospitality
Product Files

Click for OmniScape-OSA Choice Sheet

Click for PLu-2305BR-OmniScape-Brochure_0424
