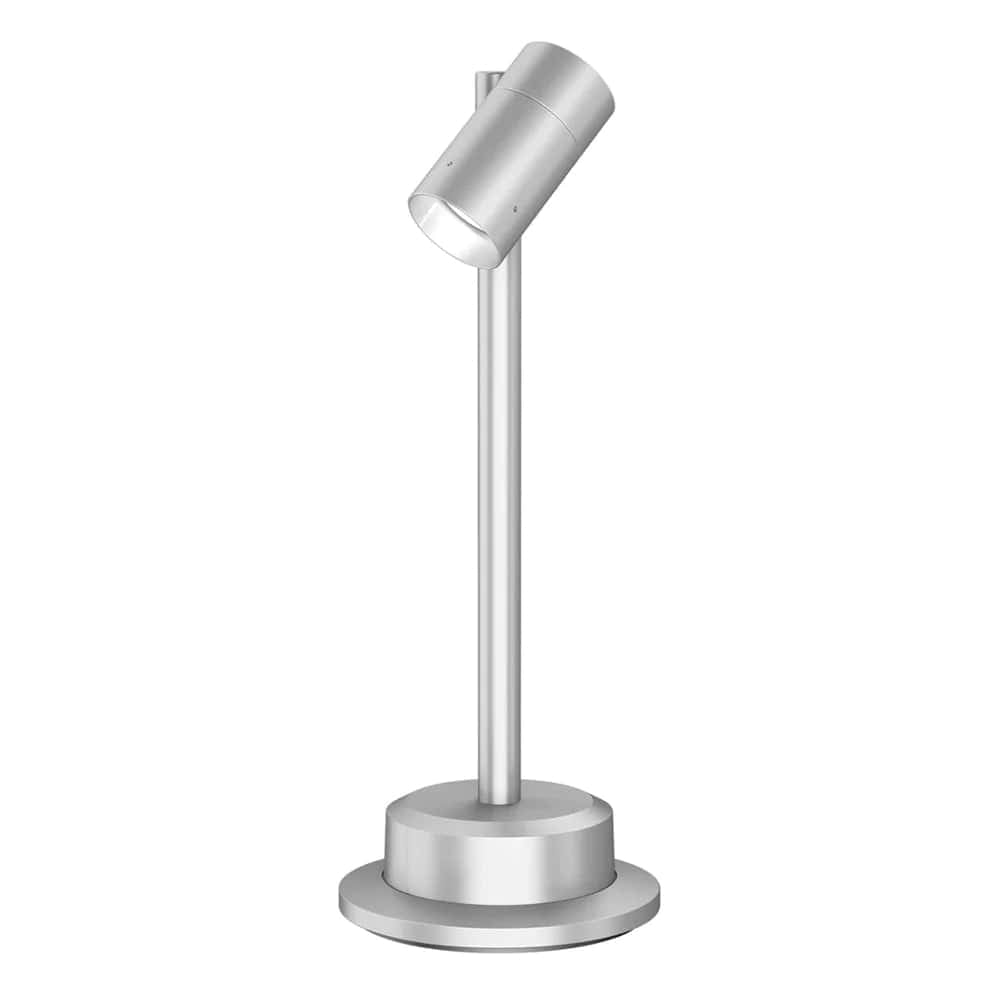

Lumiere Lanterra 1002 - P1 (1 Head) LED Pathway Light

Lanterra 1002-P1 (one head) is a small 2.5 O.D., line voltage Path light with dimmable LED. Each model attaches to an extended length-mounting stem. The side swivel mount on P1 gives 360° rotation while the center swivel mount on P2 adds to 180° tilt along with the 360° rotation. The luminaire comes with various mounting, beam optics. It also comes with various lens, louvers and colors or dichroic filters which can combine up to two at once to create multiple lighting effects. The fixture may be used indoors or outdoors and carries IP66 rating.

Features

Single and dual head, 180 degree tilt and 340 degree rotation
Up to 1100 delivered lumens and 110 Lm/W
14", 18" and 24" standard stem length
Spot, Medium, Flood and Wide optics, Field interchangeable
Premium machined aluminum. Stainless steel hardware
Line voltage. ELV, Triac and 0-10V std. dimming
Holds up to 2 accessories (lens, louver, filters)
Surface mount with integral driver

Product Files

Click forLumiere Lanterra 1002 Pathway specification sheet

Click forLumiere Lanterra Brochure

Click forLumiere Lanterra MB Installation Instructions (Ground Mount Recessed Box)

Click forLumiere Lanterra RSM Installation Instructions (Round Surface Mount)

Click forLumiere Lanterra WIS Installation Instructions

Click forLumiere Lanterra WRx Installation Instructions (Remote driver housing - Round Wall or Round Square)
