Description
LuxR Lighting 300mm Micro Spike Diamond 360° Spot Light
The LuxR Micro Diamond 360° is a miniature low-voltage dimmable outdoor uplight, with a 300mm spike for installing into soil. Illumination is directed in a 360° band inclined upward, ideal for illuminating shrubbery. Simply plant and orient. Ideal for planters and larger pots.

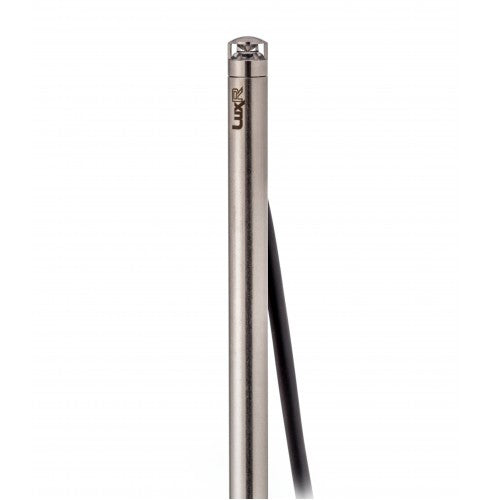

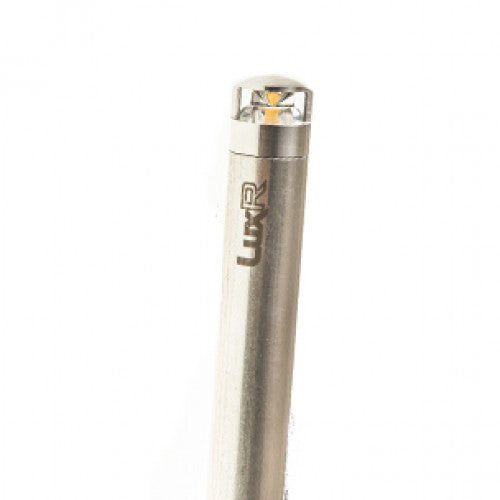

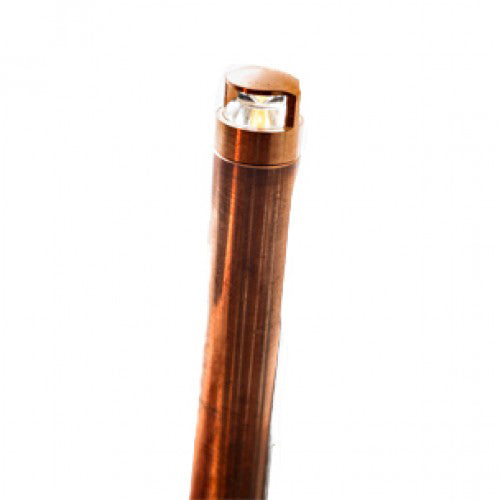

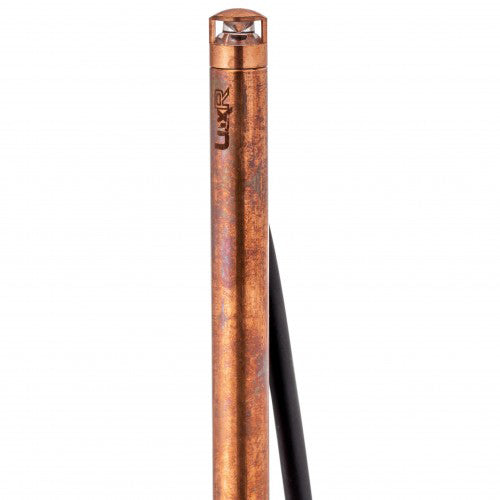

Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Diameter: Ø12.7mm
Length: 309mm
Specifications
- Input Current 60mA - 350mA max.
- Forward Voltage 3Vf
- Power 1 Watt max.
- Efficacy 70 Lm/W - Delivered from luminaire with unobstructed beam
- Colours 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI[3000K] Ra 90
- Diamond Beam 360°
- Standards IP68, LM79, CE UL1838
- Light Engine Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver Remote constant current driver required
Product Files
Click for 300mm Micro Spike Diamond 360 Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
