Description
LuxR Lighting Micro Pathlight
The LuxR Micro Recessed Pathlight is a miniature low-voltage dimmable outdoor washer, with optional canister. Illumination is produced through a the 3 facet 360° flange that projects light outwards and downwards to create an even wash across the ground or floor to illuminate paths.

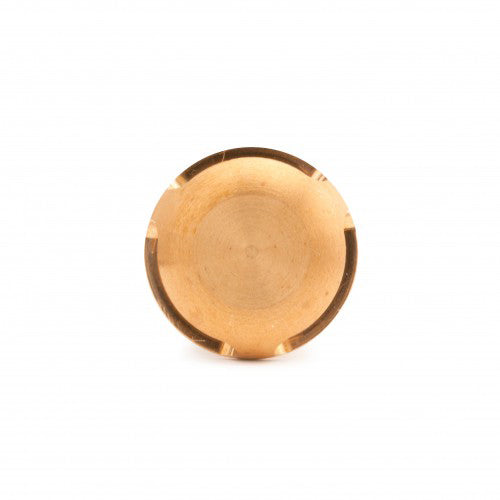

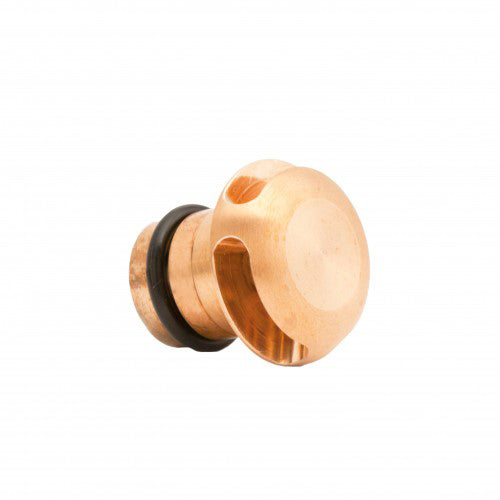

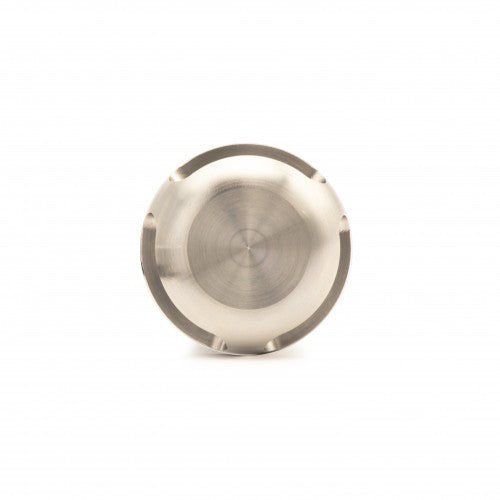

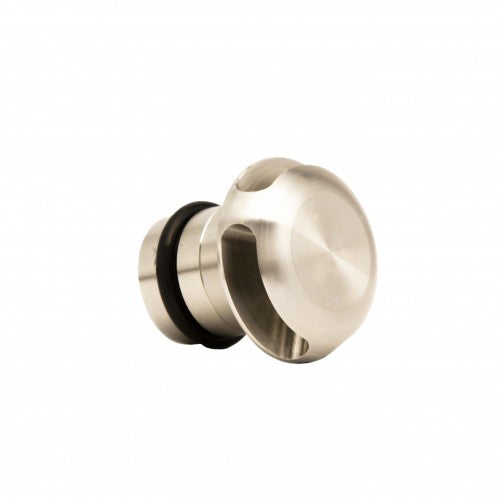

Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Flange diameter: 31.5mm (1 1/4")
Fitting depth: 21.5mm (7/8")
Specifications
- Forward Voltage: 3Vf
- Input Current: 60mA - 350mA max
- Power: 1 Watt
- Efficacy: 70 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI (2700°K, 3000°K): Ra 90
- Recessed Pathlight Beam: 360°
- Standards: IP68, LM79, CE, UL1838
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote Constant current driver or Integral driver fitted in an anti-siphon
Product Files
Click for LuxR Modux Micro Pathlight Spec Sheet V5.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
