Description

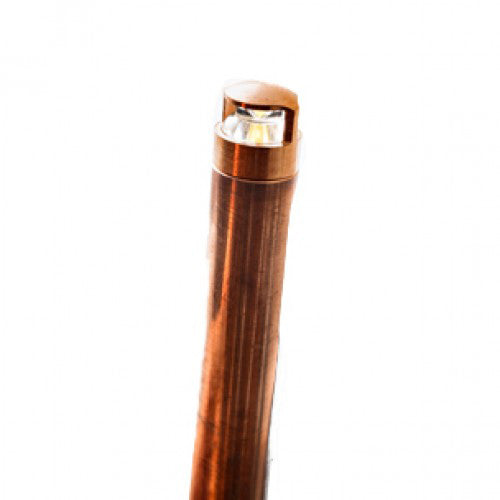

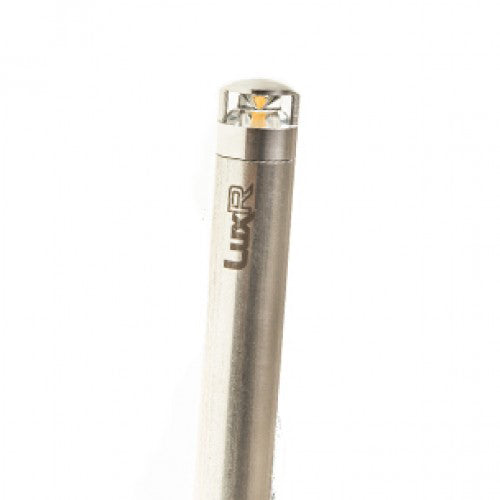

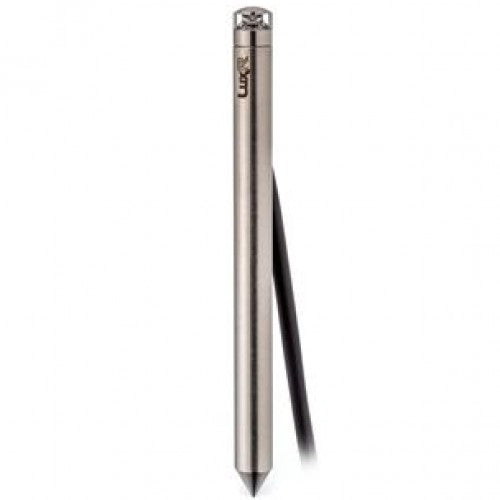

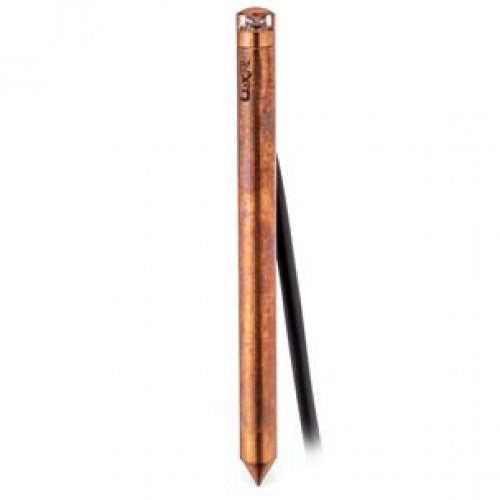

LuxR Lighting Micro Spike Diamond 360° Spot Light
The LuxR Micro Diamond 360° is a miniature low-voltage dimmable outdoor uplight, with a 150mm spike for installing into soil. Illumination is directed in a 360° band inclined upward, ideal for illuminating shrubbery. Simply plant and orient. Ideal for planters and larger pots.
Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Diameter: ø12.7mm
Length: 160mm
Specifications
- Input Current: 60mA - 350mA max
- Forward Voltage: 3Vf
- Power: 1 Watt max
- Efficacy: 70 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Diamond Beam: 360°
- Standards: IP68, LM79, CE UL1838
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required
Product Files
Click for LuxR Modux Micro Spike Diamond 180-360 Spec Sheet V5.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
