Description

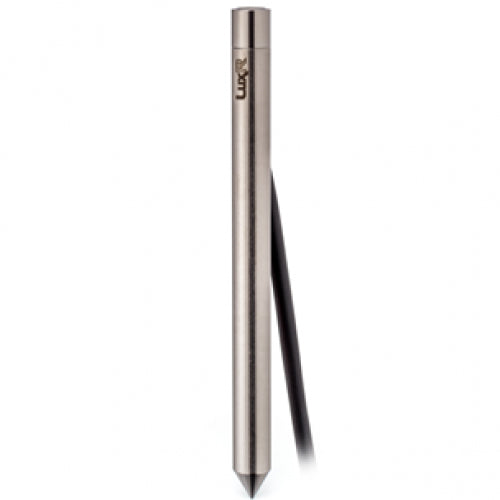

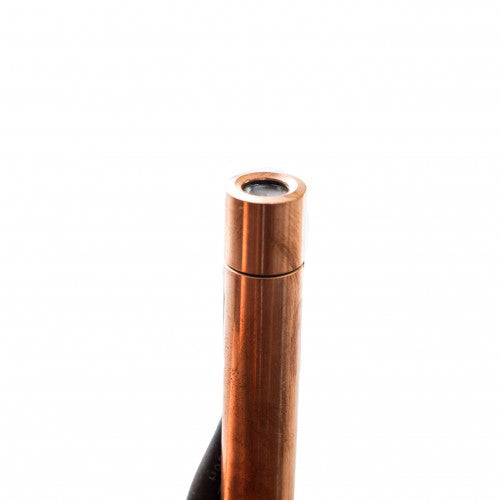

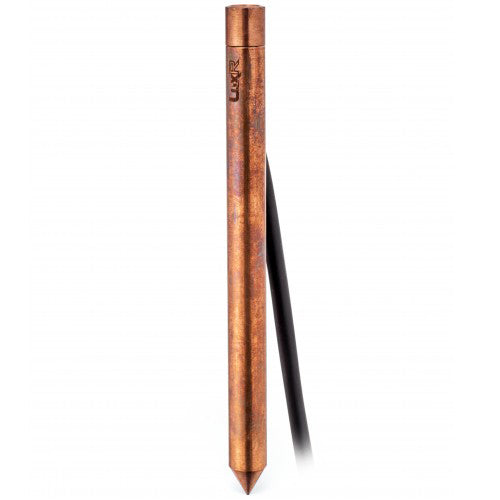

LuxR Lighting Micro Spike Spot Light
The LuxR Micro Spot is a miniature low-voltage dimmable outdoor spot light, with a 150mm spike for installing into soil. Ideal for illuminating small trees. Simply plant and orient. Ideal for planters and larger pots. Precision machined in marine grade 316 stainless steel or from copper the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
Diameter: ø12.7mm
Length: 160mm
Specifications
- Input Current 60mA - 350mA max
- Forward Voltage 3Vf
- Power 1 Watt max
- Efficacy 70 Lm/W - Delivered from luminaire with unobstructed beam
- Colours 2700°K, 3000°K, 4000°K, Red, Green, Blue, Amber
- CRI [3000°K] Ra 90
- Beam [FWHM] 16°, 37°, 84°, 18°+48° Oval
- Standards IP68, LM79, CE UL1838
- Light Engine Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver Remote constant current driver required
Product Files
Click for LuxR Moduc Micro Spike Spot Spec Sheet V5.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
