Description

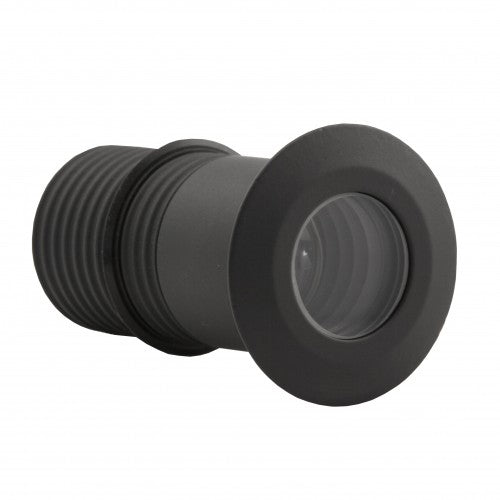

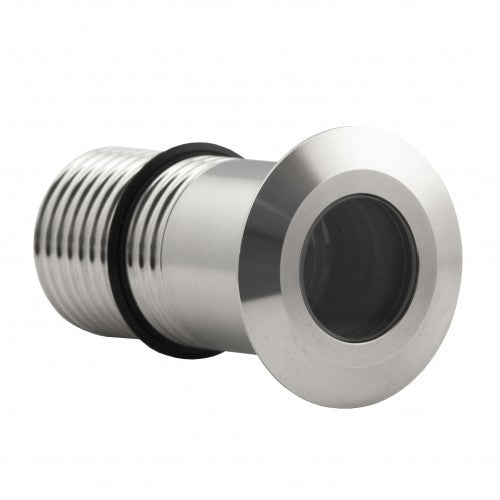

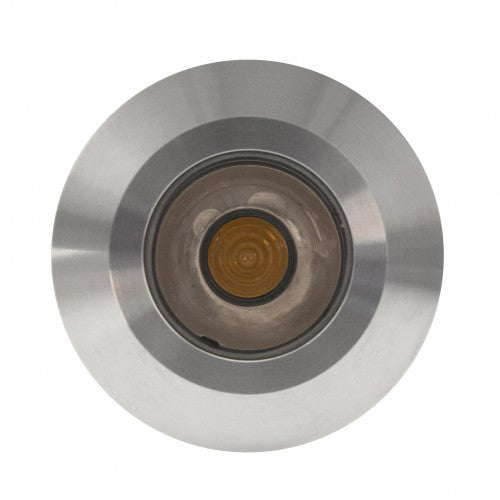

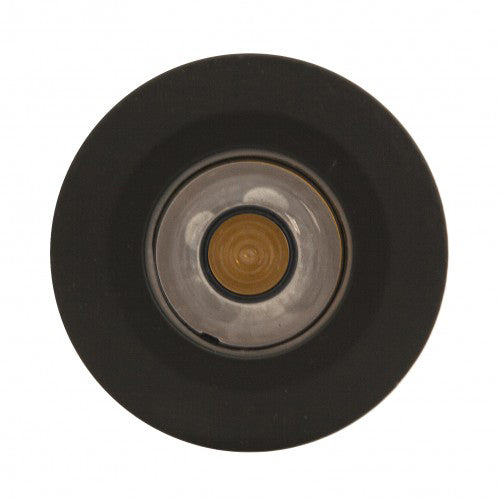

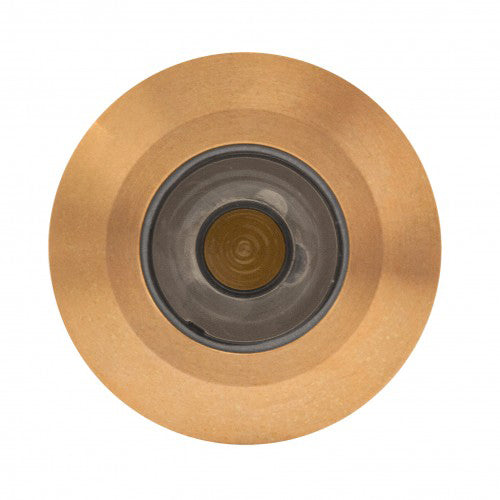

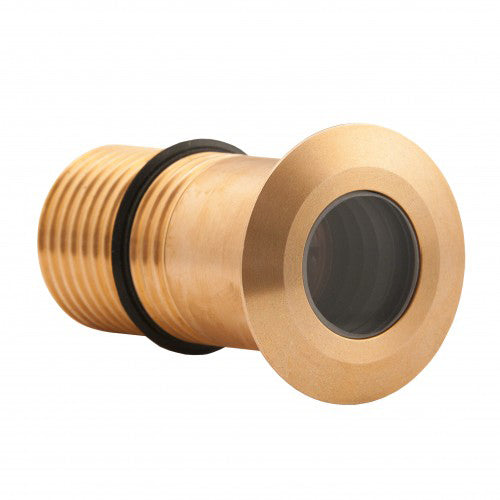

LuxR Lighting Modux Four Darklighter
The Modux Four Darklighter is a low-voltage dimmable outdoor uplighter typically producing 360 lumens. Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 4 watt LED can be easily replaced if required.
Specifications
- Input Current: 700mA
- Forward Voltage: 6Vf
- Power: 4 Watt
- Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 26°
- Glass lenses: Clear
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files
Click for LuxR Modux Four Darklighter Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
