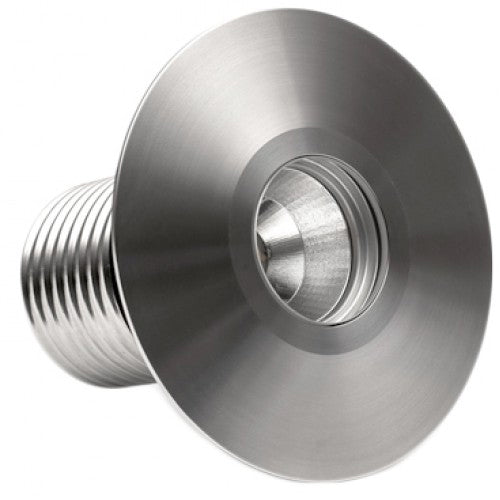

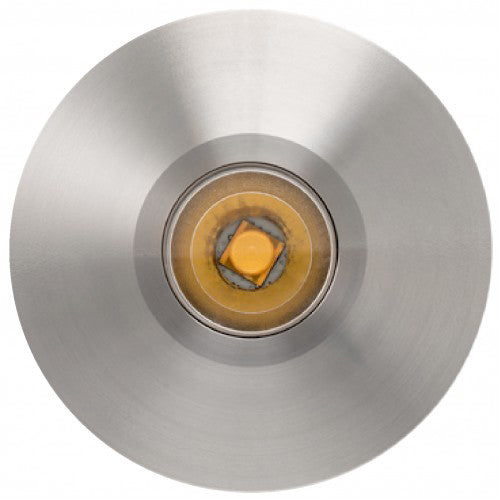

LuxR Lighting Modux Four Large Round Uplighter
LuxR Lighting Modux Four Large Round Uplighter
Roll over image to zoom in Click on image to zoom
LuxR Lighting Modux Four Large Round UplighterLuxR Lighting Modux Four Large Round Uplighter

LuxR Lighting Modux Four Large Round Uplighter

LuxR LightingSKU: LuxR-M4-LR
Price:
$0.00 USD

Fast & Easy Quote Request For LuxR Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Luxr Lighting Finishes

Description

LuxR Lighting Modux Four Large Round Uplighter

A larger version of the Modux Four Round.

This is particularly useful when the mounting hole is generous or hole coverage is a priority.

Flange diameter = ø75mm

Available Power Supply Chart

Specifications

  • Input Current: 700mA
  • Forward Voltage: 6Vf
  • Power: 4 Watt
  • Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K
  • CRI [3000°K]: Ra 90
  • Beam [FWHM]: 26°, 36°, 74°
  • Certifications: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
  • Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files

Click for LuxR Modux Four Uplighter.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
