LuxR Lighting Modux Four Pathlight

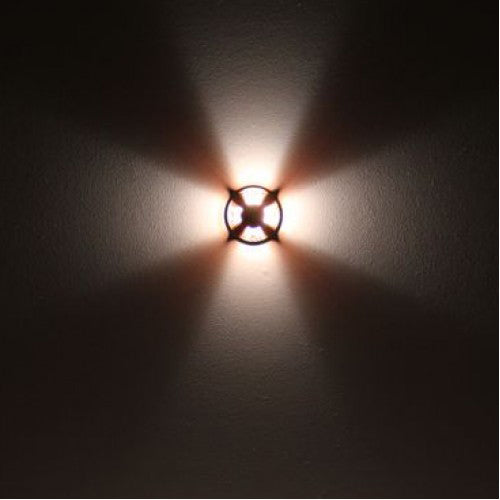

The Modux Four Pathlight is a low-voltage dimmable outdoor path light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. Can be used to illuminate a wall surface or as a path light wayfinder among other applications.

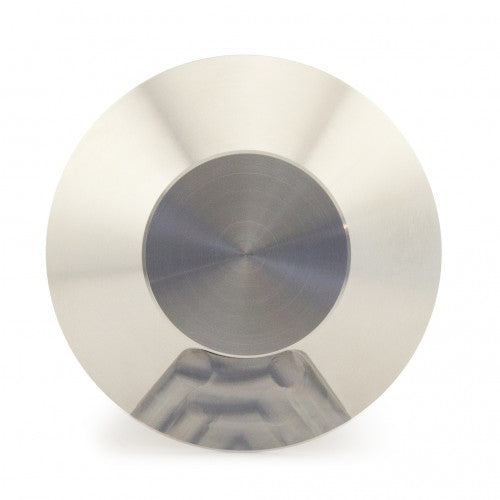

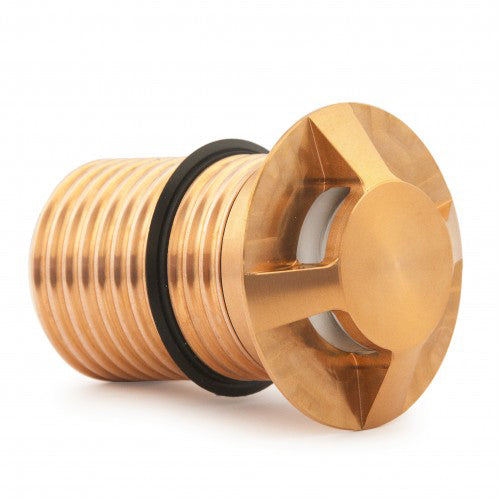

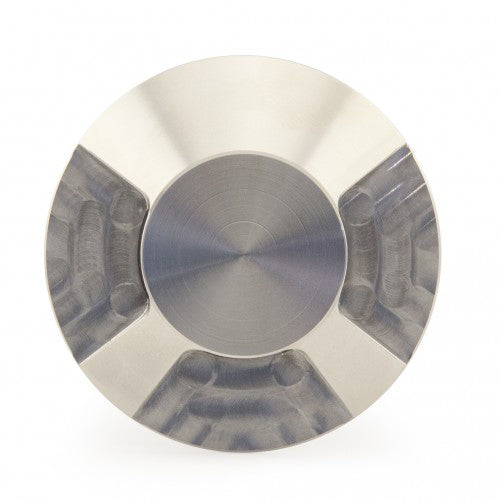

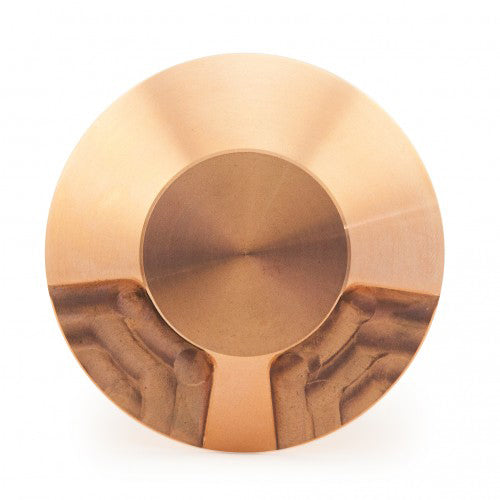

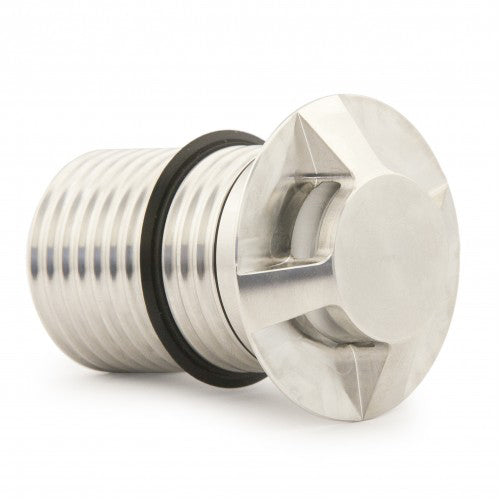

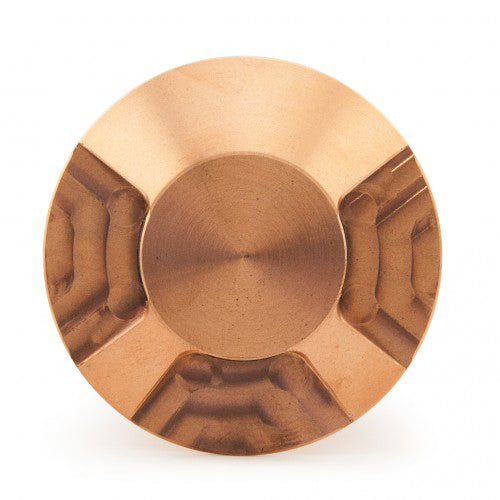

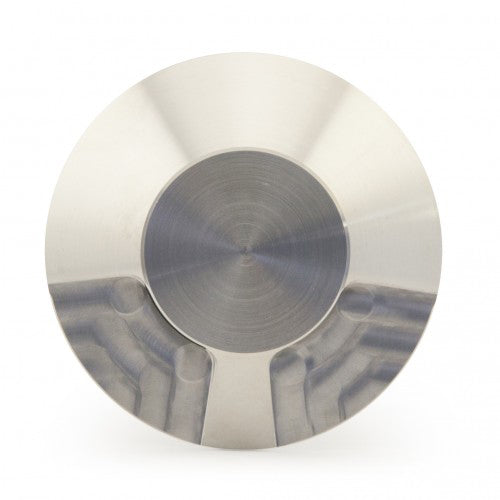

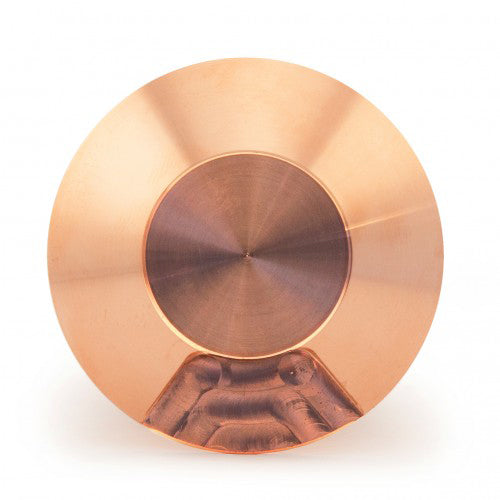

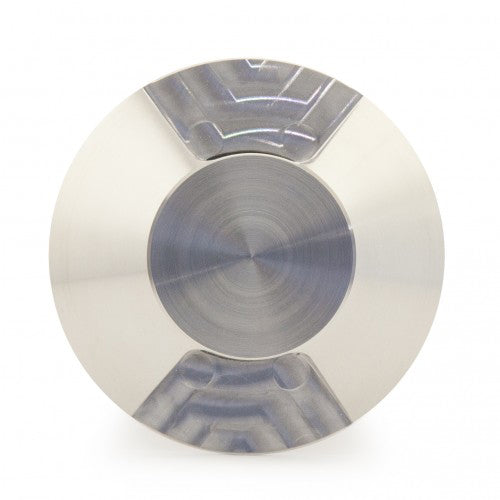

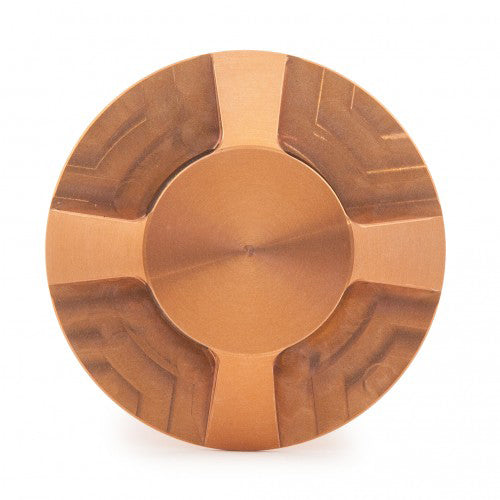

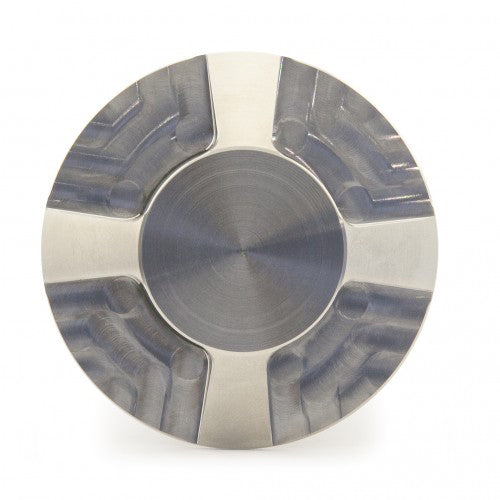

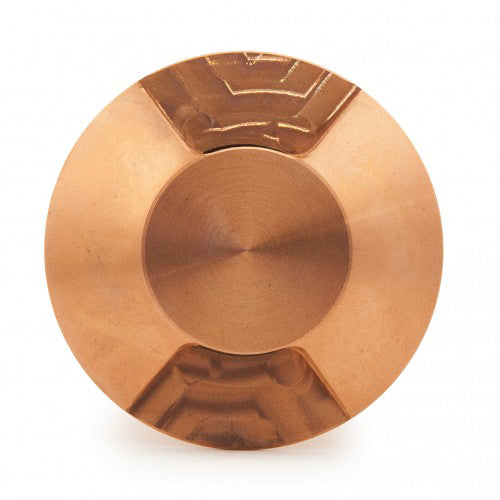

Precision machined in marine grade 316 stainless steel or copper, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 4 watt max LED can be easily replaced if required. The optic is glass.

Available Power Supply Chart

Specifications

  • Input Current: 700mA
  • Forward Voltage: 6Vf
  • Power: 4 Watt
  • Efficacy: 90 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K
  • CRI [3000°K]: Ra 90
  • Path Beam: -5°, +10°
  • Optic: Glass
  • Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XHP-50 LED
  • Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files

Click for LuxR Modux Four Pathlight Spec Sheet.pdf

Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
