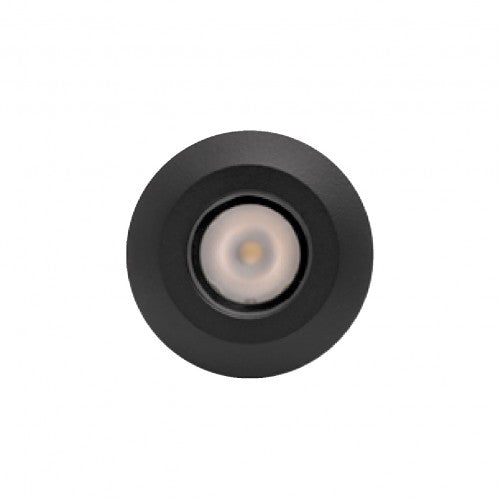

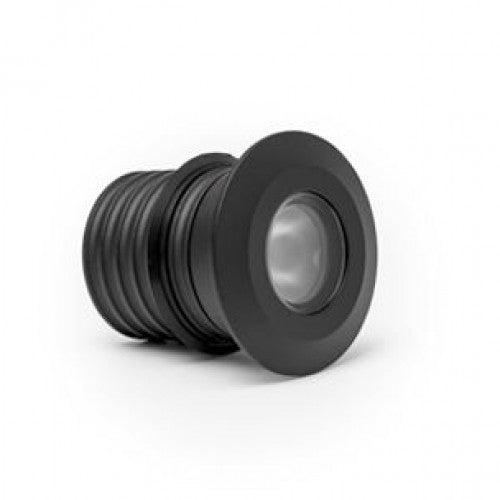

LuxR Lighting Modux One Round Outdoor Spot Light
The Modux One Round Recessed is a very small low-voltage dimmable outdoor spot light typically producing 80 lumens.

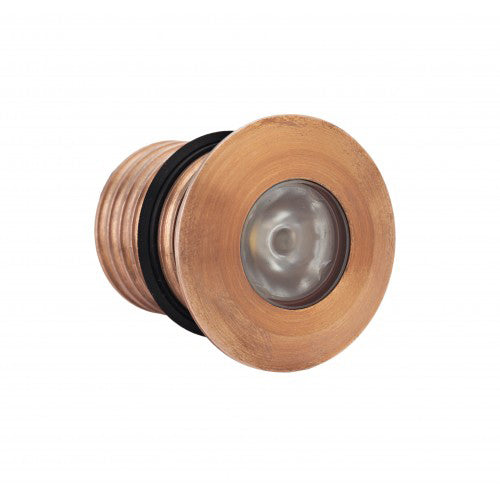

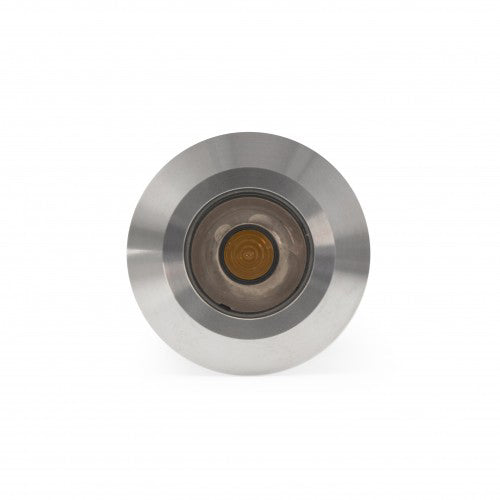

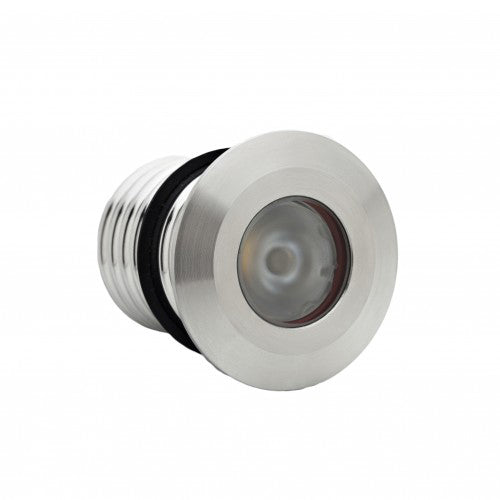

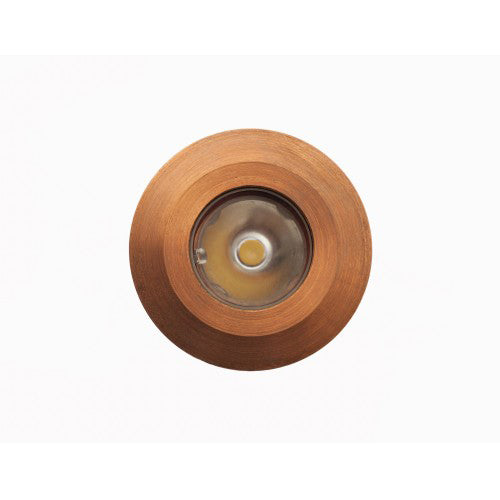

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
A PVC mounting canister is available from us.
Specifications
- Input Current: 350mA
- Forward Voltage: 3vf
- Power: 1 Watt
- Efficacy: 80 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 15°, 30°, 53°, 50+17°
- Glass lenses: Clear, Frosted
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required
Product Files
Click for LuxR Modux One Uplighter Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
