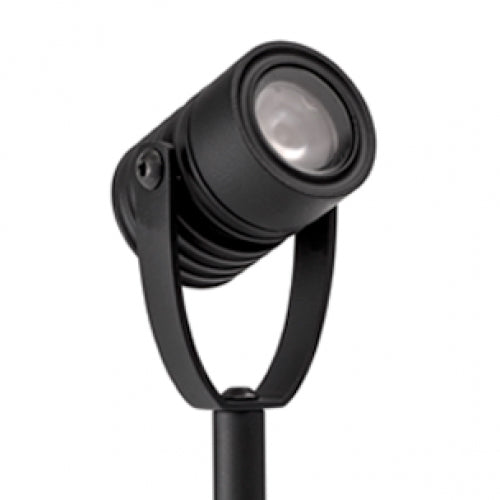

LuxR Lighting Modux One Spike Spot Light
The Modux One Spike Spot is a very small low-voltage dimmable outdoor spot light with a solid metal spike for installing into garden soil. The fully adjustable spot light typically produces 80 lumens.

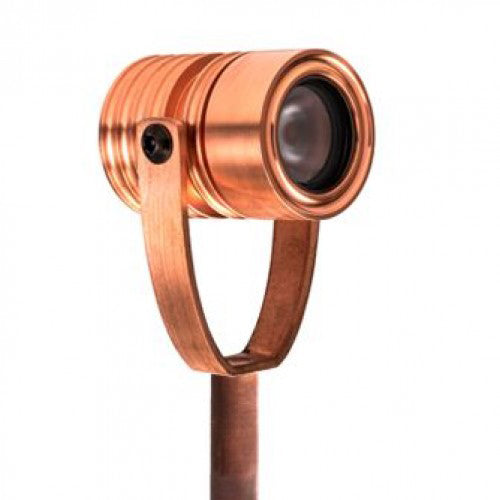

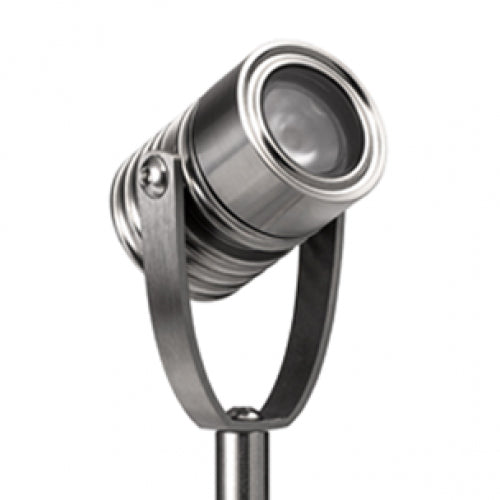

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
Specifications
- Input Current: 350mA
- Forward Voltage: 3Vf
- Power: 1 Watt max
- Efficacy: 80 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 30°, 53°, 50+17°
- Glass lenses: Clear, Frosted
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required
Product Files
Click for LuxR Modux One Spike Spot Spec Sheet V5.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
