Description

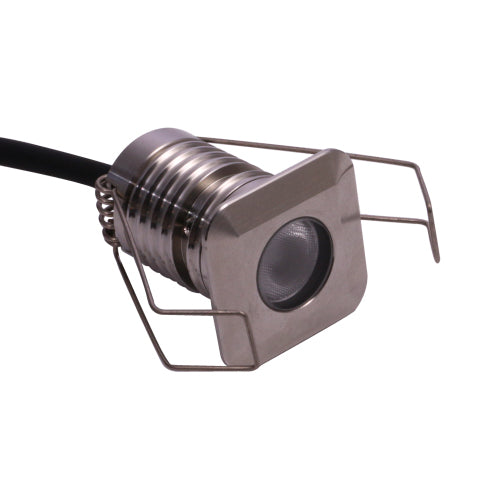

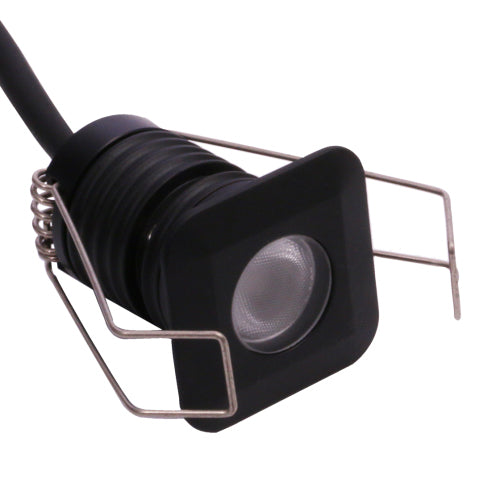

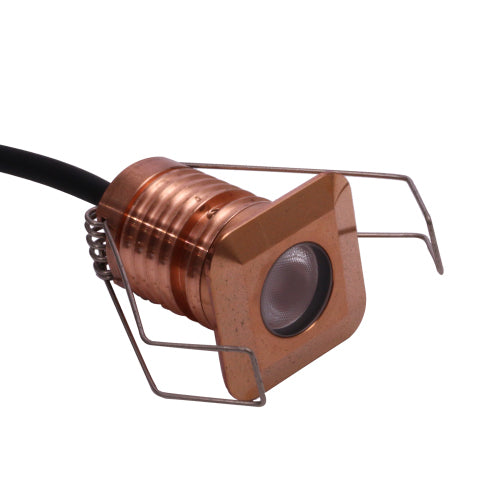

LuxR Lighting Modux One Square Recessed Plug
The Modux One Round Recessed Plug is easily installed. Mark out the luminaire position and have the wiring terminated at the location ready to receive the fixture with suitable connectors. Using a 31.8mm or 1 1/4" holesaw, cut a neat hole accurately in the surface where the fixture is to be mounted. Route the wiring out of the hole and electrically terminate the product. Fold the spring wings back against the body and inset into the hole. The flange will sit flush with the wall when fully inserted.
Specifications
- Input Current 350mA
- Forward Voltage 3Vf
- Power 1 Watt max
- Efficacy 80 Lm/W - Delivered from luminaire with unobstructed beam
- Colours 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K] Ra 90
- Beam (FWHM) 15°, 30°, 53°, 50+17°
- Glass lenses Clear, Frosted
- Standards IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver Remote constant current driver required
Product Files
Click for Accessory LuxR M1 Wall and Ceiling Recessed Spring Spec Sheet
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
