Description
LuxR Lighting Modux Two Louvre Outdoor Washer
The Modux Two Louvre is a low-voltage dimmable outdoor washer producing an attractive wash of light. Often used to illuminate stair treads.

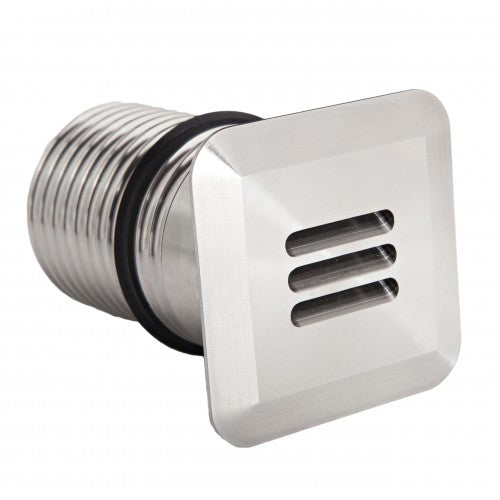

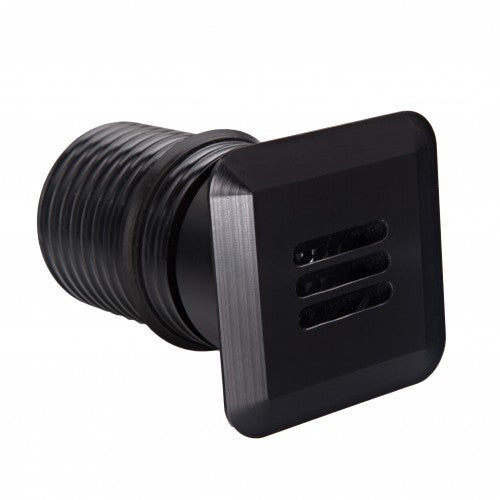

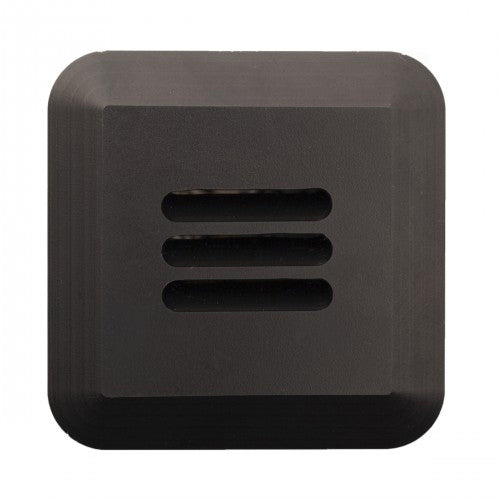

Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. It is not necessary to specify any beam angles as the luminaire has been optimised for you.

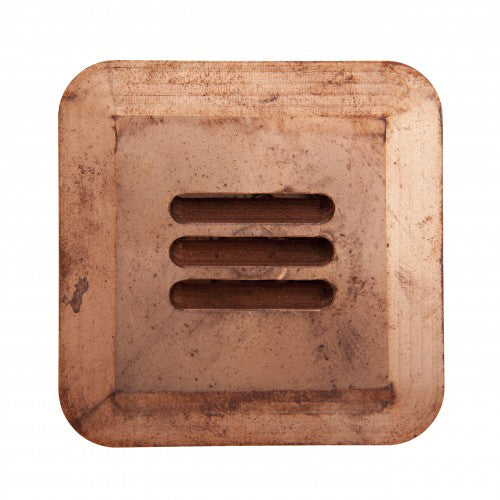

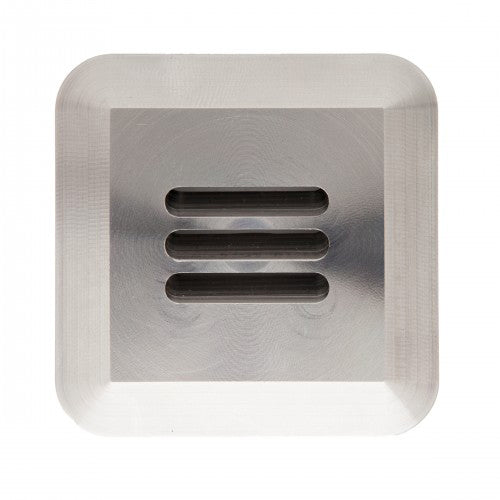

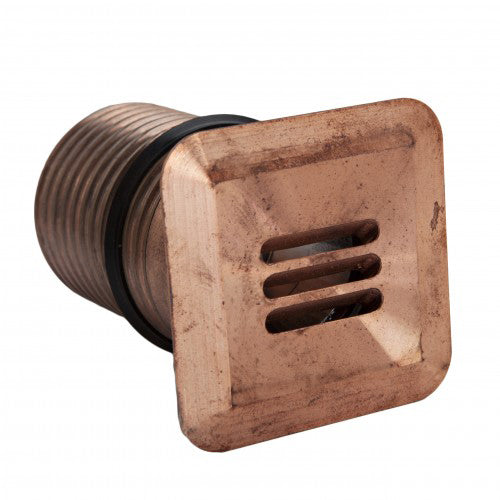

The stainless steel version is quite a nautical theme, while the copper version looks very much at home recessed into timber.
Specifications
- Input Current: 700mA
- Forward Voltage: 3Vf
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam: Asymmetric wash
- Glass lenses: Frosted
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files
Click for LuxR Modux Two Louvre Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
