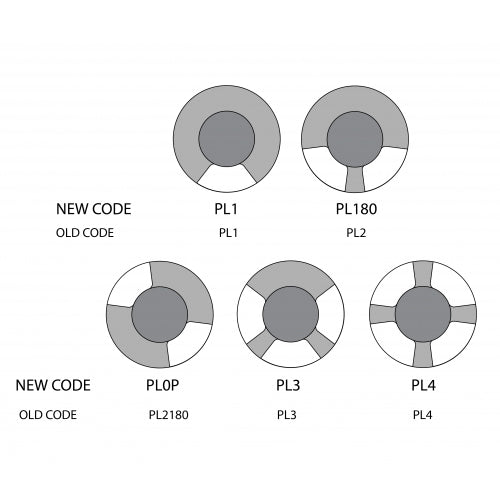

Luxr Lighting Finishes
Description

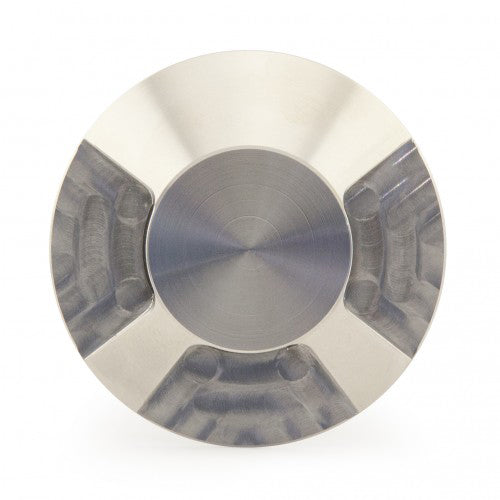

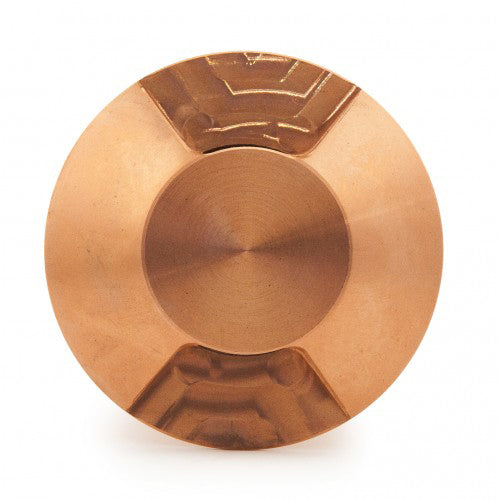

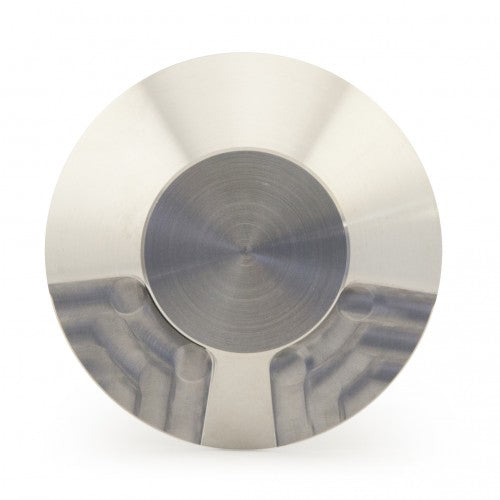

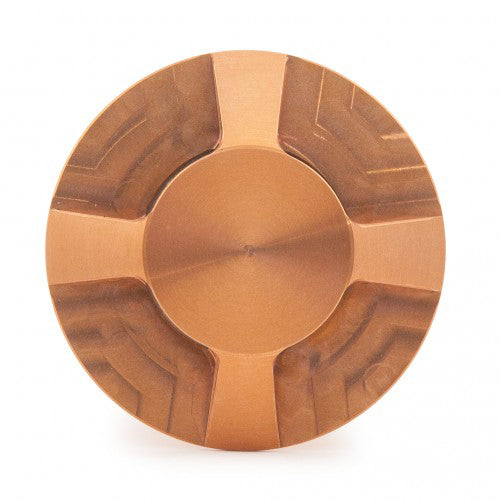

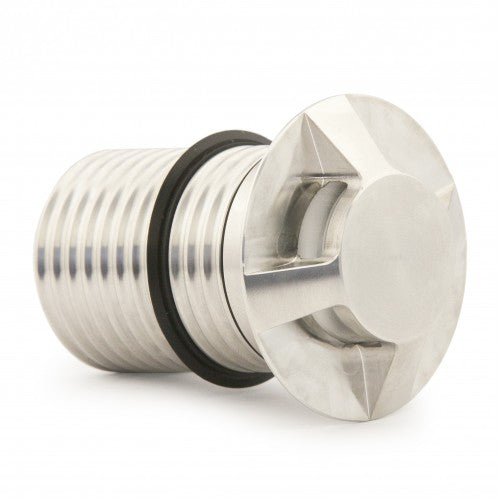

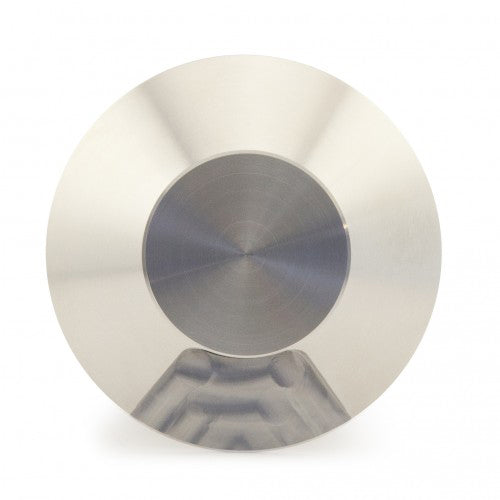

LuxR Lighting Modux Two Pathlight

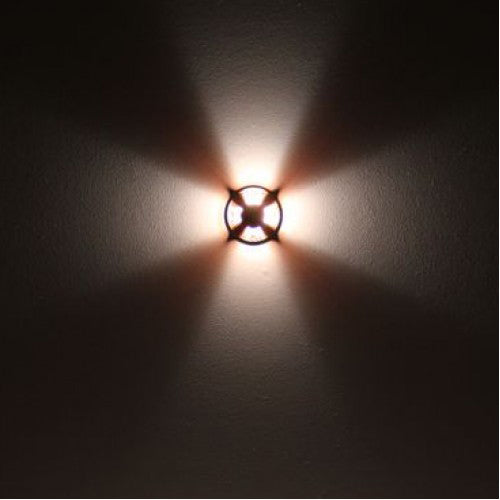

The Modux Two Pathlight is a low-voltage dimmable outdoor path light that produces a wash distribution 5 degrees below the flange lip, and 10 degrees above. Can be used to illuminate a wall surface, or as a path light wayfinder among other applications.

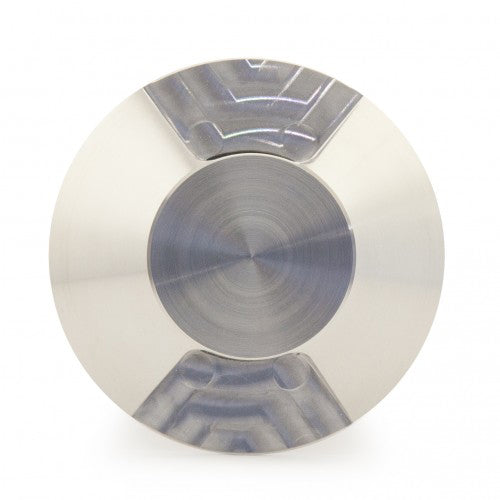

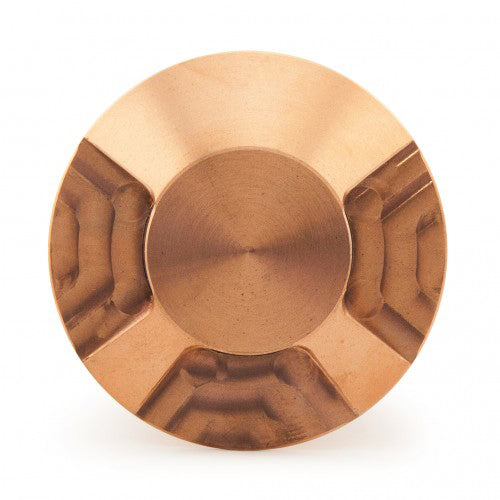

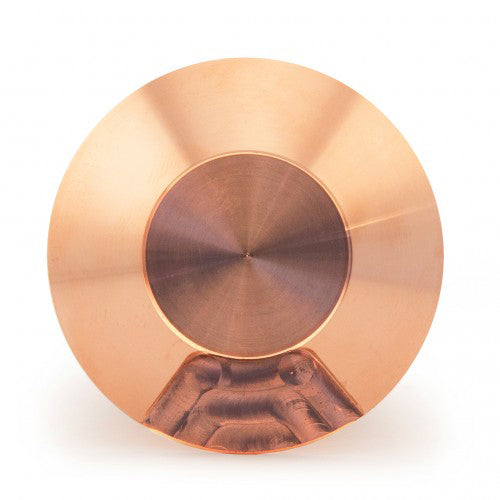

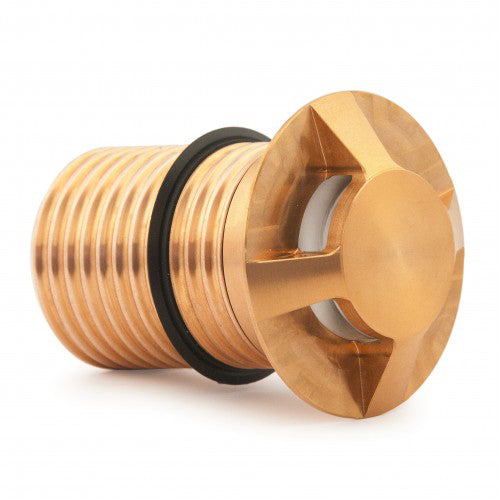

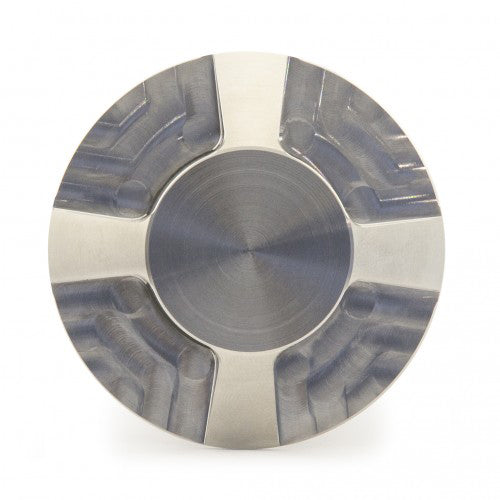

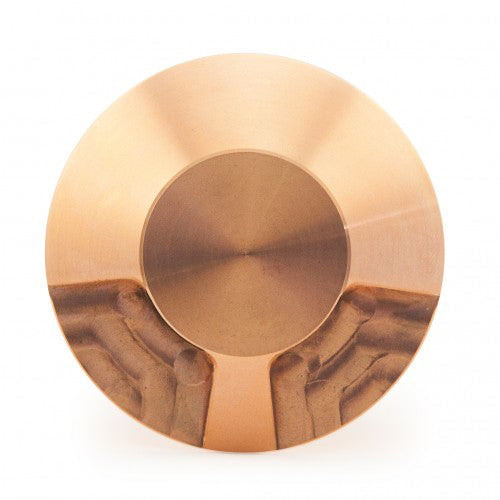

Precision machined in marine grade 316 stainless steel or copper, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is glass.
Specifications
- Input Current: 700mA
- Forward Voltage: 3Vf
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Path Beam: -5°, +10°
- Optic: Glass
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
Product Files
Click for LuxR Modux Two Pathlight Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
