LuxR Lighting Modux Two Pool Light (USA ONLY)

LuxR LightingSKU: LuxR-M2-POOL

Price:
Sale price$0.00 USD

Fast & Easy Quote Request For LuxR Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Luxr Lighting Finishes

Description

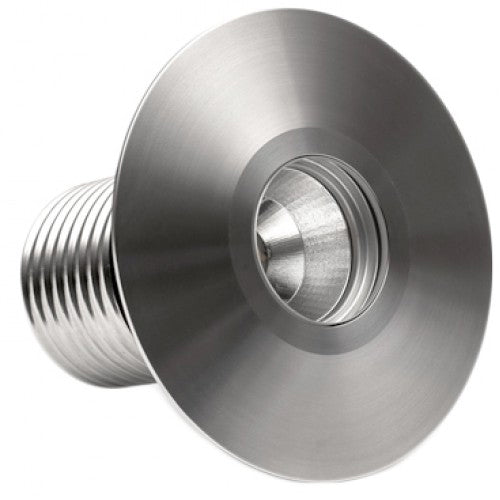

LuxR Lighting Modux Two Pool Light (USA ONLY)

Approved for use in the USA only

The Modux Two Pool light is a low-voltage dimmable pool light producing 360 lumens.

The fixture is supplied with the LuxR Large Round flange and the LuxR PVC Pool canister.

Precision machined in marine grade 316 stainless steel. The Cree 4 watt LED can be easily replaced if required. The optic is also simple to change if you wish to alter the beam width (see specifications).

Hexcell louvre baffle also is available.

Available Power Supply Chart

Specifications

  • Input Current: 700mA
  • Forward Voltage: 3Vf
  • Power: 2 Watt
  • Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
  • Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
  • CRI [3000°K]: Ra 90
  • Beam [FWHM]: 26°, 36°, 74°
  • Glass lenses: Clear, Frosted, Hexcell louvre baffle
  • Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
  • Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
  • Driver: LuxR Integral 12V AC driver
Product Files

Click for LuxR Modux Two USA POOL.pdf

Click for Installation Instructions.pdf
