Description

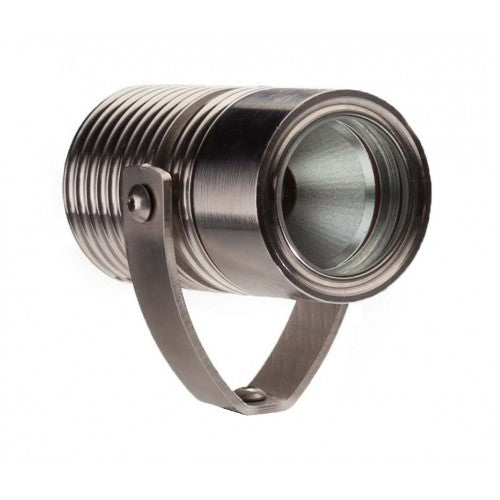

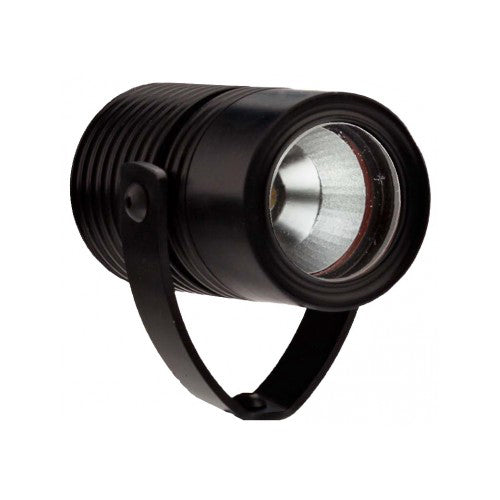

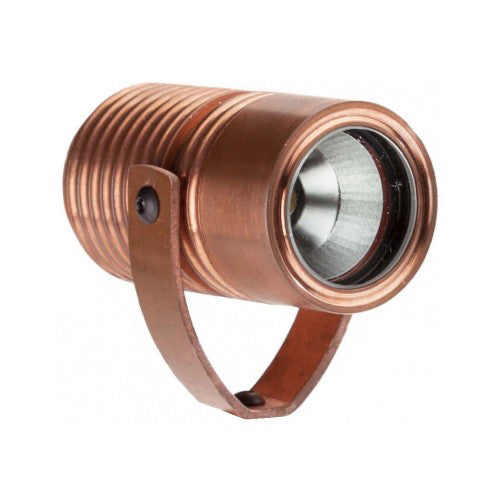

LuxR Lighting Modux Two Surface Mount Spot Light
The Modux Two Surface Mount Spot is a very small low-voltage dimmable outdoor spot light on a stiff metal bracket for installing onto any surface with a <4mm diameter screw. The fully adjustable spot light typically produces 170 lumens.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
Specifications
- Input Current: 700mA
- Forward Voltage: 3Vf
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 26°, 36°, 74°
- Glass lenses: Clear, Frosted, Hexcell louvre baffle
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- Driver: Remote constant current driver, LuxR Integral 12V AC driver, or 24V DC driver required.
Product Files
Click for Modux Two Spotlight Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
