Description

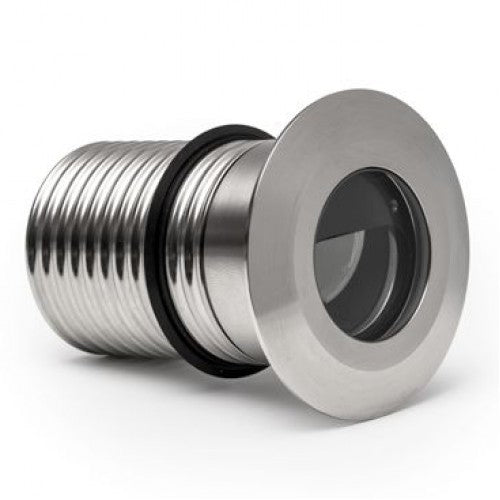

LuxR Lighting Modux Two Wall Washer
The Modux Two Wall Washer is a small low-voltage dimmable outdoor light for washing walls with a uniform light. Designed primarily to be recessed into floors, its state of the art optic creates a subtle wash of light with excellent beam uniformity. Can also be mounted in walls to wash floor surfaces.
Just 58mm in diameter, the Modux 2 Wall Washer produces a light output of 130 lumens @ 2 watts. Can be over-driven safely at 3 Watts maximum for more output. The pin mounted Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED.
The luminaire can be mounted very close to the wall and still achieve a good result.
Specifications
- Driver: Remote constant current driver required, or LuxR Integral 12V AC driver
- Input Current: 700mA Remote driver, 700mA Integral driver max
- Forward Voltage: 3Vf
- Power: 2 Watt @ 700mA
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam: Asymmetric Wash
- Glass lenses: Clear
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
Product Files
Click for LuxR Modux Two Wallwasher Spec Sheet.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
