Description

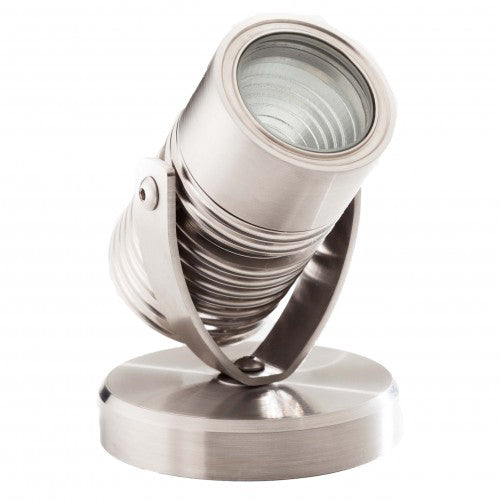

LuxR Lighting Modux Two Weighted Base Spot Light
The Modux Two Weighted Base Spot is a very small low-voltage dimmable outdoor spot light with a solid metal base. The fully adjustable spot light typically produces 170 lumens @ 2 watts.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for peace of mind. The Cree 2 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see specifications).
Specifications
- Input Current: 700mA
- Forward Voltage: 3Vf
- Power: 2 Watt
- Efficacy: 85 Lm/W - Delivered from luminaire with unobstructed beam
- Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
- CRI [3000°K]: Ra 90
- Beam [FWHM]: 26°, 36°, 74°
- Glass lenses: Clear, Frosted, Hexcell louvre baffle
- Standards: IP68, LM79, CE, UL676, UL1598, UL1838, UL2108
- Light Engine: Plug-in dimmable module equipped with Cree XPG-3 LED
- LED Driver Remote constant current driver, LuxR Integral 12V AC driver, or 24V DC driver required.
Product Files
Click for LuxR Modux Two Spot Range.pdf
Click for MM,M1,M2,M4 Installation Instructions_Edition 6.pdf
