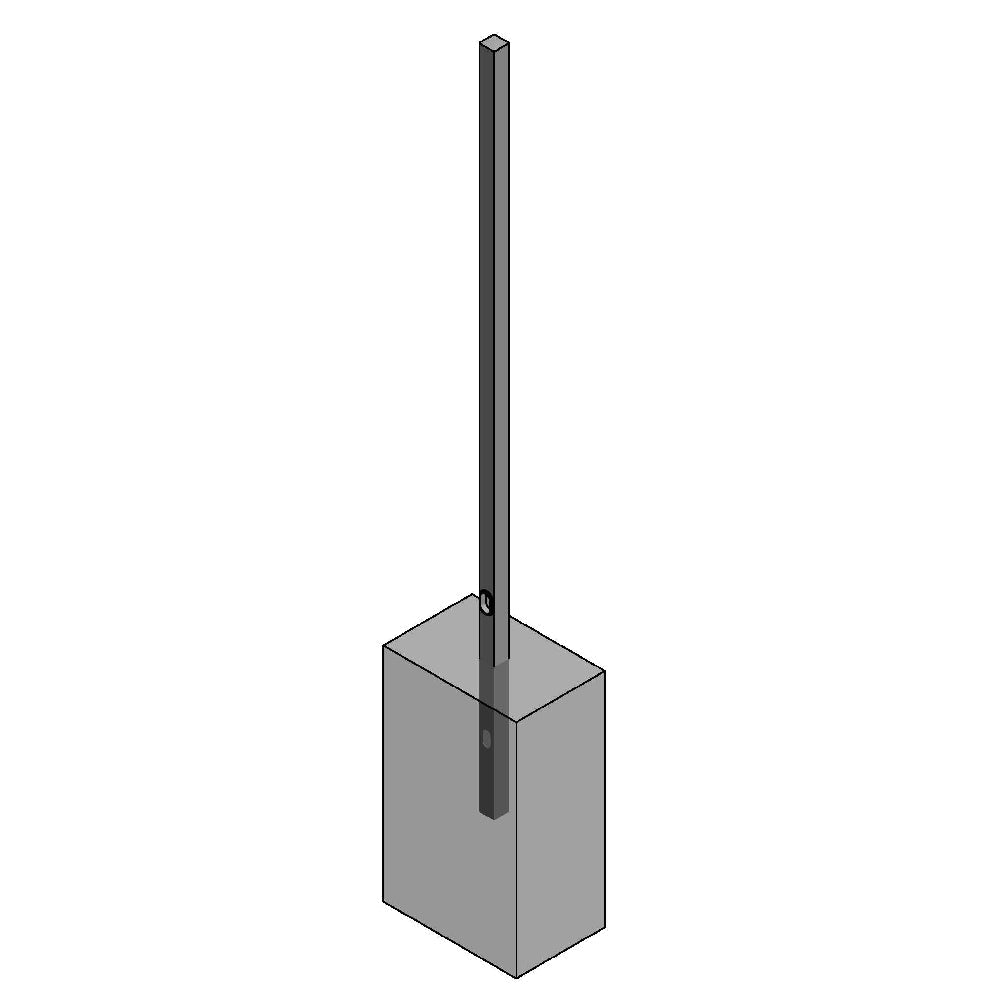

Lyte Poles 105-EMB Square Straight Aluminum Embedded Poles
Pole Shaft
The shaft is extruded from all new 6063 alloy aluminum tubing and heat treated to produce a T6 temper.
Direct Burial
An optional alkali-resistant coal tar epoxy can be applied to the burial portion of embedded poles. Our direct burial poles are supplied complete with a 2×4" wiring slot below grade.
Catalog Number |
Mounting Height |
Effective Projected Area |
Shaft Dimensions |
Burial Depth (ft) |
Cutsheet |
80 |
90 |
100 |
120 |
Sq. |
Wall Thick. |
105-4012-8-EMB |
8 |
13.8 |
10.8 |
8.4 |
7.3 |
4 |
0.125 |
3 |
View |
105-4012-10-EMB |
10 |
10.6 |
8.3 |
6.3 |
4.5 |
4 |
0.125 |
3 |
View |
105-4012-12-EMB |
12 |
8.4 |
6.5 |
4.8 |
2.6 |
4 |
0.125 |
3 |
View |
105-4012-14-EMB |
14 |
6.8 |
5.1 |
3.7 |
1.5 |
4 |
0.125 |
4 |
View |
105-4018-15-EMB |
15 |
6.1 |
4.5 |
3.2 |
0.9 |
4 |
0.188 |
4 |
View |
105-4018-16-EMB |
16 |
8.9 |
6.8 |
5.0 |
2.1 |
4 |
0.188 |
4 |
View |
105-5018-20-EMB |
20 |
10.8 |
8.1 |
5.8 |
1.5 |
5 |
0.188 |
4 |
View |
105-6018-20-EMB |
20 |
16.4 |
12.4 |
9.2 |
3.8 |
6 |
0.188 |
4 |
View |
105-6025-20-EMB |
20 |
22.6 |
17.4 |
13.1 |
6.8 |
6 |
0.250 |
4 |
View |
105-6018-25-EMB |
25 |
11.6 |
8.4 |
5.8 |
2.0 |
6 |
0.188 |
5 |
View |
105-6025-25-EMB |
25 |
16.5 |
12.3 |
8.9 |
2.2 |
6 |
0.250 |
5 |
View |
