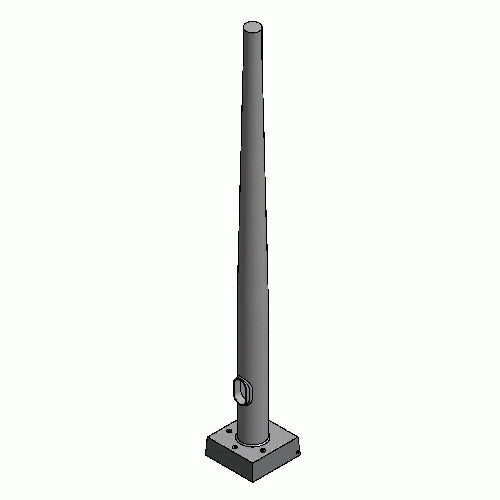

The shaft is spun tapered from all new seamless 6063 alloy aluminum tubing and heat treated to produce a T6 temper. It is gracefully cone tapered to the butt diameter. Each shaft has a 6"-long straight section at the top that may be drilled to the luminaire manufacturers mounting specifications. An Aluminum tenon may also be supplied as standard.
Cast from A356 alloy aluminum, the anchor base is heat treated to produce a T6 condition and inserted into the anchor base casting. The two pieces are joined by a continuous circumferential weld at the outside top and inside bottom of the anchor base. The anchor bolts and nuts recess in the base casting, sitting flush, and are covered by four (4) tamper-resistant aluminum nut cover discs.
Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
80 | 90 | 100 | 120 | Butt | Top | Wall | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
305-4012-10 | 10 | 10.1 | 7.4 | 5.7 | 3.4 | 4 | 3 | 0.125 | .75 x 20 | 6.75 | 9.62 | 1.88 | View | View |
305-5012-10 | 10 | 16.1 | 12.4 | 9.9 | 6.2 | 5 | 3 | 0.125 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-4012-12 | 12 | 7.2 | 5.3 | 3.9 | 2 | 4 | 3 | 0.125 | .75 x 20 | 6.75 | 9.62 | 1.88 | View | View |
305-5012-12 | 12 | 12.5 | 9.5 | 7.4 | 4.7 | 5 | 3 | 0.125 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-4012-14 | 14 | 5.3 | 3.8 | 2.7 | 1.6 | 4 | 3 | 0.125 | .75 x 20 | 6.75 | 9.62 | 1.88 | View | View |
305-5012-15 | 15 | 8.7 | 6.6 | 5 | 3.3 | 5 | 3 | 0.125 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-5015-15 | 15 | 11.1 | 8.4 | 6.8 | 4.5 | 5 | 3 | 0.156 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-5012-18 | 18 | 5.7 | 4.1 | 3 | 1.8 | 5 | 3 | 0.125 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-6015-18 | 18 | 11.6 | 9.3 | 7.4 | 4.7 | 6 | 3 | 0.156 | .75 x 20 | 8.75 | 11.62 | 1.88 | View | View |
305-5015-20 | 20 | 6.2 | 4.3 | 3 | 1 | 5 | 3 | 0.156 | .75 x 20 | 7.75 | 10.62 | 1.88 | View | View |
305-6015-20 | 20 | 10.1 | 7.5 | 5.8 | 3.7 | 6 | 3 | 0.156 | .75 x 20 | 8.75 | 11.62 | 1.88 | View | View |
405-7015-20 | 20 | 15.9 | 12.2 | 9.7 | 6.2 | 7 | 4.5 | 0.156 | 1 x 40 | 10.5 | 11.28 | 3.38 | View | View |
405-7015-25 | 25 | 10.3 | 7.6 | 5.9 | 3.7 | 7 | 4.5 | 0.156 | 1 x 40 | 10.5 | 11.28 | 3.38 | View | View |
405-8015-25 | 25 | 15.3 | 11.7 | 9.2 | 5.7 | 8 | 4.5 | 0.156 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8015-30 | 30 | 10.2 | 7.7 | 5.9 | 3.5 | 8 | 4.5 | 0.156 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8018-30 | 30 | 13.3 | 10.4 | 7.9 | 5 | 8 | 4.5 | 0.188 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8025-30 | 30 | 19.4 | 14.9 | 11.7 | 7.4 | 8 | 4.5 | 0.25 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8018-35 | 35 | 9.2 | 6.8 | 5.1 | 2.8 | 8 | 4.5 | 0.188 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8025-35 | 35 | 14.1 | 10.7 | 8.3 | 4.9 | 8 | 4.5 | 0.25 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
405-8025-39 | 39 | 10.8 | 7.9 | 6.1 | 3.3 | 8 | 4.5 | 0.25 | 1 x 40 | 11.5 | 12 | 3.5 | View | View |
