Description

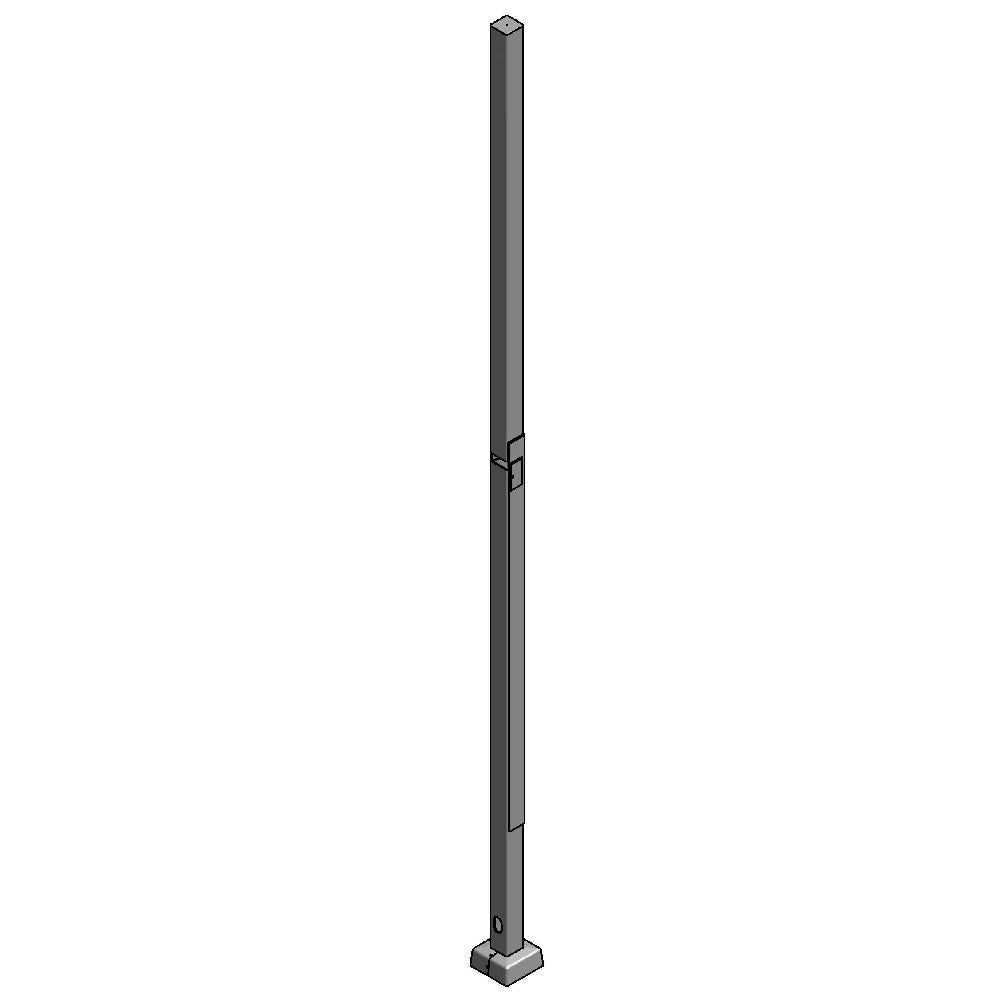

The pole shafts two-section design is fabricated from United States standard coil stock. It is a weldable-grade, hot-rolled, commercial-quality carbon steel ASTM A-500 Grade B with a guaranteed minimum yield strength of 46,000 psi after fabrication. Each section is a one-piece construction with a full-length longitudinal resistance weld and is square in cross section.
A full base plate cover is supplied. For 20-35' poles, the base cover is automotive structural grade ABS plastic with a UV inhibitor to eliminate color fading. It is rust proof and tamper resistant. For 39-60' poles, the base cover is made of two-piece formed sheet steel.

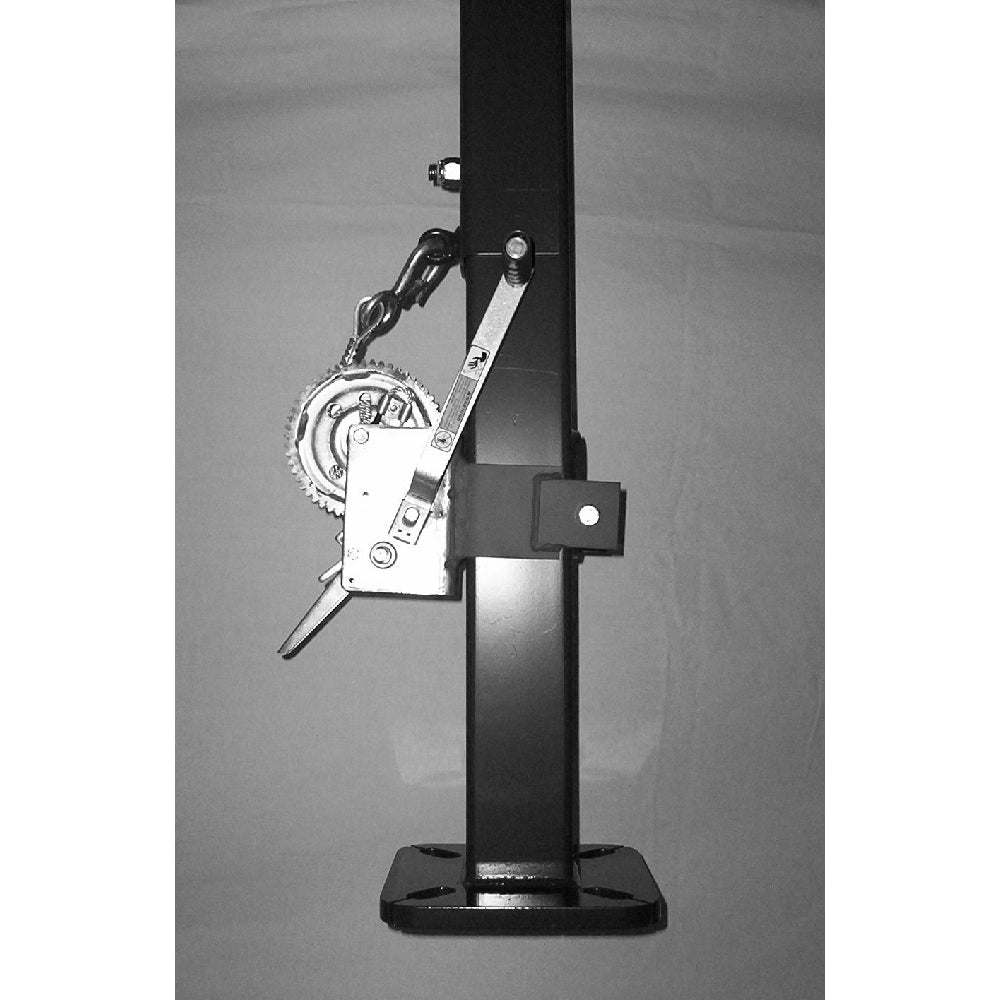

A portable lowering winch is required with hinged poles and should be ordered as a separate item.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Butt | Top | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 501-4007-20 | 20 | 13.5 | 10.8 | 9.3 | 6.9 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-5007-20 | 20 | 24.4 | 19.3 | 15.2 | 9.4 | 5x7 | 5x11 | 1x40 | 11 | 11 | 1 | View | View |
| 501-4007-24 | 24 | 9.5 | 7.7 | 6.1 | 3.8 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-6007-24 | 24 | 25.2 | 18.6 | 14.3 | 8.6 | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
| 501-4007-30 | 30 | 4.5 | 3.5 | 2.9 | 1.9 | 4x7 | 4x11 | .75x28 | 9.5 | 10 | 0.75 | View | View |
| 501-6007-30 | 30 | 19 | 14 | 10.8 | 6.4 | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
| 501-6007-35 | 35 | 12.1 | 7 | 3.6 | N/A | 6x7 | 6x7 | 1x40 | 11.5 | 12 | 1 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
