Description

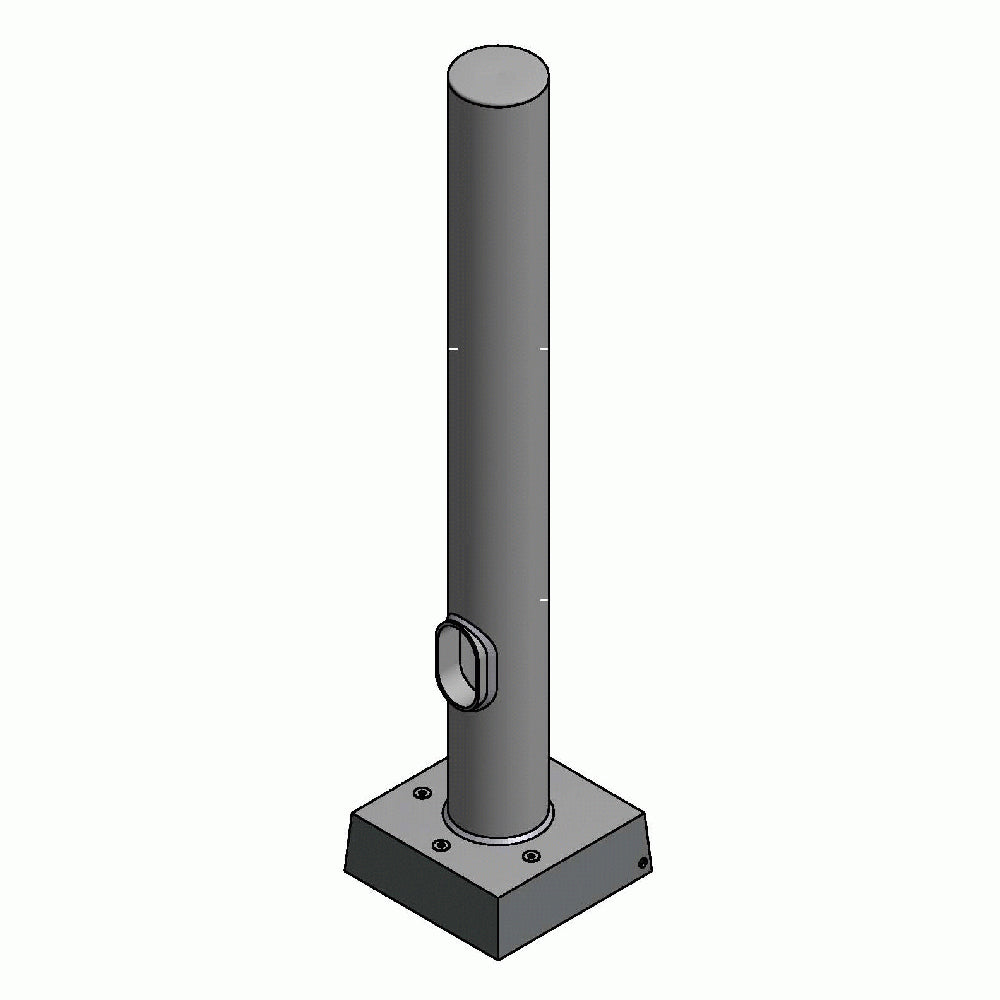

The shaft is extruded from all new 6063 alloy aluminum tubing and heat treated to produce a T6 temper. These standards may be drilled to accept side arm mounted luminaires. Mounting orientation must be provided. An aluminum tenon may also be supplied as standard.

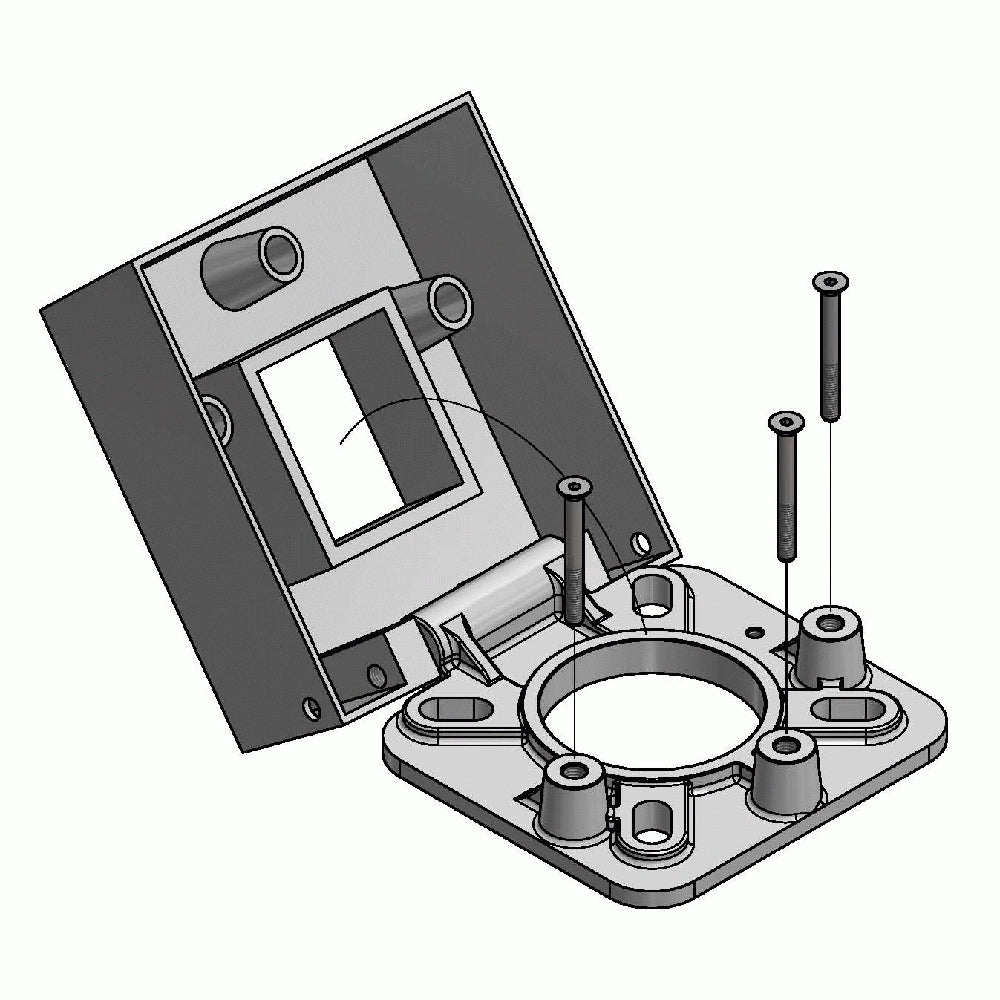

Cast from A356 alloy aluminum, the anchor base is heat treated to produce a T6 condition and inserted into the anchor base casting. The two pieces are joined by a continuous circumferential weld at the outside top and inside bottom of the anchor base. The base has a hinge pin to allow lowering of the pole to maintain luminaires.
| Catalog Number | Mounting Height | Effective Projected Area | Shaft Dimensions | Base Info | Base Plate | Cutsheet | Template | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 90 | 100 | 120 | Rd. | Wall Thick. | Anchor Bolt Diameter | Bolt Circle | Square | Height | ||||
| 605-4012-8 | 8 | 11.1 | 8.7 | 6.7 | 4.7 | 4 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-4012-10 | 10 | 8.5 | 6.5 | 4.9 | 3.2 | 4 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-4012-12 | 12 | 6.6 | 5 | 3.7 | 2.1 | 4 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5012-12 | 12 | 10.9 | 8.4 | 6.3 | 4.4 | 5 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5012-14 | 14 | 8.8 | 6.7 | 4.9 | 3.5 | 5 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5012-16 | 16 | 7.2 | 5.3 | 3.7 | 2.4 | 5 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5018-16 | 16 | 11.6 | 8.8 | 6.5 | 4.4 | 5 | 0.188 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5018-18 | 18 | 9.8 | 7.3 | 5.3 | 3.3 | 5 | 0.188 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5012-20 | 20 | 4.7 | 3.2 | 1.9 | 1 | 5 | 0.125 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-5018-20 | 20 | 8.2 | 6 | 4.1 | 2.6 | 5 | 0.188 | .75 x 20 | 7.5 - 9 | 10.75 | 3.5 | View | View |
| 605-6018-20 | 20 | 12.8 | 9.5 | 6.8 | 4.9 | 6 | 0.188 | .75 x 20 | 8.5 - 9 | 10.75 | 3.5 | View | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
