Description

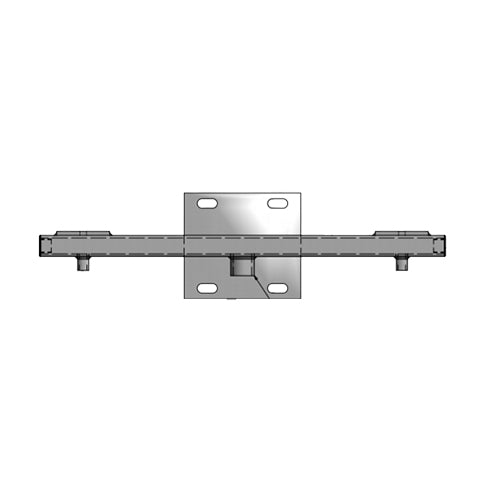

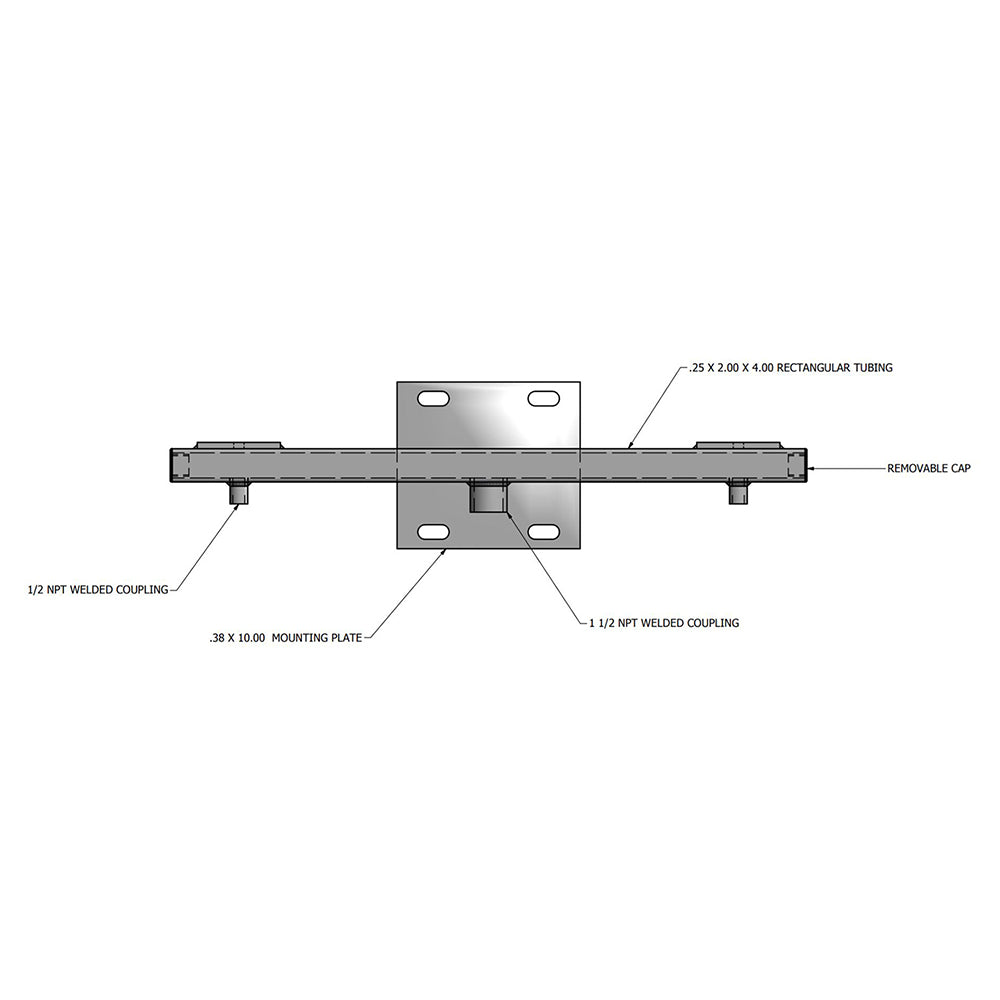

Our CRS brackets are fabricated from mild carbon rectangular steel tubing with horizontal fixture mounting plates. They are designed to be side mounted to the pole shaft using U-bolts. U-bolts and mounting plate sizing is determined by the pole shaft size. Brackets are finished to match the pole.
| Catalog Number | Arm Span | Effective Projected Area | Fixture Quantity | Bracket Weight (lb) | Cutsheet |
|---|---|---|---|---|---|
| CRS-02 | 3.17' | 1.9 | 2 | 49 | View |
| CRS-03 | 5.67' | 2.6 | 3 | 77 | View |
| CRS-04 | 8.17' | 3.3 | 4 | 104 | View |
| CRS-05 | 10.67' | 4 | 5 | 131 | View |
| CRS-06 | 13.17' | 4.75 | 6 | 160 | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
