Description

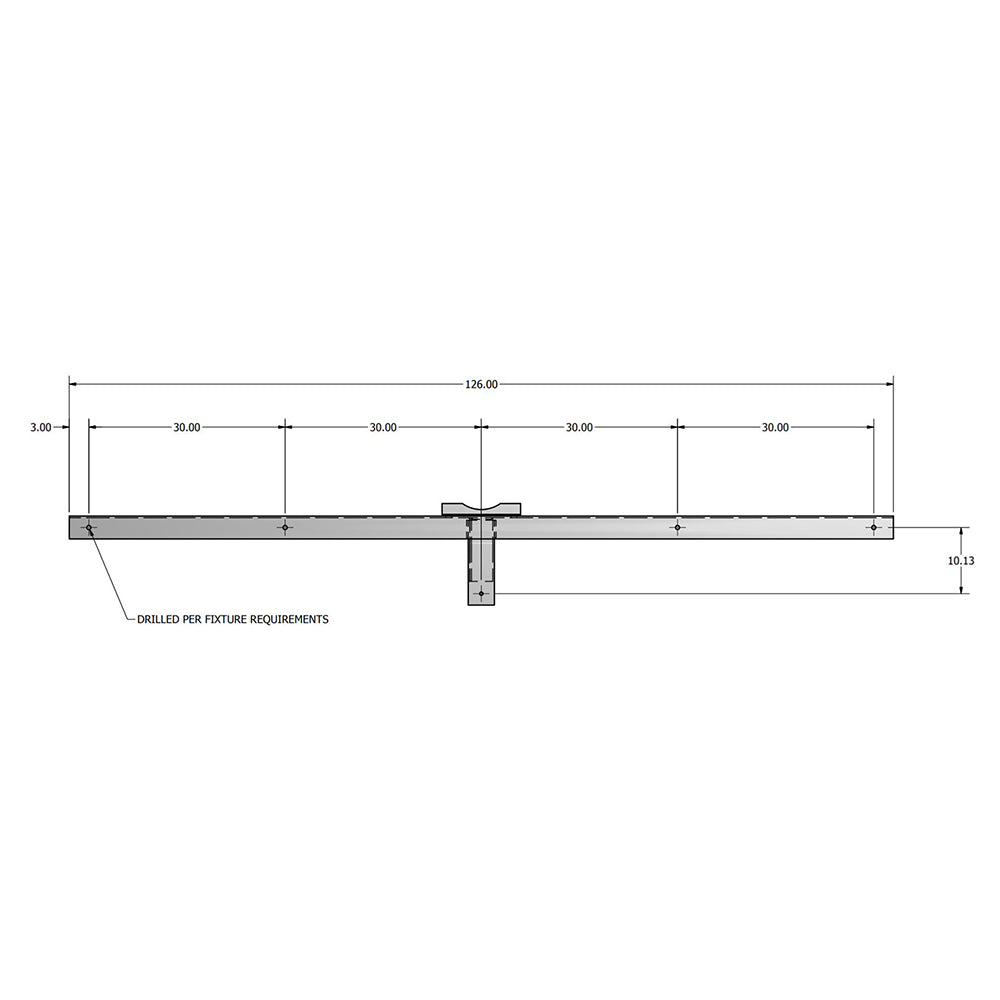

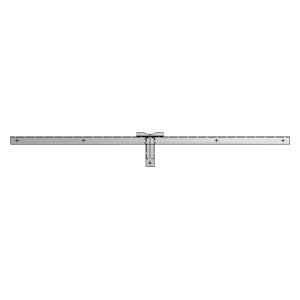

Our series PXB cross arm brackets are constructed with 3-1/2" x 1-1/2" steel angle iron. The brackets found here are design for direct mounting to metal poles. Each bracket has a maximum capacity of two (2), three (3), four (4), or five (5) floodlights, depending on the mounting configuration. Our brackets come complete with mounting hardware and are finished to match the pole.
| Catalog Number | Num. of Fixtures | Effective Projected Area | Shipping Weight (lb) | Cutsheet |
|---|---|---|---|---|
| PXB-2 | 2 | 1.05 | 26 | View |
| PXB-3 | 3 | 1.75 | 55 | View |
| PXB-4 | 4 | 3.7 | 71 | View |
| PXB-5 | 5 | 4.5 | 90 | View |
While we don’t have specific foundation details for light poles, these are typically determined by a local electrical engineer or the manufacturer's representative, as they depend on factors like soil conditions and local regulations. Once you've selected the pole you need, please provide us with the brand name, complete SKU, and quantity. We'd be happy to assist you further with a detailed quote.
