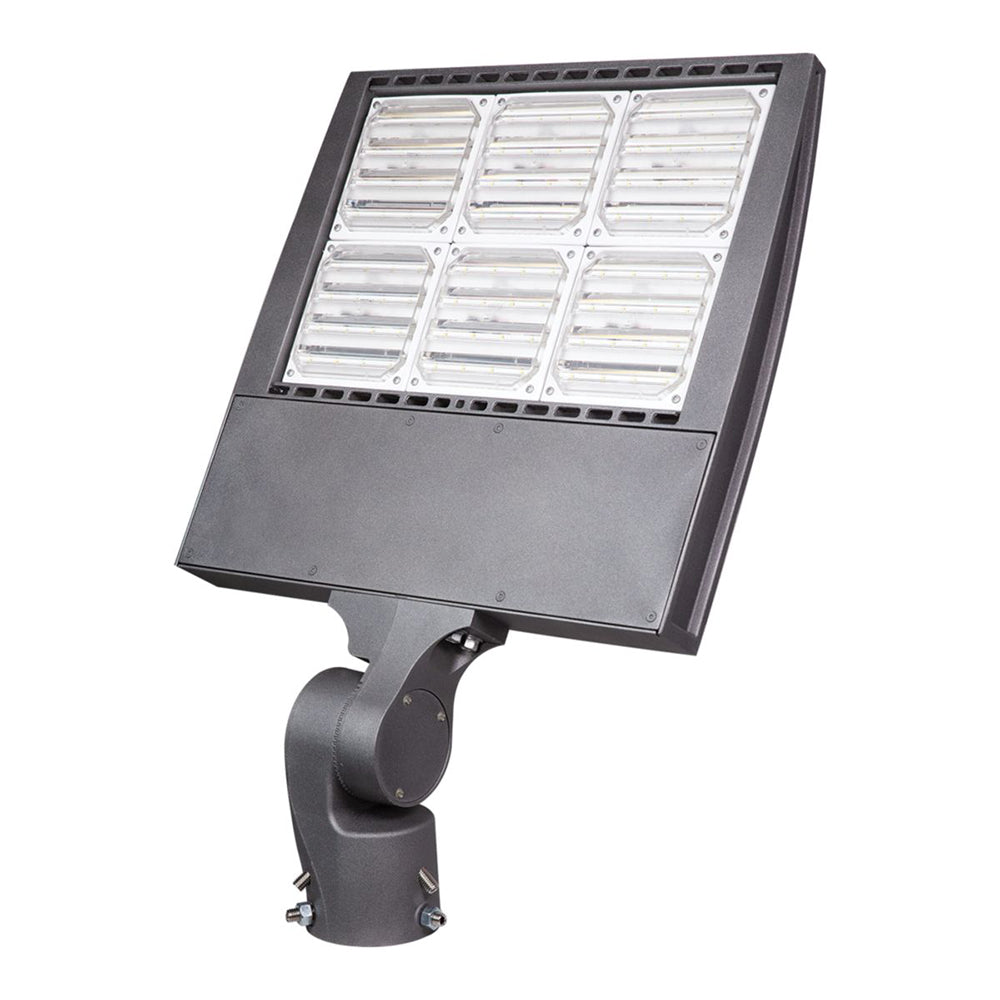

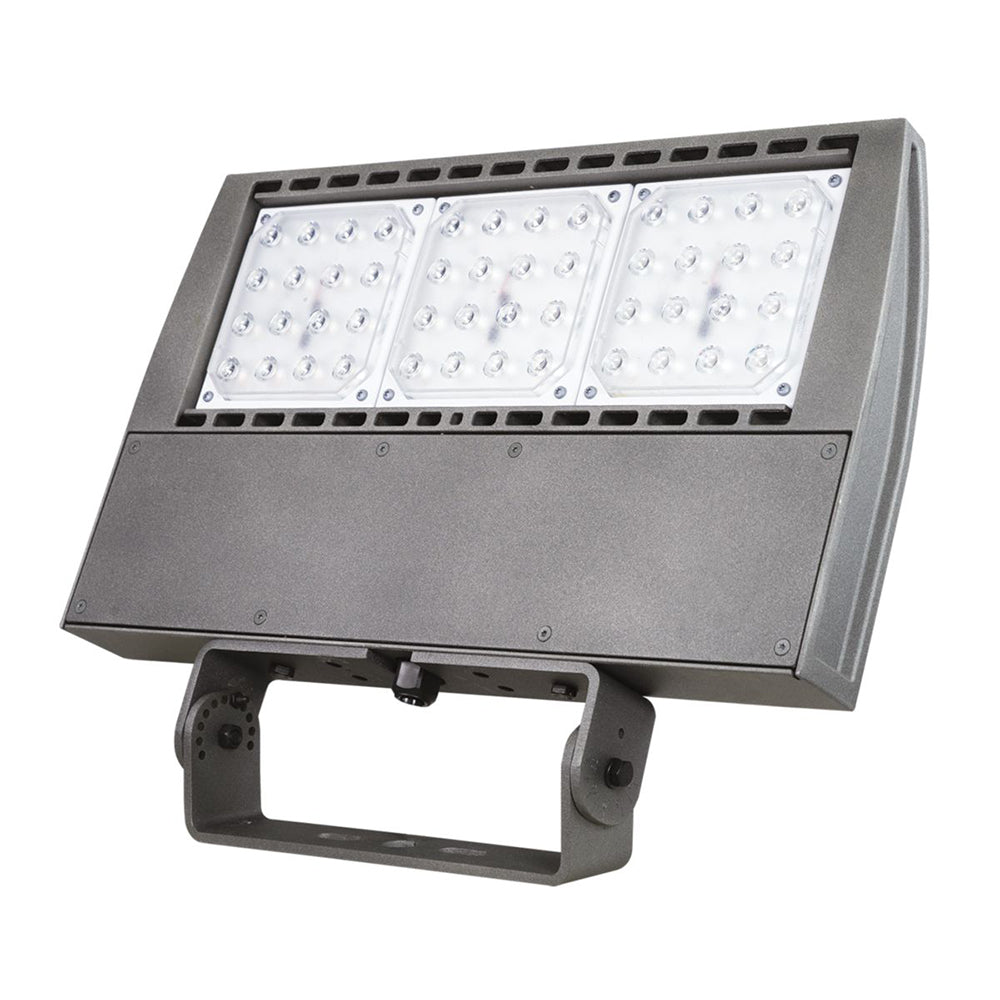

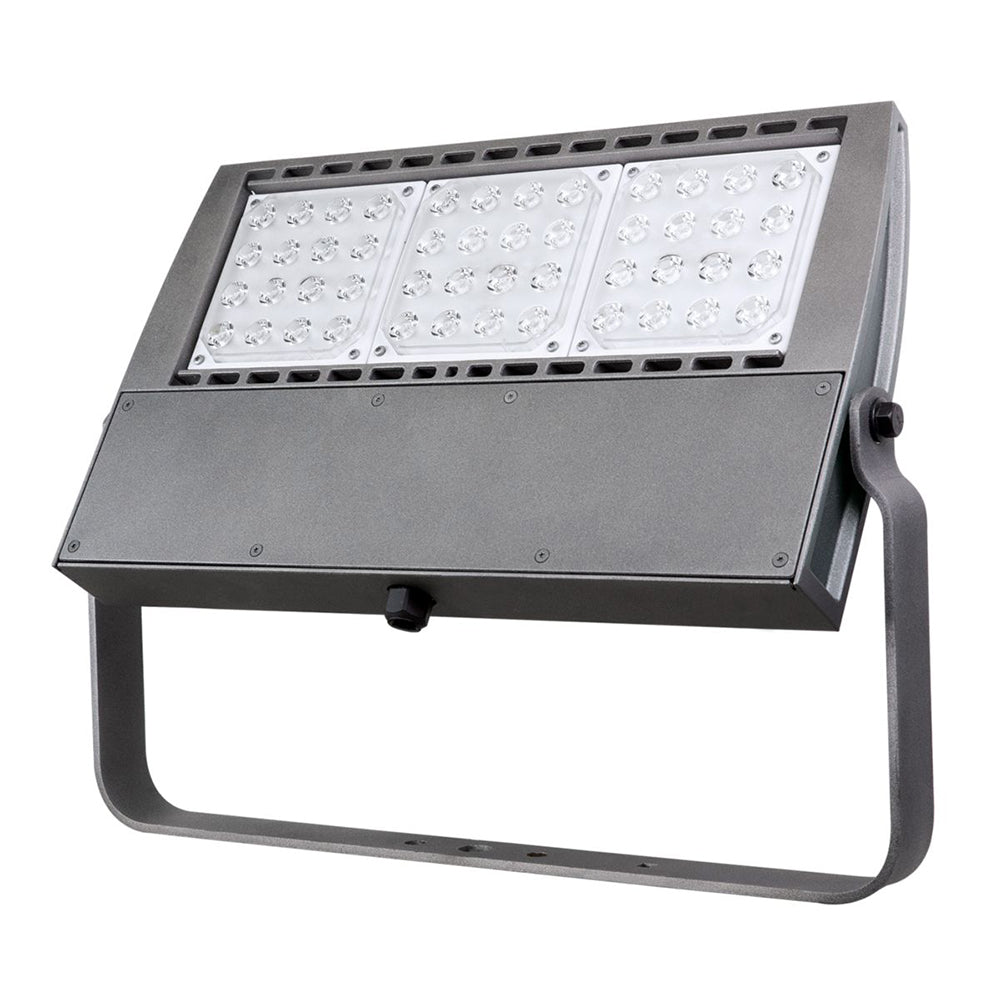

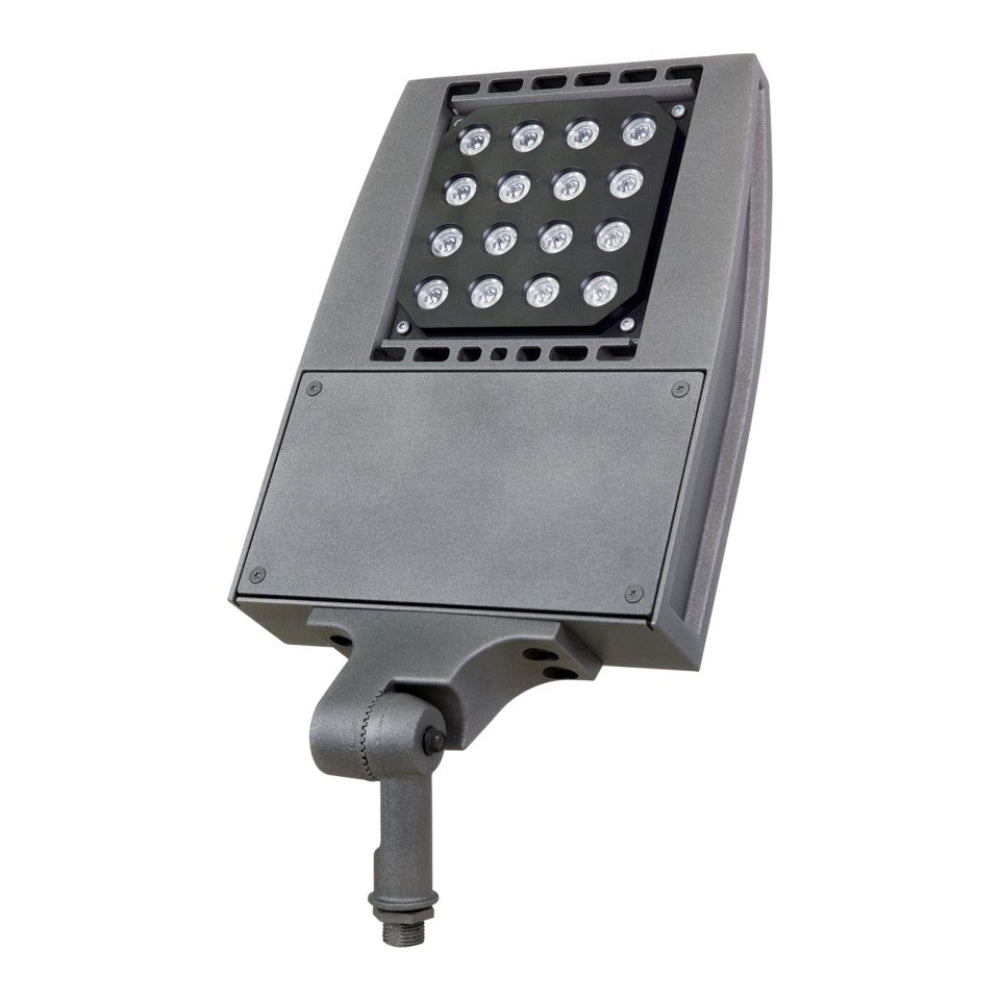

McGraw-Edison GFLD Galleon II Floodlight

McGraw-Edison GFLD Galleon II Floodlight

The Galleon II Floodlight delivers high-performance optical control in a scalable platform, utilizing eight NEMA type flood optics and a host of mounting options to solve even the most difficult design challenges. Pristine color rendering and color-over-angle performance set the standard for lighting quality, providing stunning results on every project.

Features

• Choice of eight IES NEMA type flood optics
• Lumen packages range from 1,261 to 36,393 (18W - 368W)
• Available in 2700K, 3000K, 3500K, 4000K CCT and Amber 590nm
• -40°C to 40°C operating range, optional 50°C high ambient
• 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
• IP66 and IK10 rated housing and light square
• 3G vibration rated
• Pole, slipfitter, yoke, trunnion, wall, and knuckle mount options
• Five-year warranty

Product Files

Click for McGraw-Edison GFLD Galleon II Floodlight Spec Sheet

Click for McGraw-Edison GFLD Galleon II Floodlight Installation Instructions

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square House Side Shield (HSS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Glare Reduction Shield (GRS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Perimeter Fence Shield (PFS)

Click for Outdoor Field Rotatable Optics Installation Instruction Sheet

Click for McGraw-Edison GFLD Galleon II Floodlight Features and Benefits

Click for McGraw-Edison GFLD Galleon II Floodlight Product Introduction

Click for After Hours Dim Supplemental Guide
