Mcgraw Edison ISS Impact Elite Quarter Sphere Outdoor Wall Lights

Mcgraw Edison ISS Impact Elite Quarter Sphere Outdoor Wall Lights

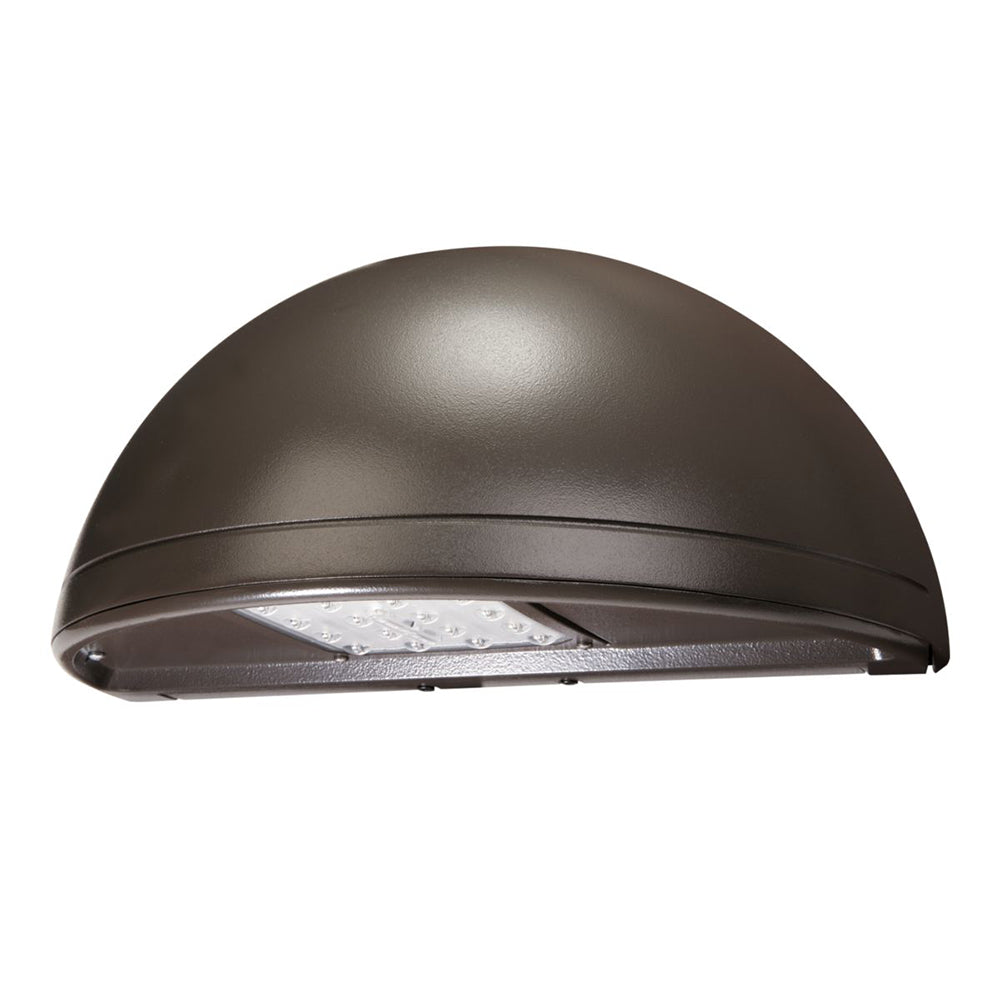

The IMPACT Elite Quarter Sphere cutoff wall luminaire makes an ideal complement to site design. Rugged construction and full range of optical packages provide facade and security lighting for light restricted zones surrounding schools, office complexes, apartments, and recreational facilities. U.L. and cUL listed for wet locations in down mount applications and damp locations in up mounted applications.

Features

• Choice of 10 high efficiency, patented AccuLED Optics™
• Lumen packages range from 2,459 - 8,123 (20W - 66W)
• Available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K or 5700K CCT
• Greater than 90% lumen maintenance at 60,000 hours
• Wireless controls and monitoring options available
• IP66 enclosure rating
• Five-year warranty
• Hook-N-Lock mounting standard for quick installation

Product Files

Click for McGraw-Edison Impact Elite Wall Luminaire spec sheet

Click for McGraw-Edison Impact Elite Wall Luminaire spec sheet (Legacy)

Click for Battery Backup and Shunt Relay instruction sheet

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Glare Reduction Shield (GRS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Perimeter Fence Shield (PFS)

Click for McGraw-Edison Impact Elite LED Installation Instructions

Click for Outdoor Field Rotatable Optics Installation Instruction Sheet

Click for Amber Technical Overview

Click for After Hours Dim Supplemental Guide

Click for Connected Communities Product Selection Guide
