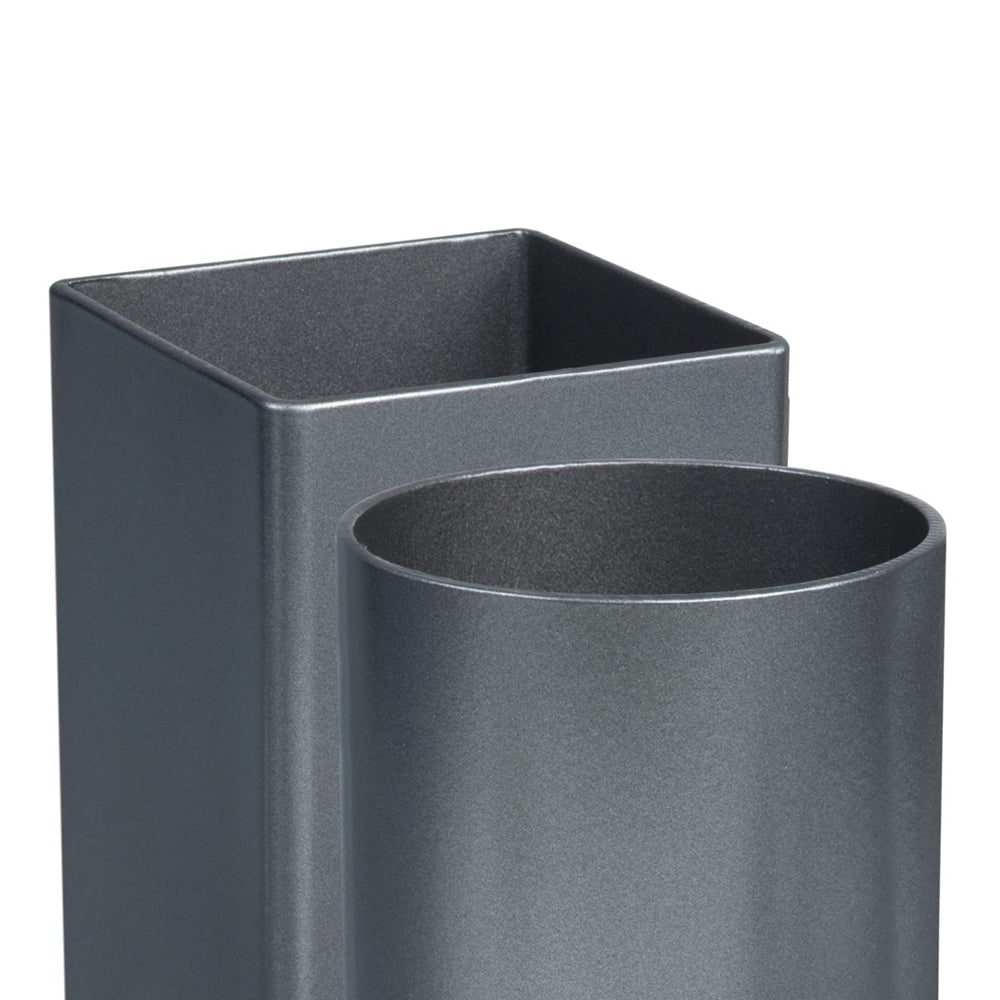

McGraw-Edison McGraw-Edison Steel Poles
Steel poles are manufactured of ASTM A500 grade steel, maintain a minimum wall thickness of .120" and are circumferentially welded to the base. Anchor bolts per ASTM A576. Nuts washers and threaded portion of bolt are hot dip galvanized. Poles are finished in a premium TGIC polyester powder coat for superior weatherability characteristics.
Features
- ASTM A500 grade "B" shaft
- ASTM A36/A572 grade base plate with base cover
- 8-45 mounting heights
- Reinforced hand hole assembly
- Drilled or tenon mounting configurations
- Seven fixture drilling configurations
- Seven optional finish colors
- Four bolt anchorage
Product Files
Click for Outdoor Poles SSS Square Straight Steel
Click for Outdoor Poles RSS Round Straight Steel
Click for Outdoor Poles RTS Round Tapered Steel
Click for Outdoor Poles STS Square Tapered Steel
Click for Invue, Outdoor Poles 1994 AASHTO Isotach Wind Map
Click for Invue, Outdoor Poles Installation Instruction Sheets for Poles
