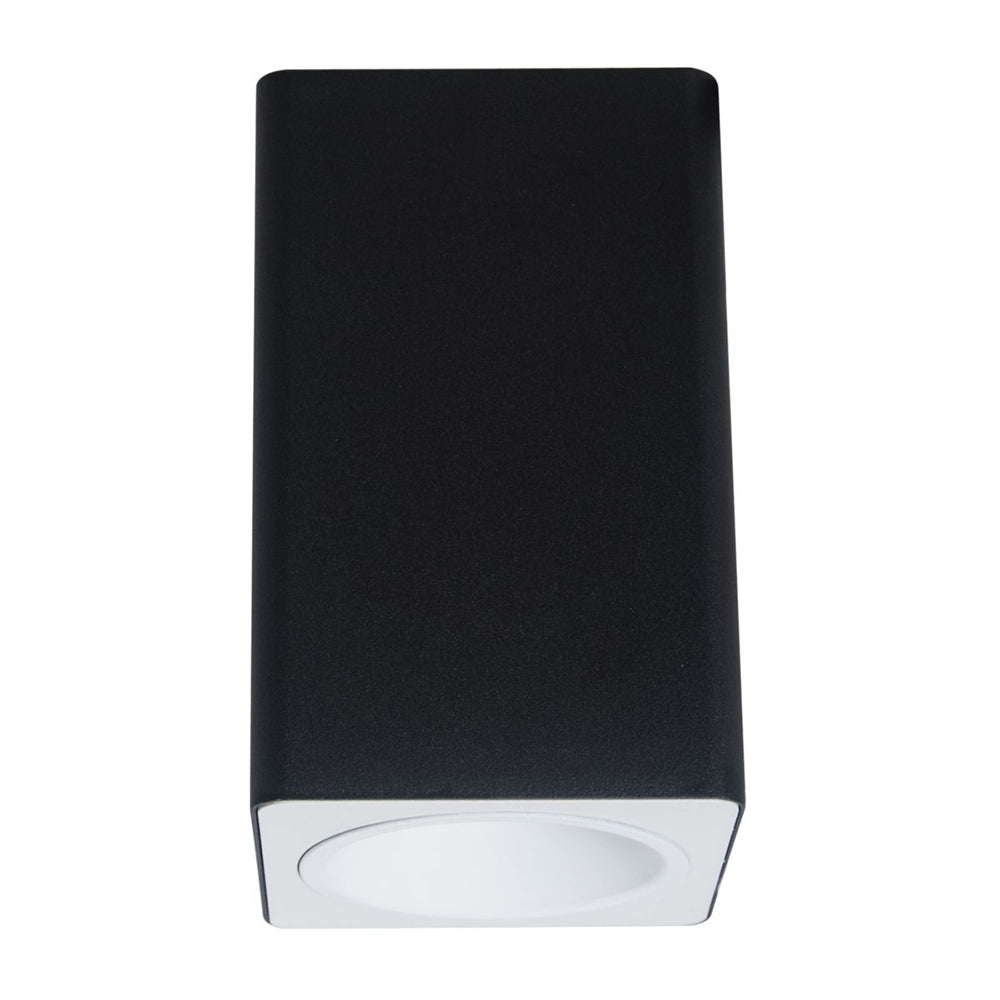

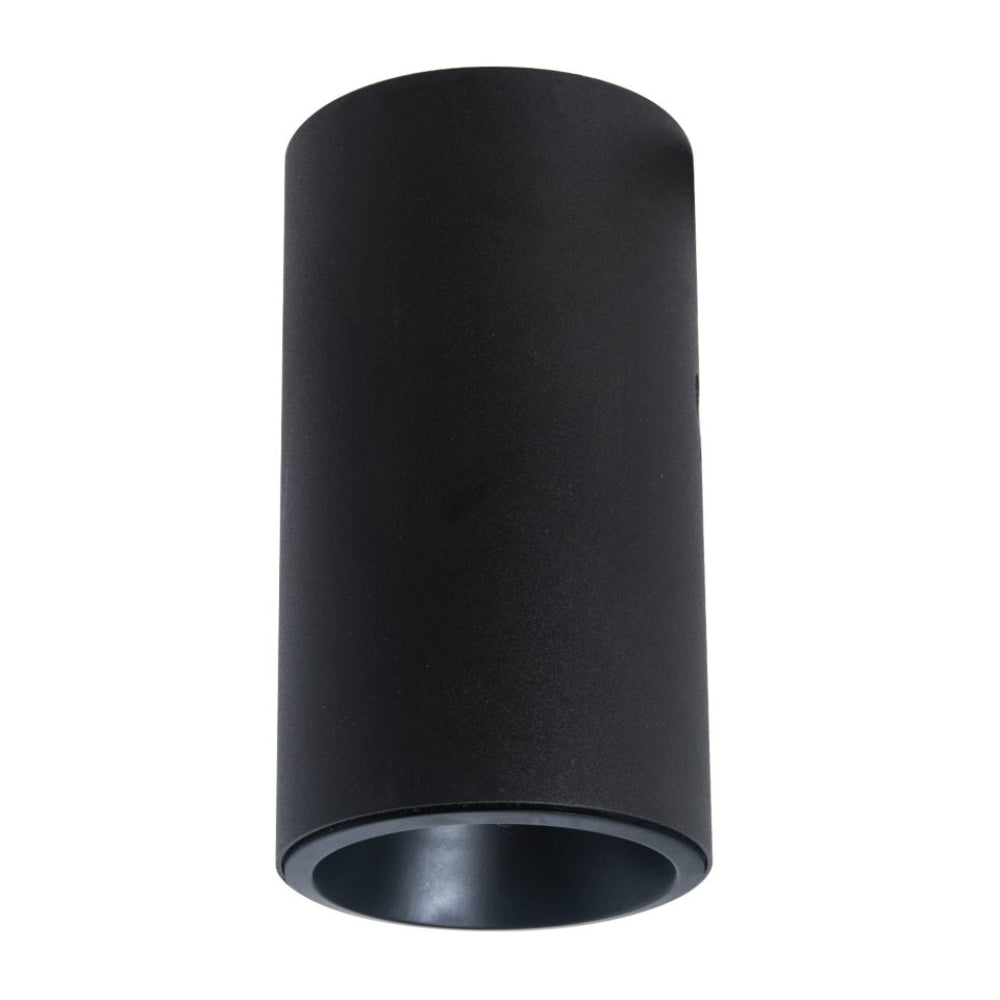

Portfolio Lighting 2" Shallow Cylinder LSRS2B, LSSQS2B Round and Square LED

Portfolio Lighting 2" Shallow Cylinder LSRS2B, LSSQS2B Round and Square LED

Designed to discretely complement any space, the 2" LED shallow round and square cylinders are offered in wall- or ceiling-mount with optional pendant kits. Optical system provides superior light control and low aperture brightness while delivering over 80 lm/W. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional remote drivers available. The 2-inch cylinders is ideal for replacing existing incandescent cylinders with energy-saving LED.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Distributions: 15°, 25°, 40° and 55°
• Ceiling, wall, stem, aircraft cable, Lux wire power over cable
• Shallow extruded housing, Die-cast or spun aluminum reflectors
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
• Lumens: 500, 1,000 1,500 and 2,000
• Colors: Matte Black, Matte White, Bronze and Silver paint finishes
• Standard 0-10V dimming down to 1%, ENERGY STAR® qualified

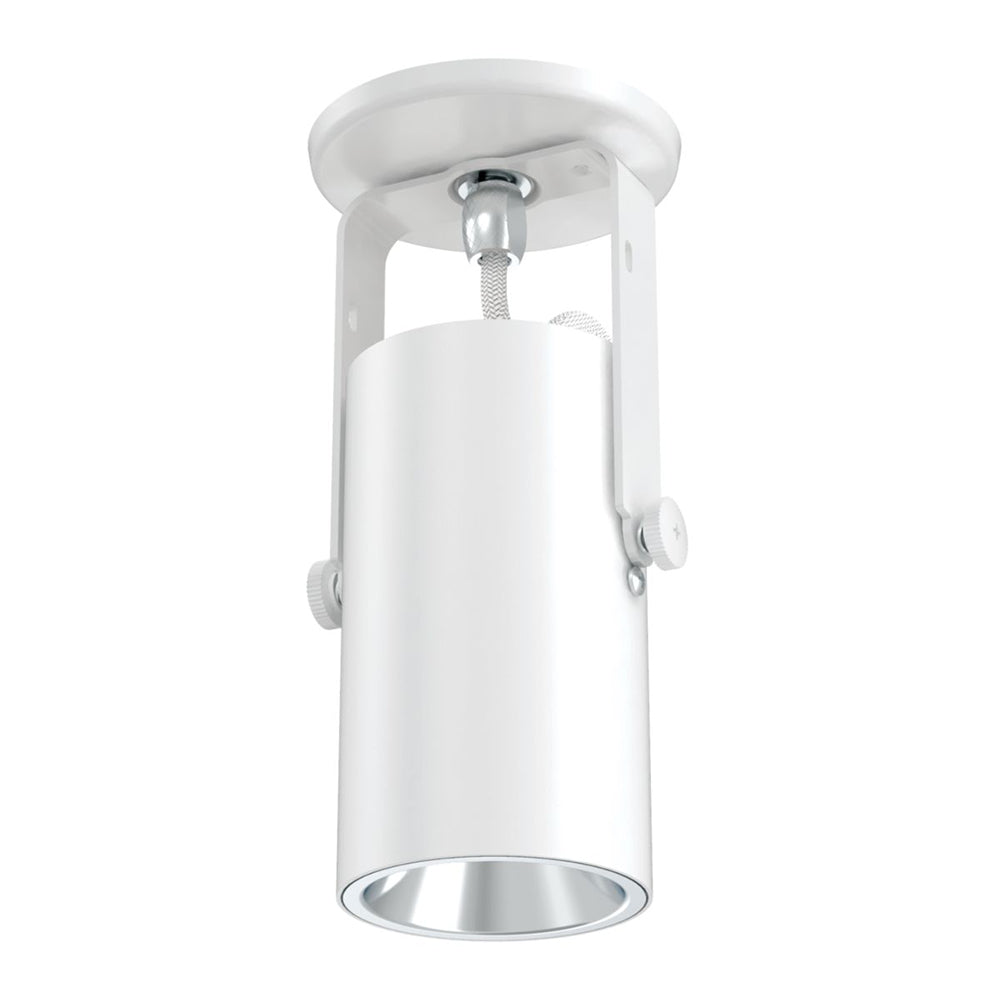

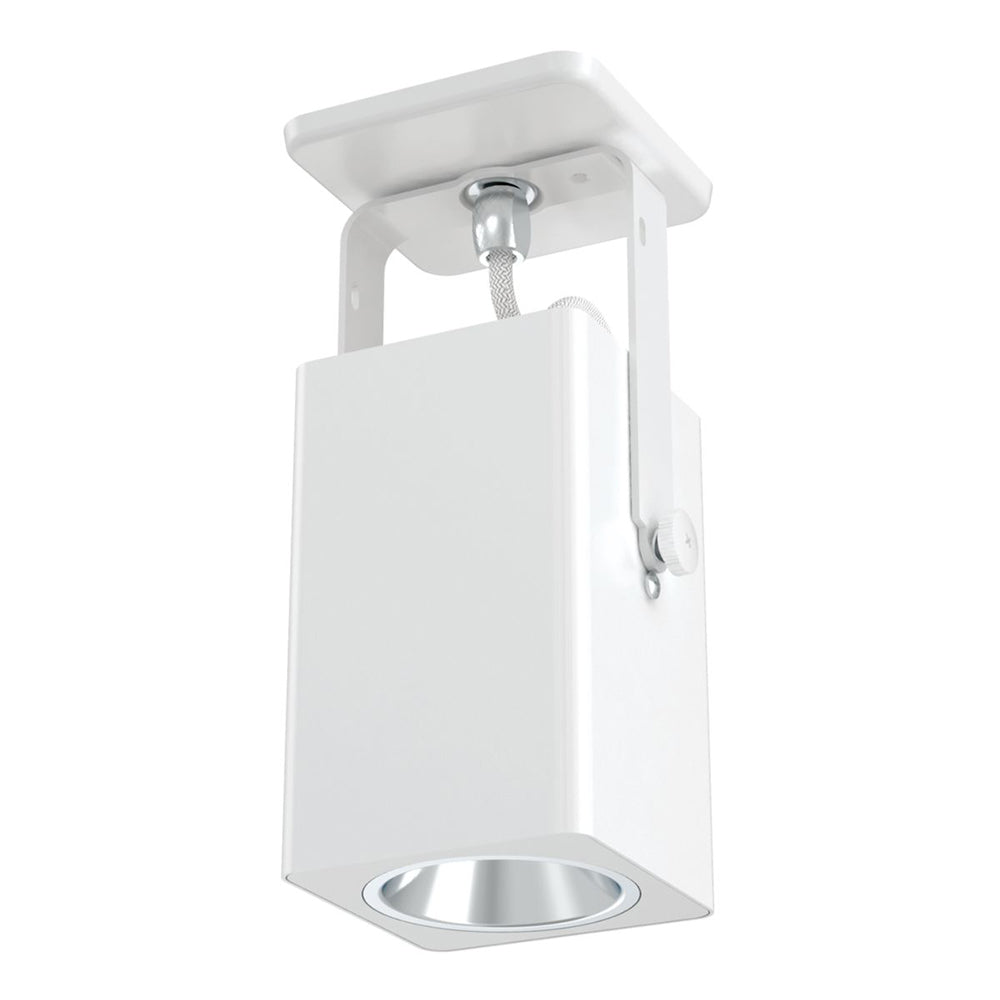

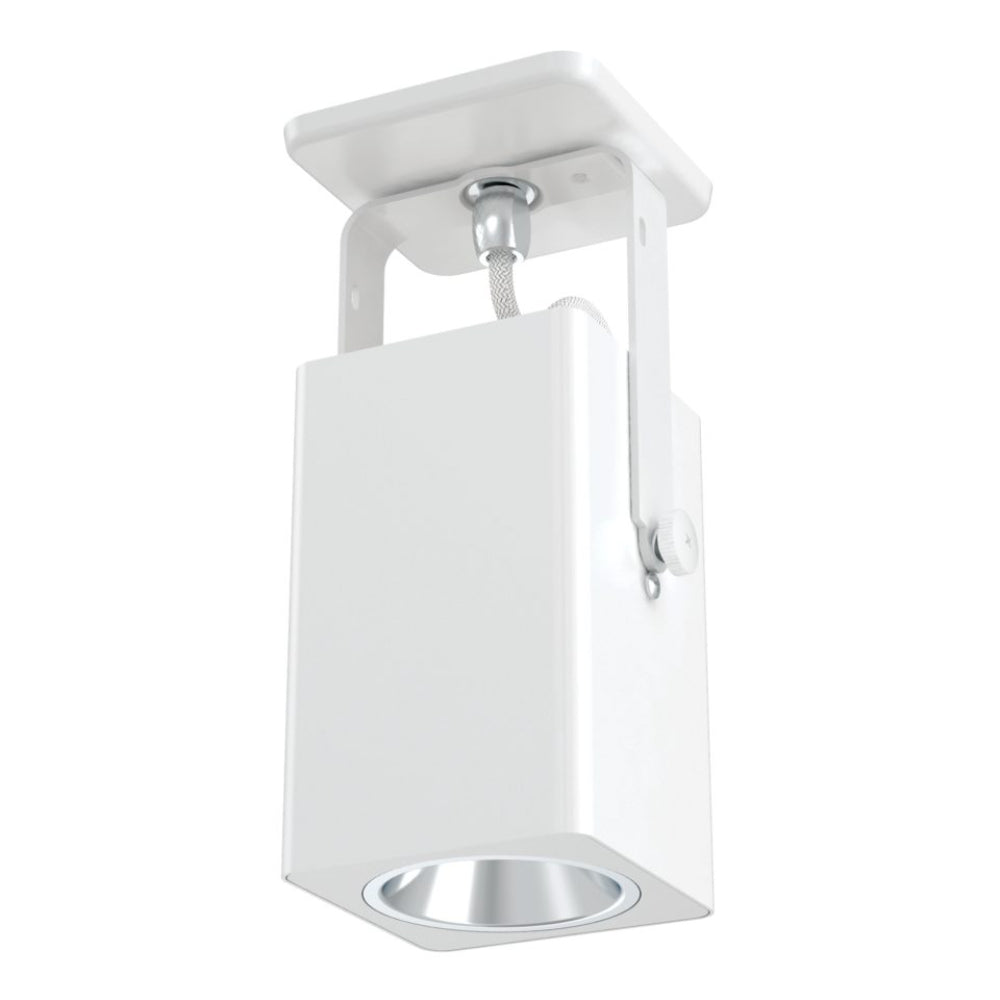

• Down, up/down and adjustable yoke
• Remote driver
