Portfolio Lighting 6" Shallow Cylinder LERS6C/LESQS6C Round and Square LED

Portfolio Lighting 6" Shallow Cylinder LERS6C/LESQS6C Round and Square LED

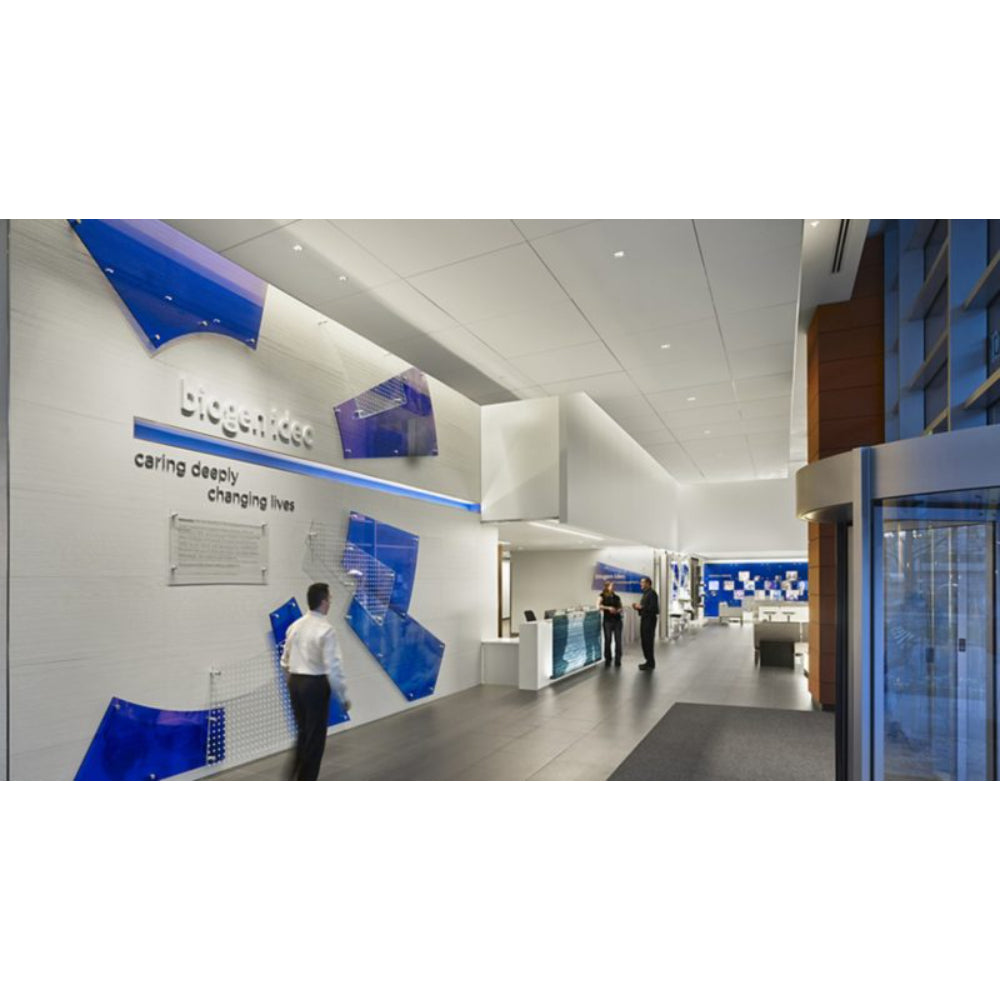

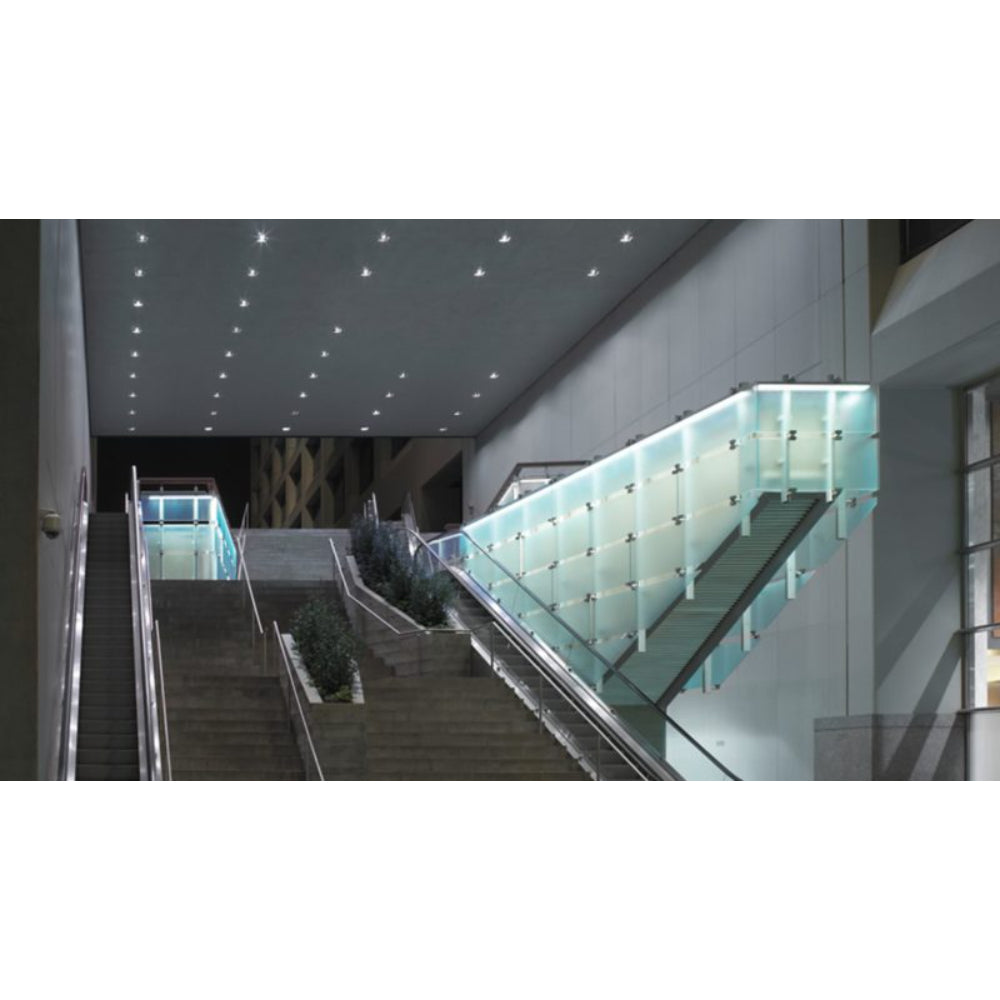

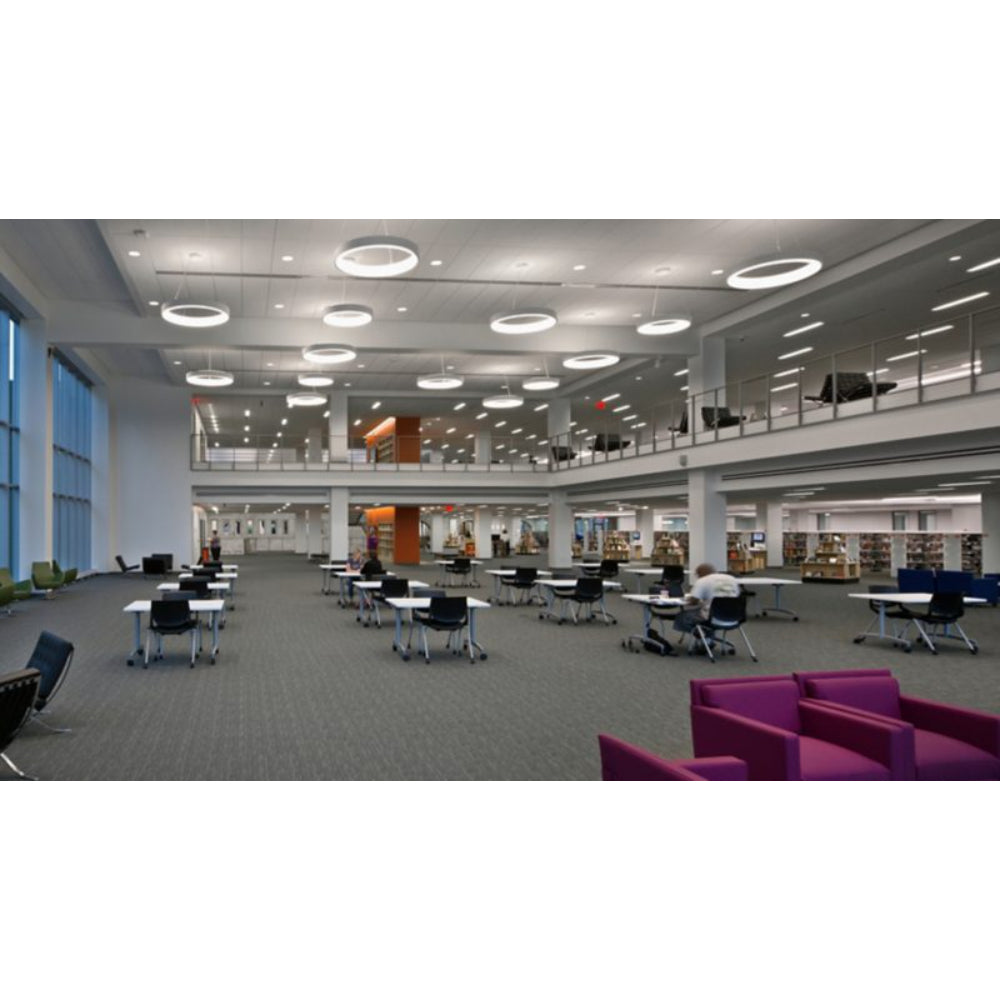

Accent architectural spaces

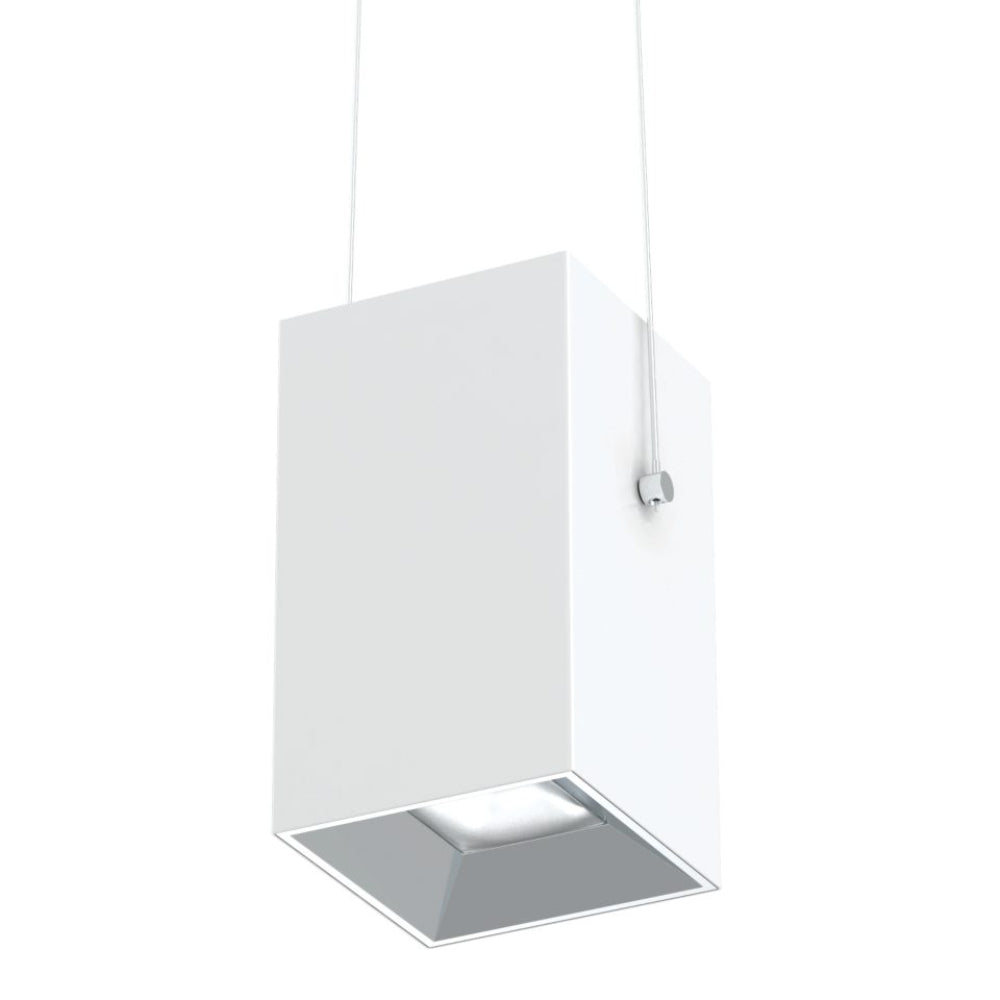

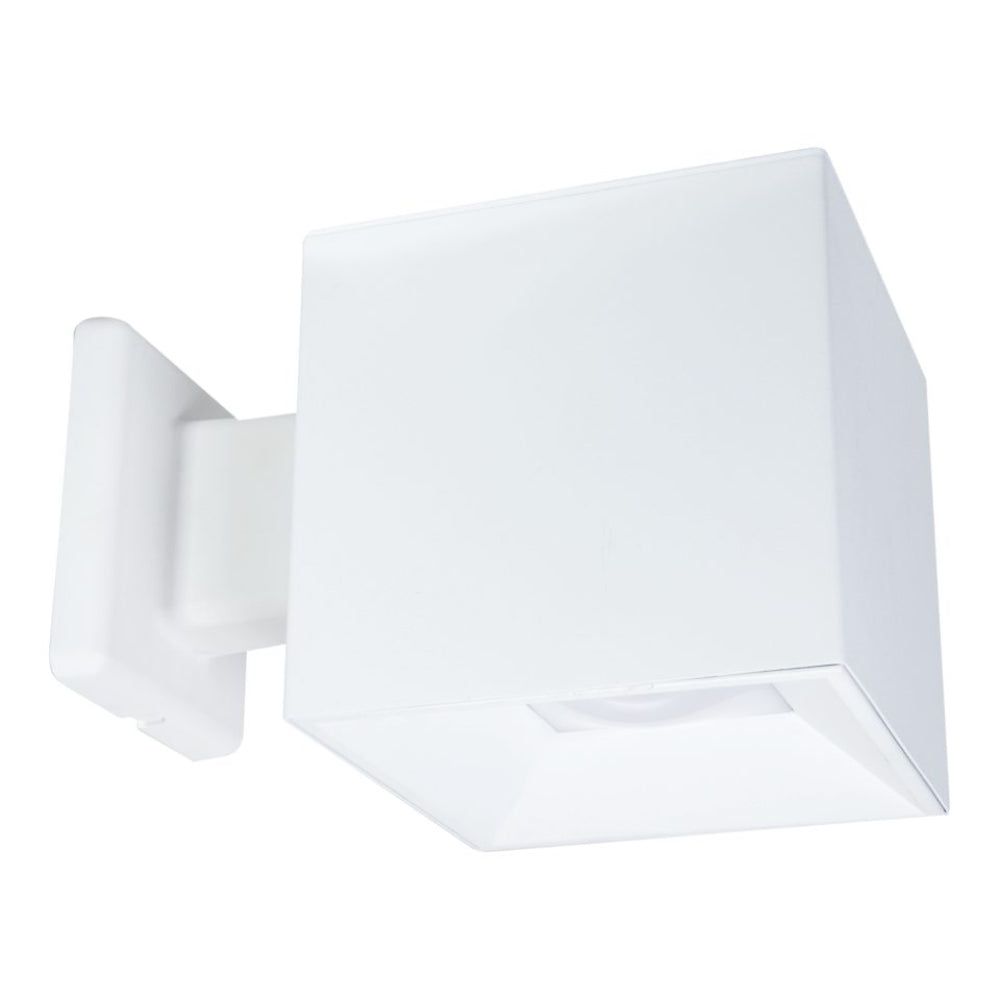

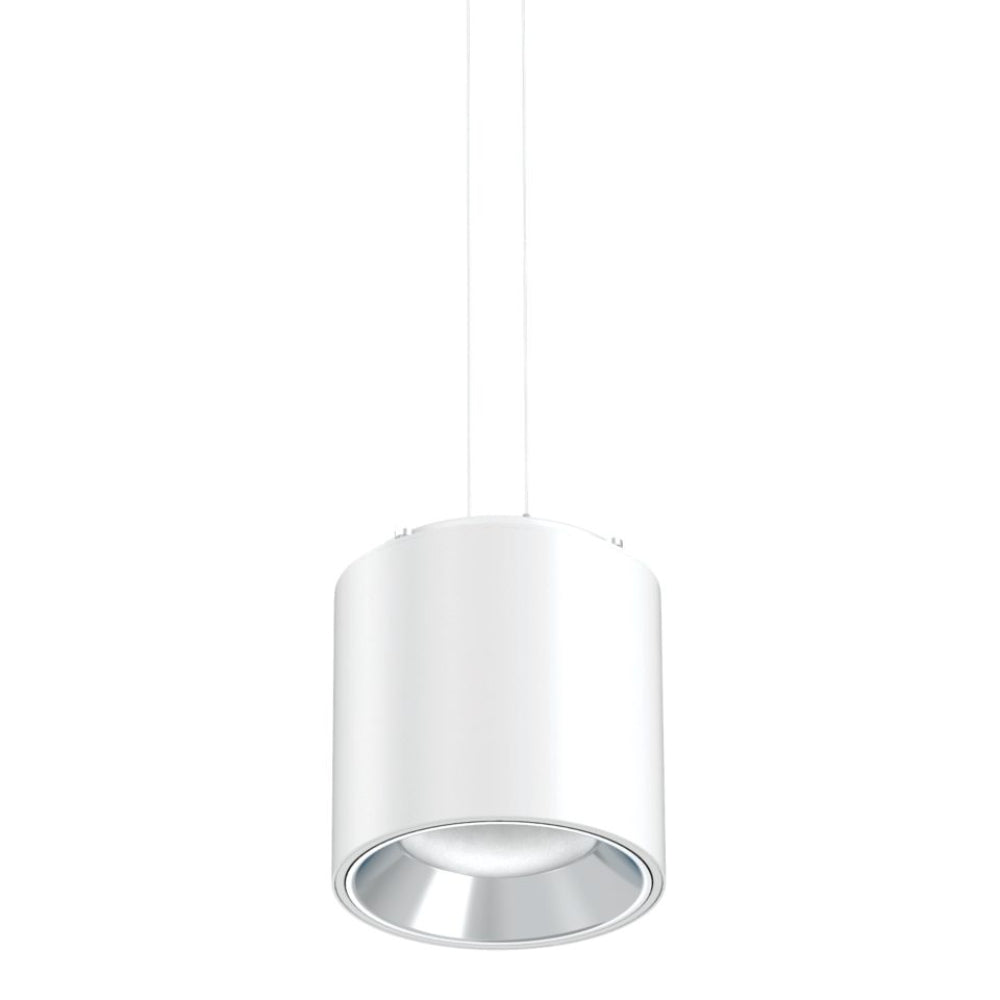

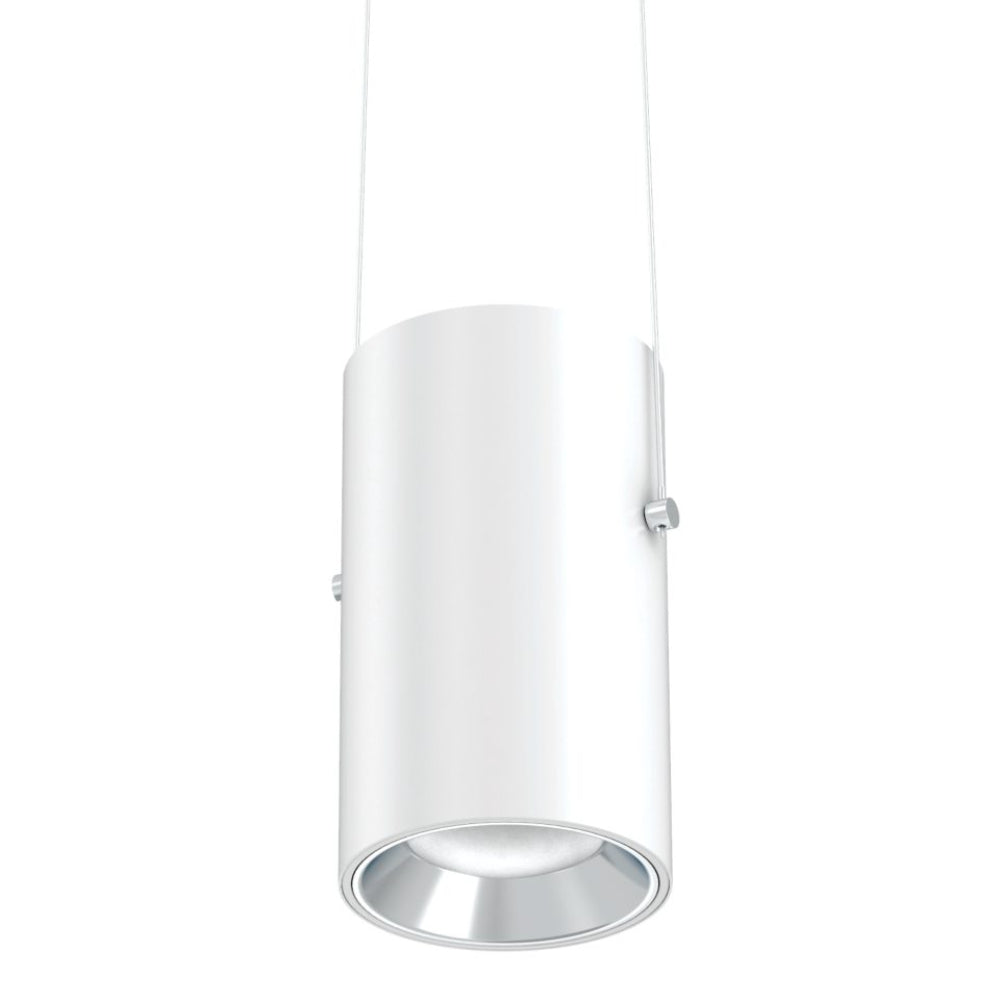

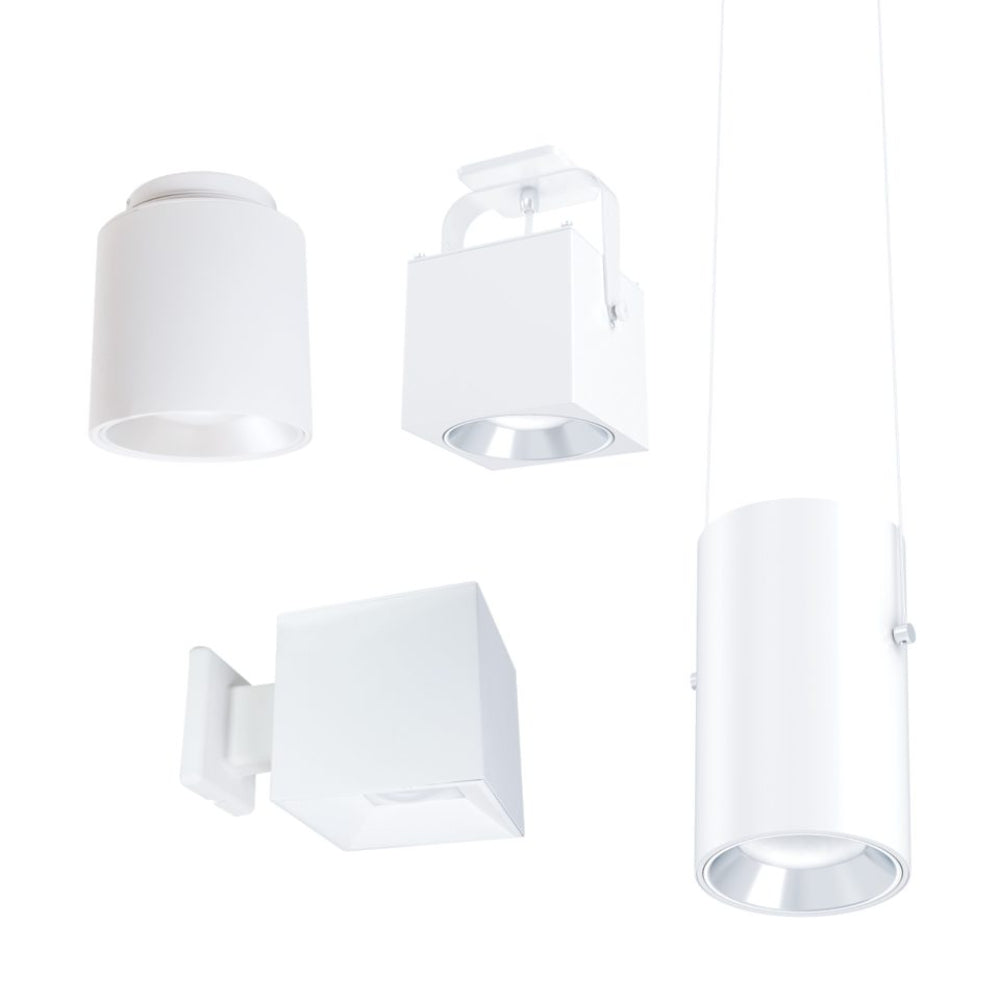

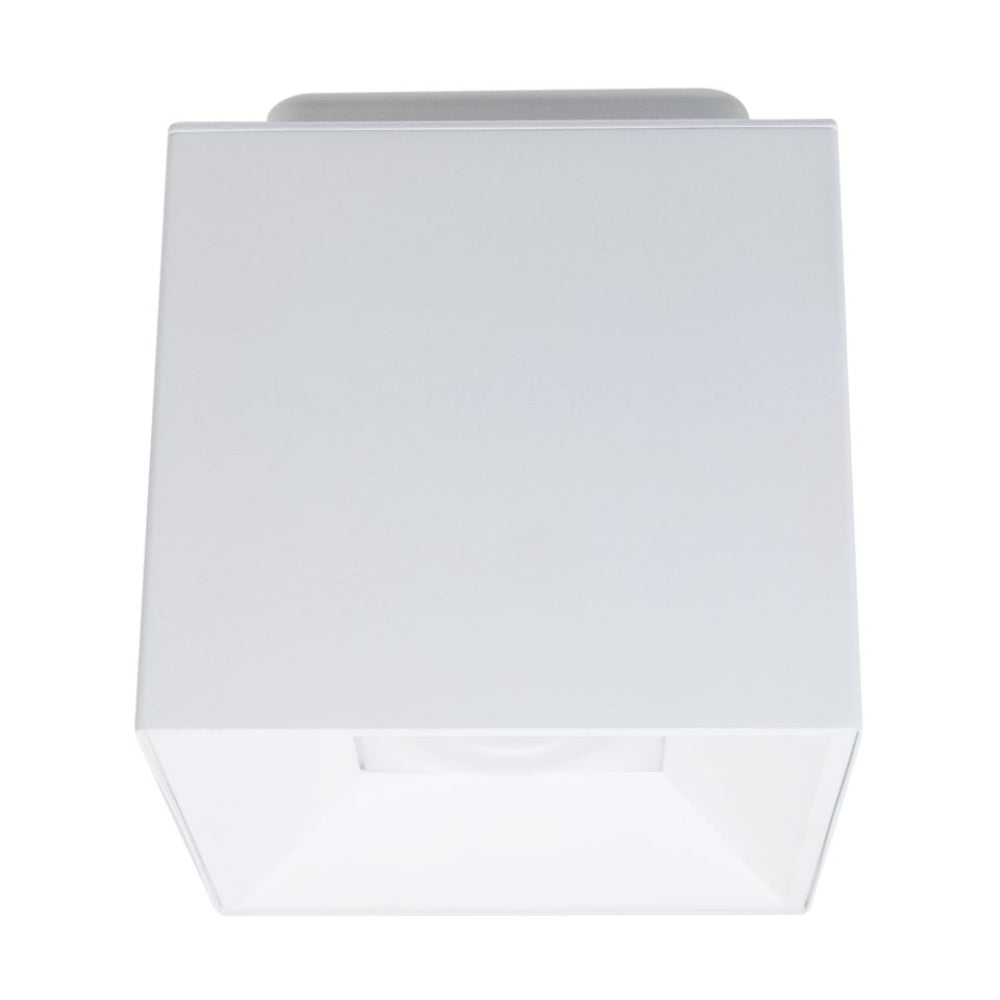

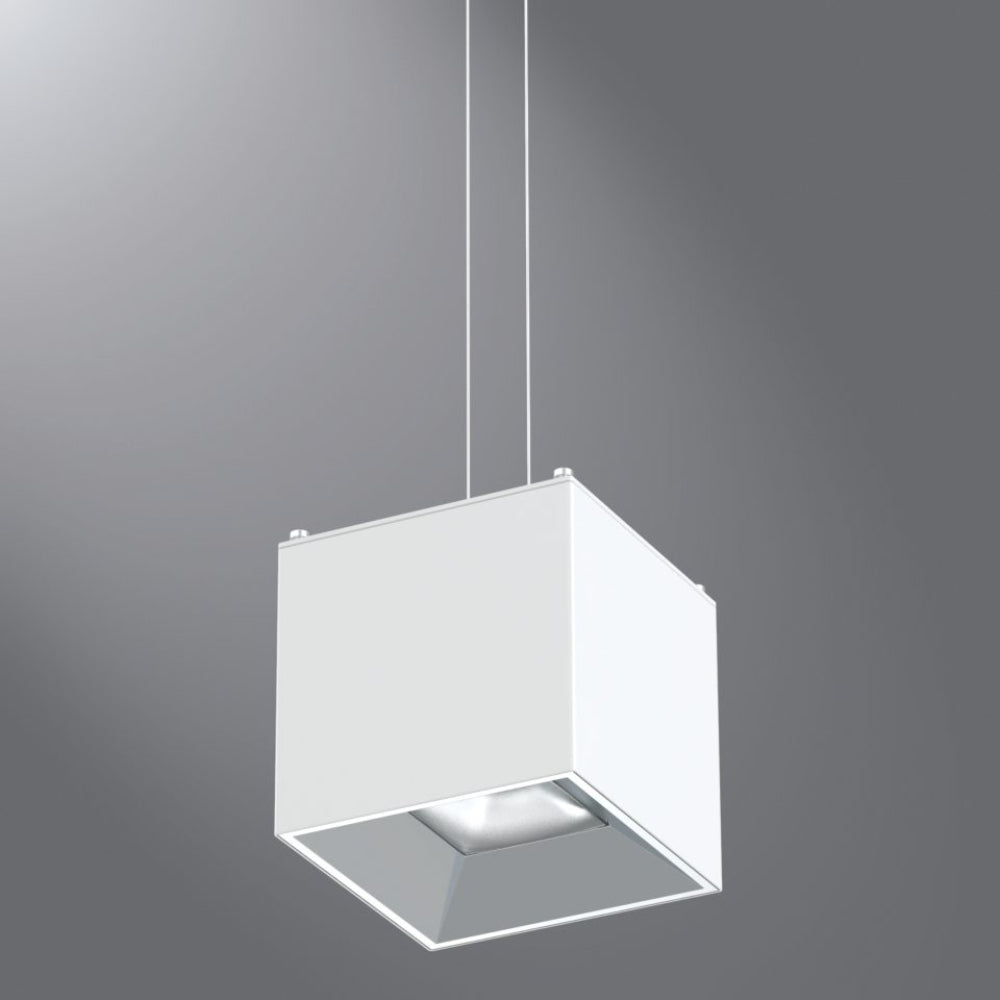

Designed to compliment any space, the 6" LED shallow round and square downlight cylinders, also available as a wall wash cylinder, can be wall-, ceiling- or pendant-mount or hung by aircraft cable. A two-stage system produces smooth distribution with excellent light control and low aperture brightness. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional integral and remote drivers available.

High-performing optical system

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

VividTune fine-tuning of light

Whether you’re looking to optimize productivity or simply add dramatic flair, VividTune's tunable white technology allows you to adjust the color temperature from warm white to cool white, creating an environment that fosters productivity and concentration.

D2W™ Dim-to-warm solution

Bring the warm, dim glow reminiscent of traditional incandescent and halogen sources into your space, for a fraction of the energy consumption, with our Dim-to-Warm solution.

Features

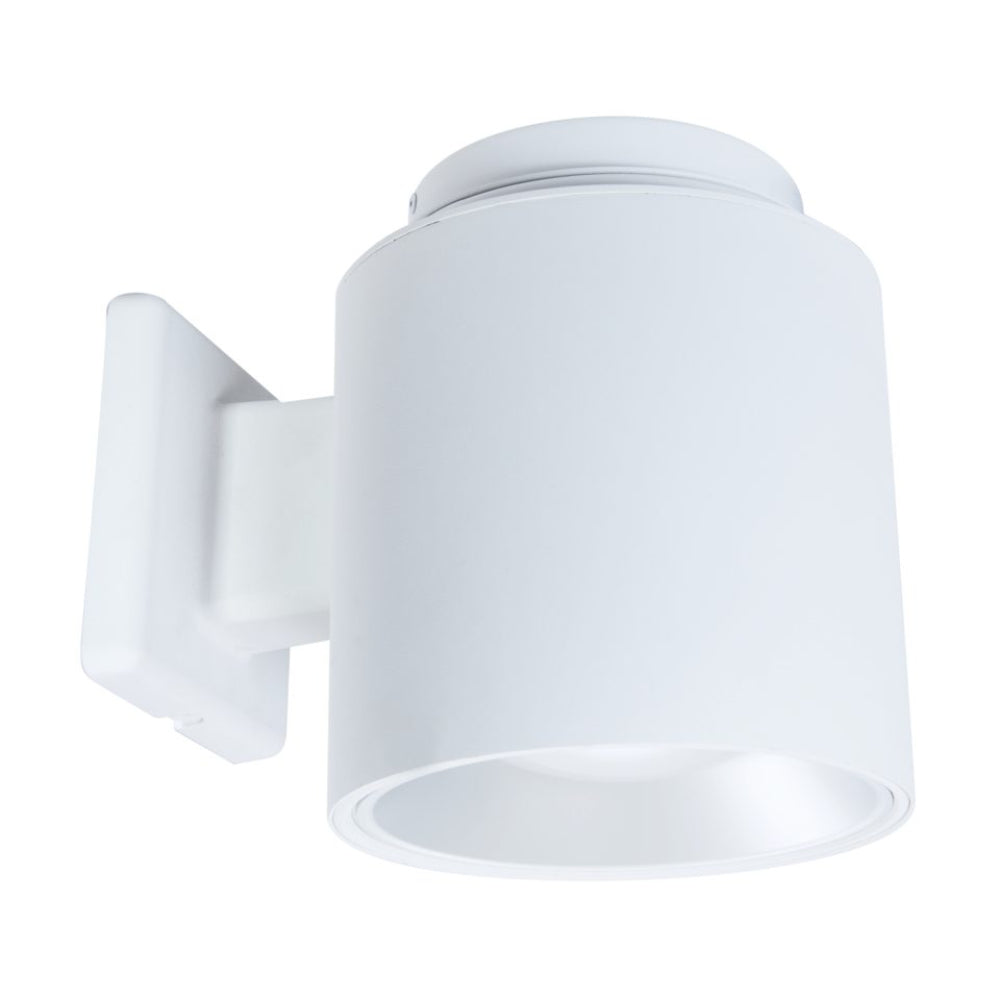

• Ceiling, wall, stem, aircraft cable, Luxwire power over cable
• Shallow extruded aluminum housing, Diecast or spun aluminum reflectors
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 90, 97 or 98, D2W™ option from 3000K to 1850K
• Lumens: 1,000-4,000, W2N Tunable White 2700K-6500K or 2000K-5000K
• Colors: Matte Black, White, Bronze and Silver paint finishes
• Standard 0-10V dimming down to 1%, ENERGY STAR® qualified
• 5-year warranty
• Integral or remote driver options

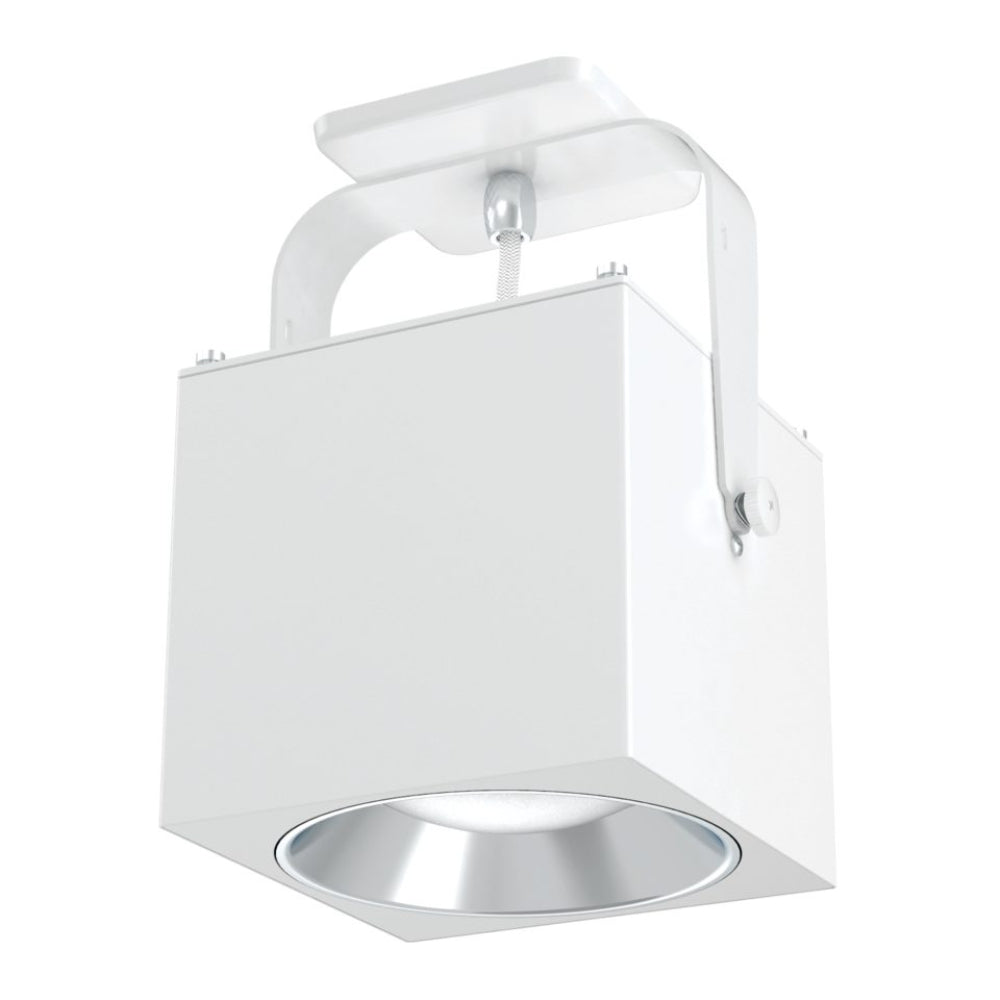

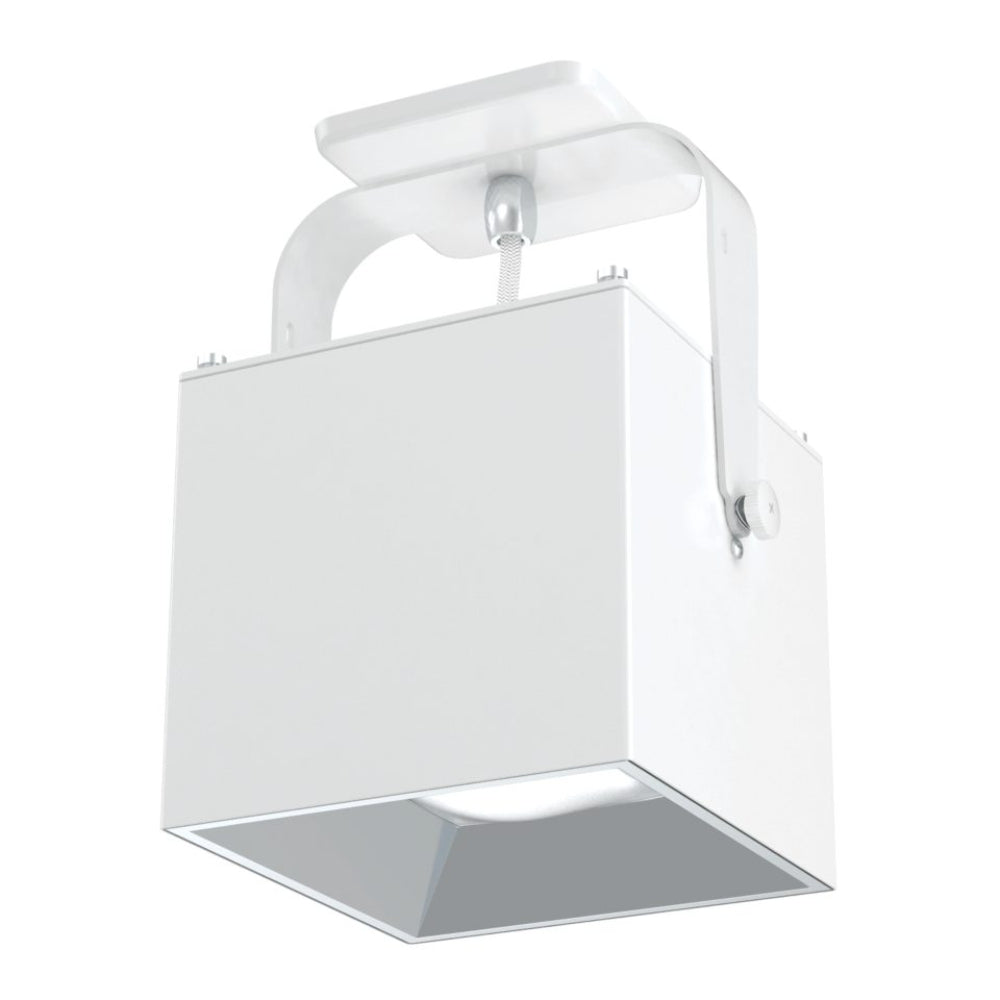

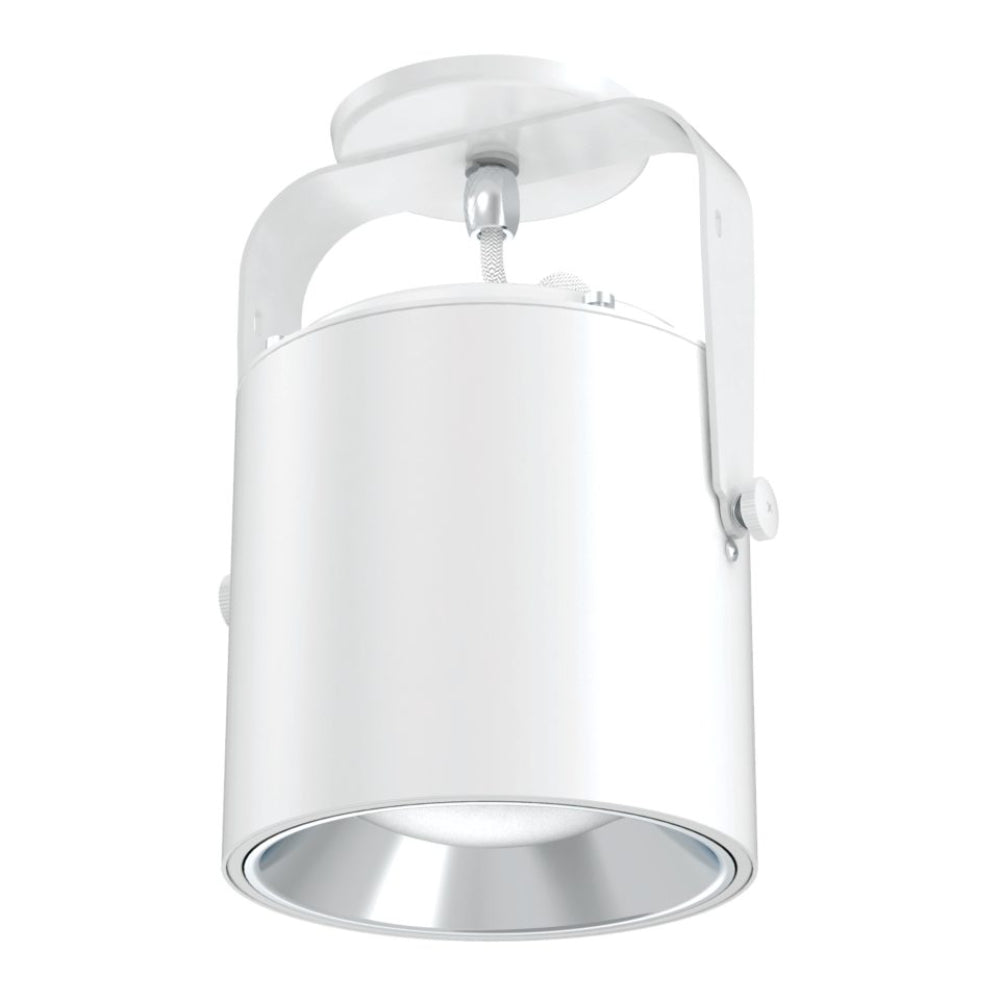

• Down, up/down and adjustable yoke styles

Product Files

Click for Portfolio LERS6C/LESQS6C/LSRYMS6C/ LSSQYMS6C Cylinders spec sheet

Click for Portfolio LERS6C/LESQS6C Cylinders VividTune spec sheet

Click for Portfolio LERS6C/LESQS6C Cylinders Full Spectrum spec sheet

Click for Portfolio LERS6C/LESQS6C Cylinders LuxWire Full Spectrum spec sheet

Click for Portfolio Cylinder brochure

Click for Portfolio LER4, LER6 Cylinders installation instructions

Click for Portfolio LuxWire Cylinders installation instructions

Click for Portfolio Yoke Mound Cylinders installation instructions

Click for Commercial Downlighting Product Guide

Click for Portfolio Product Selection Guide
