Description

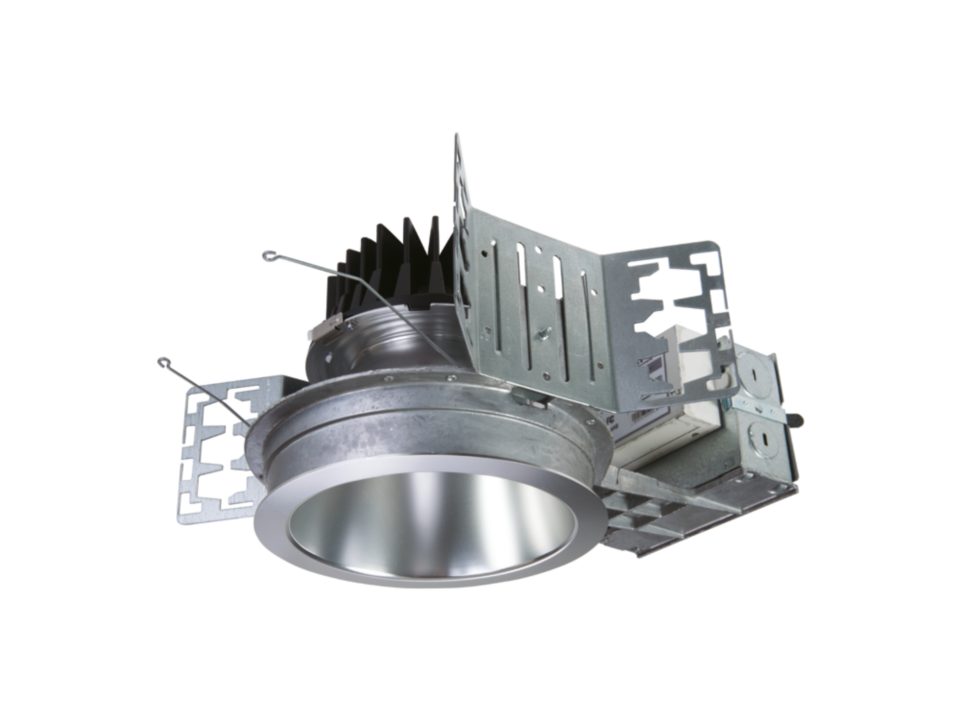

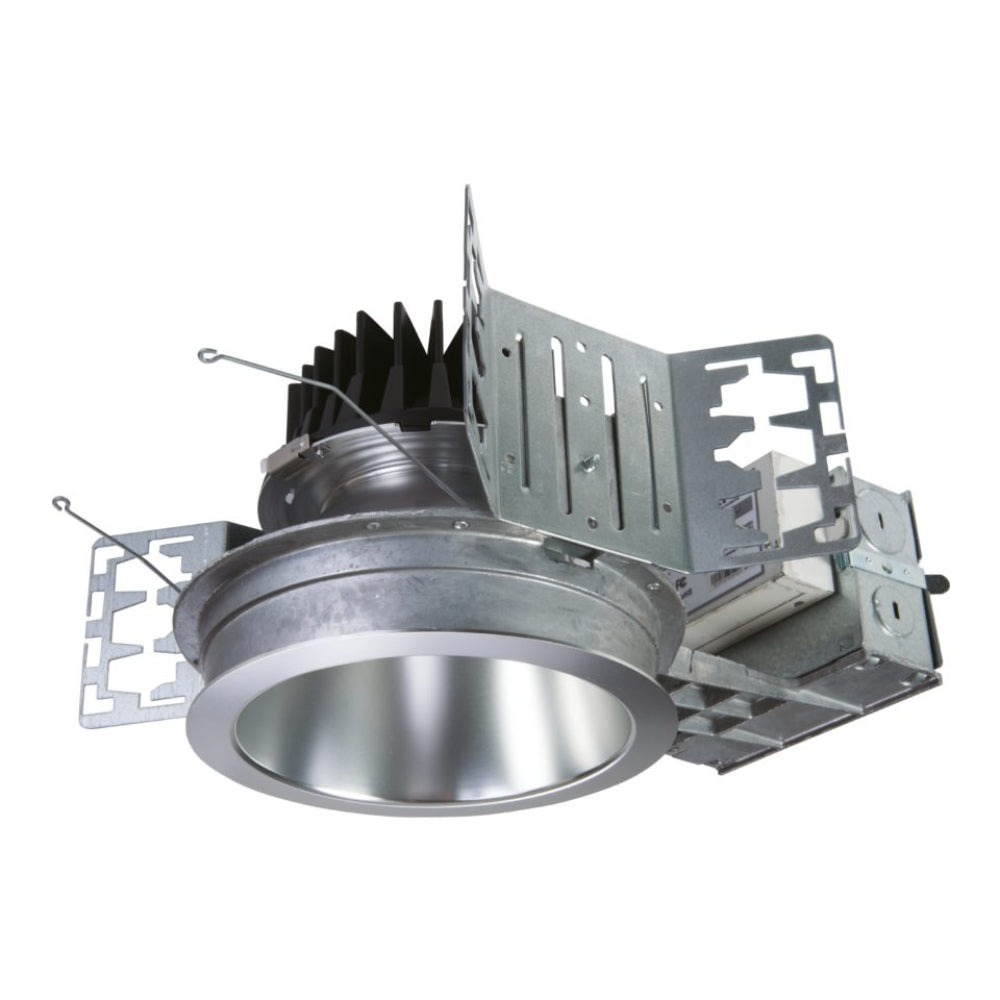

Portfolio Lighting LDS6C Recessed Light
Glare-free, even illumination with exceptional performanceThe 6" new construction recessed shallow downlight, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available with die cast aluminum, spun aluminum and injection molded non-conductive reflectors with light output of up to 4,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
High-performing optical systemTaking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
Features of Portfolio LDS6C- New construction downlight for shallow plenum space
- Excellent light control and low aperture brightness
- Designed for shallow plenums, ENERGY STAR® qualified
- Round die-cast, spun aluminum or non-conductive reflectors
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
- W2N Tunable White 2700K-6500K or 2000K-5000K
- Lumens: 1,000-4,000, 0-10V dimming down to 1%
- Optional snap in or remote driver
- WaveLinx and DLVP connected lighting systems compatibility
Product Files
Click for Portfolio LDS6C | EU6C | 6LBS spec sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio LDS6C | EU6C | 6LBS VividTune and 98 CRI spec sheet
Click for Portfolio Performance LED brochure
Click for WaveLinx LITE Brochure
Click for Portfolio LDS4 / LDS6 Installation Instructions
Click for Portfolio Plug-in Driver Replacement Installation Instructions
Click for Portfolio Round Plaster Lathing Ring Installation Instructions
Click for Portfolio Round Trim Upper Reflector Installation Instructions
Click for Portfolio Round Knife Edge/Rimless Millwork Ring installation instructions
Click for Portfolio 6-inch Downlighting VividTune spec sheet
Click for Portfolio D010 Drivers Dimming Guide
Click for Portfolio D010TR 0-10V Drivers Dimming Guide
Click for Portfolio D010TR Phase Drivers Dimming Guide
Click for Portfolio DE010 Drivers Dimming Guide
