Portfolio Lighting LDSQA2B LED 2-3/4" Adjustable/Slope Downlight

Portfolio Lighting LDSQA2B LED 2-3/4" Adjustable/Slope Downlight

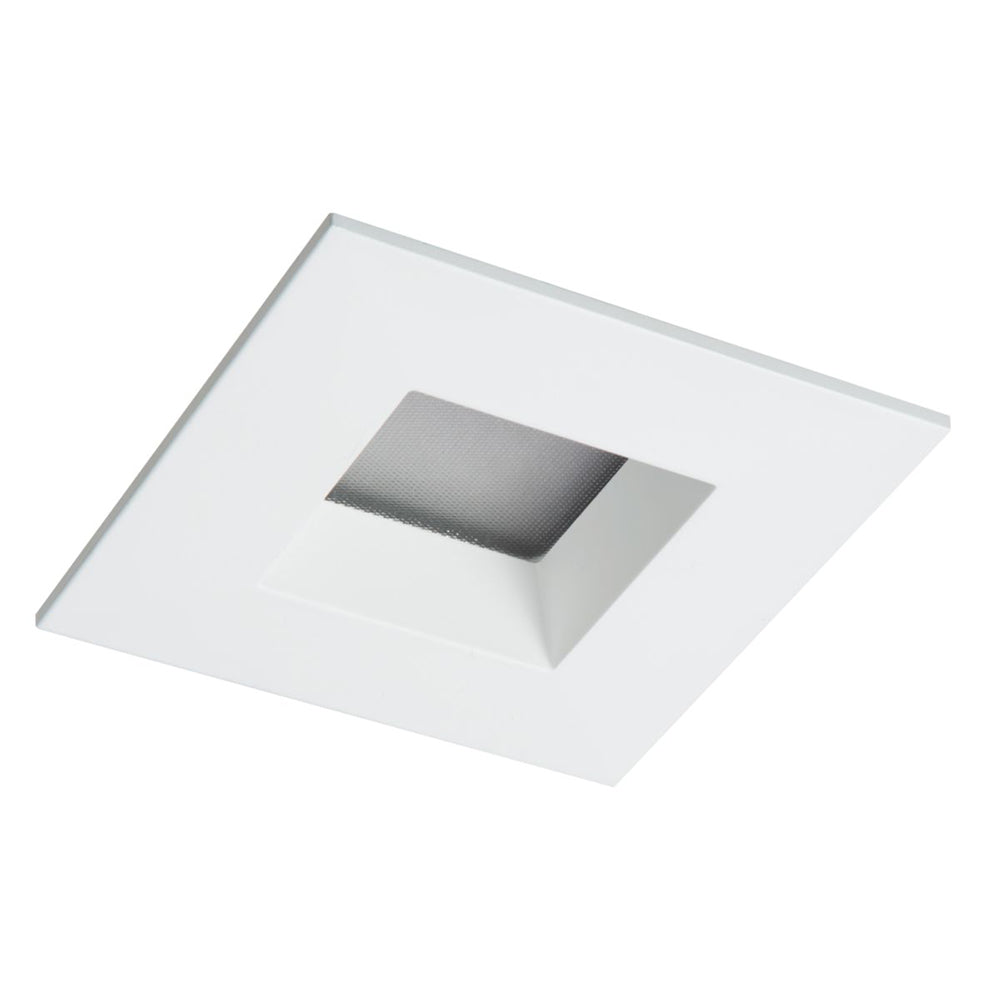

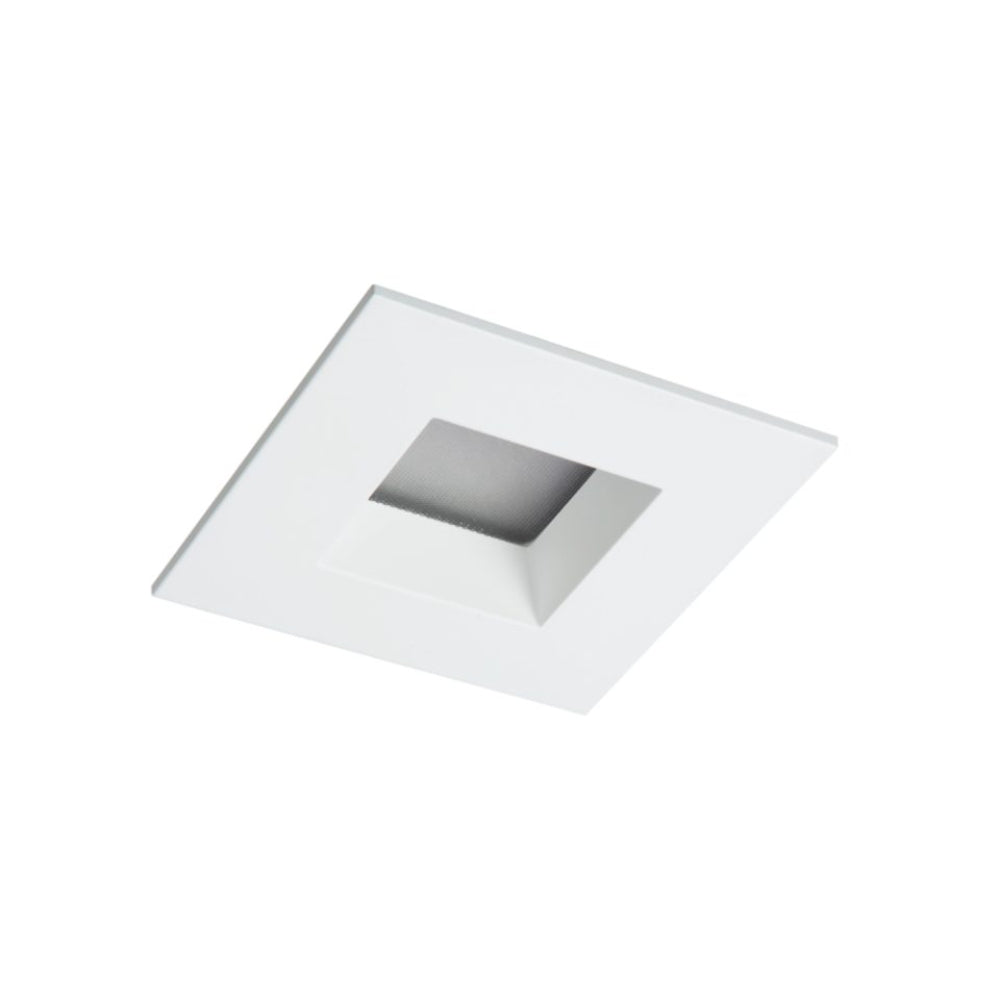

Designed for new construction, the 2-3/4" square adjustable accent downlight features field-interchangeable optics, offering the ultimate in flexibility to satisfy specific application needs. The unique adjustable design allows the luminaire to be installed in sloped ceilings in additional to traditional flat ceilings. The 365° rotation and the tool-less 45° tilt with the center beam optics provides full output without flashback.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Lumens: 500-2,800, Interchangeable optics in 5° increments: 10°-70°
• Square adjustable accent or lensed wall wash (flat or sloped ceilings)
• Excellent light control and low aperture brightness
• 365° rotation and 45° tilt holds any aiming position
• Die-cast aluminum reflectors, Holds 2 lens media
• 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
• 0-10V 1% dimming driver, Optional 100%-1% (DALI), 0-10V or DMX drivers
• WaveLinx connected lighting systems compatibility
• Plaster lathing ring accessory offered for flush reflector transition

Product Files

Click for Portfolio LDSQA2B specification sheet

Click for Portfolio LD2/LDA2 2-inch downlight brochure

Click for Portfolio LDA2B / LDSQA2B - Extension Collar installation instructions

Click for Portfolio LDA2B / LDSQA2B - LumaWatt installation instructions

Click for Portfolio LDA2B / LDSQA2B - Plaster Lathing Ring installation instructions

Click for Portfolio LDA2B / LDSQA2B - WaveLinx installation instructions

Click for Portfolio LDA2B / LDSQA2B Emergency installation instructions

Click for Portfolio Product Selection Guide
