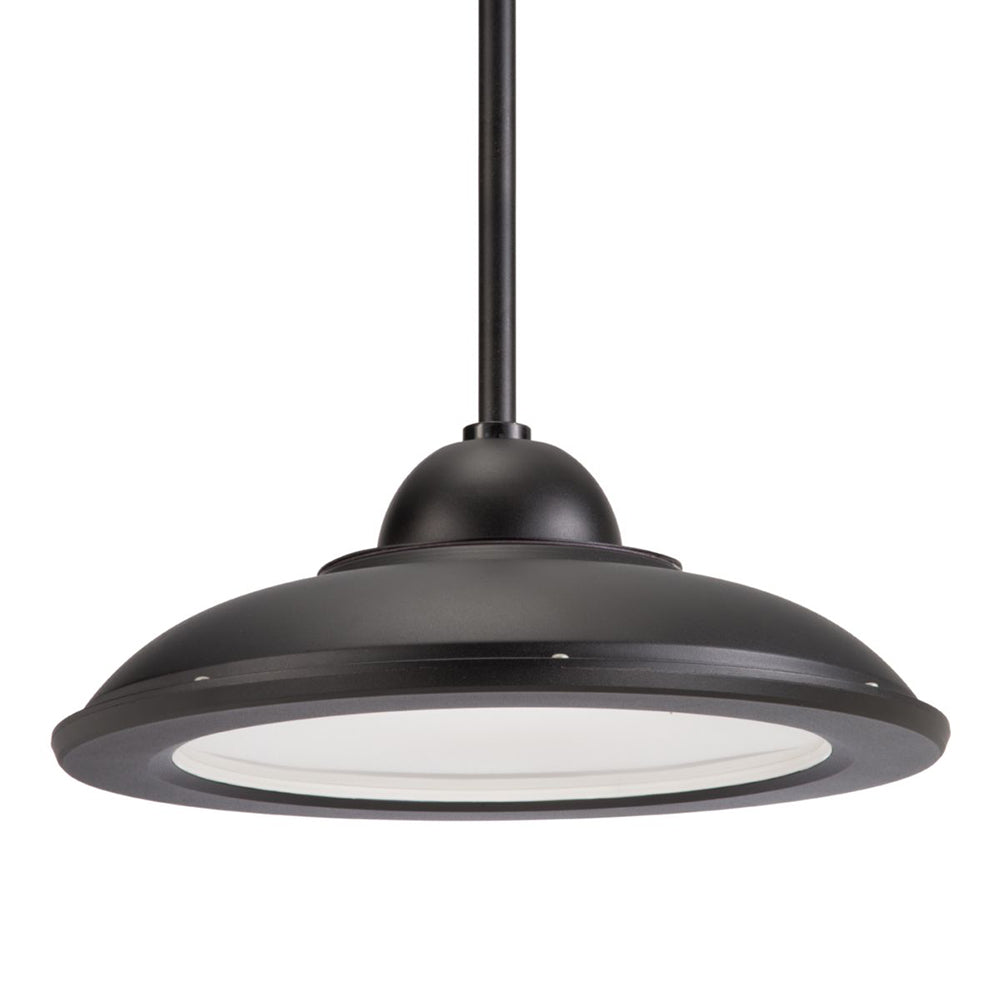

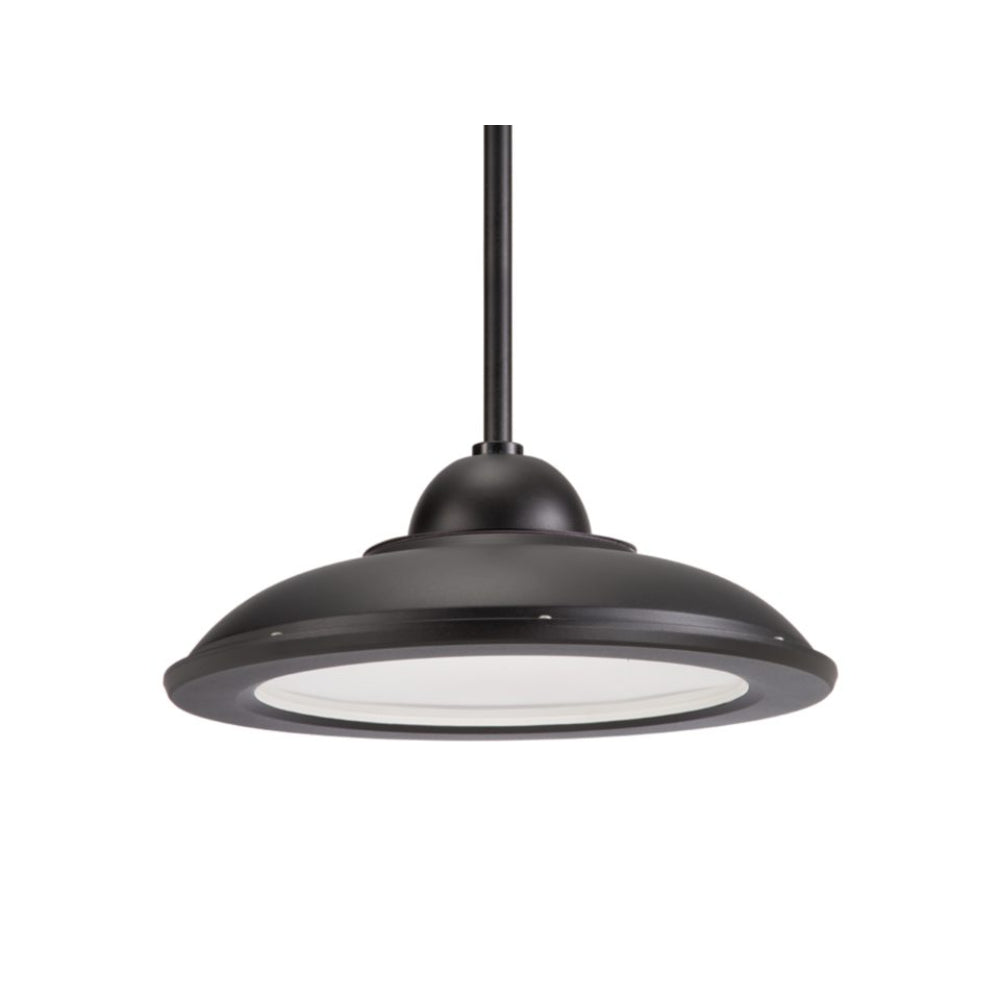

Portfolio Lighting LSM/LSWM LED High Lumen Surface-Mount Luminaire

Portfolio Lighting LSM/LSWM LED High Lumen Surface-Mount Luminaire

Designed for use in architectural and commercial applications with limited plenum height, the patented WaveStream optical technology provides uniform, glare-free illumination along with high efficacy, providing the perfect solution for high ceiling applications.

The ground breaking technology transforms the LED point source into a highly efficient and elegant luminous plane that delivers unparalleled design freedom; maximum energy efficiency; and unrivaled optical and brightness control. A patented optical coupling process dramatically improves luminaire efficiency and laser-precise, patented AccuAim™ optics provide unparalleled brightness control and optimal distributions tailored to each fixture and application.

• Patented WaveStream™ optical technology
• Distributions: medium and wide beams
• Mounting: ceiling, wall, stem or aircraft cable
• Spun aluminum housing, Spun aluminum reflectors
• 4 color temperatures: 2700K, 3000K, 3500K and 4000K CCT, CRI: 80 or 90
• Decorative one piece die-cast aluminum housing, Spun aluminum top
• Lumens: 4,500-9,000, Up to 100 lm/W
• Colors: Matte Black, White, Bronze and Silver paint finishes
• Standard dual dimming 0-10V/trailing edge driver
• 5-year warranty
