Sternberg Lighting RW303 Rialta® Column Bollard

Sternberg LightingSKU: RW303-RIALTA-COLUMN

Price:
Sale price$0.00 USD

Description

Sternberg Lighting RW303 Rialta® Column Bollard

Elegance with simple lighting

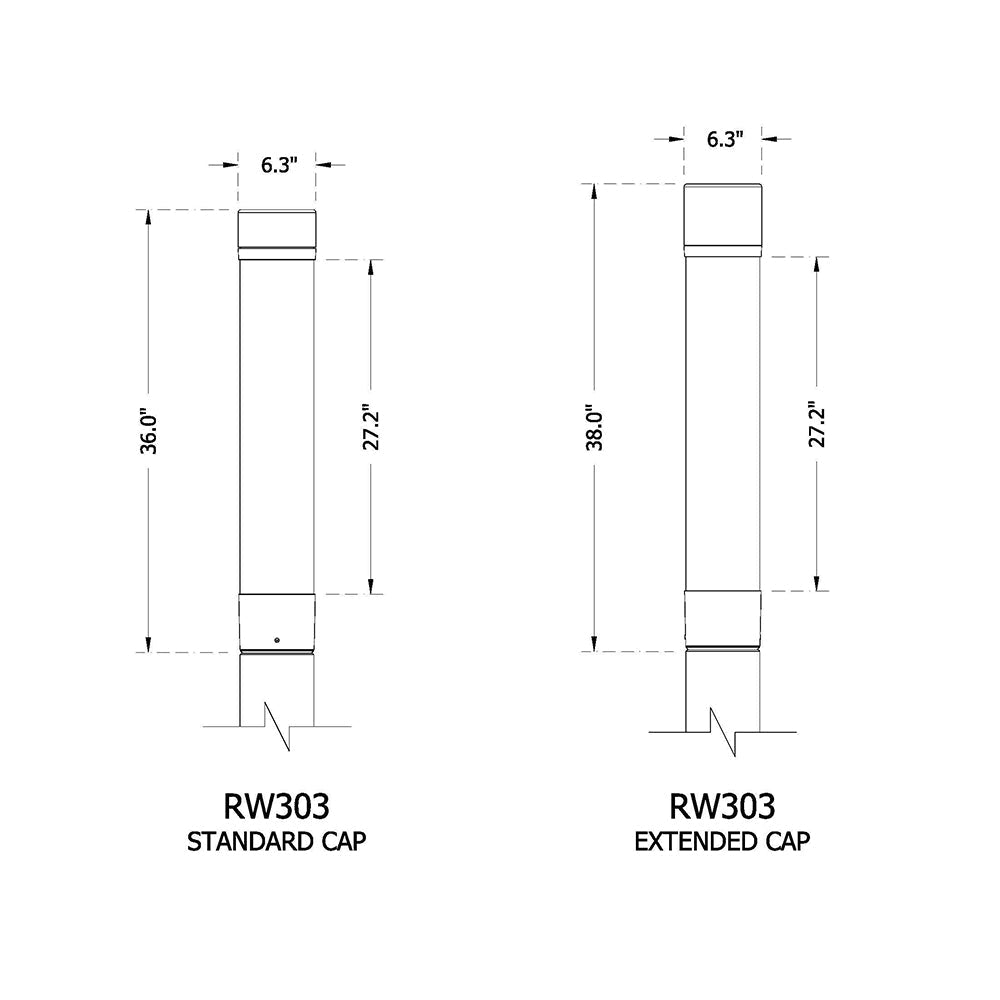

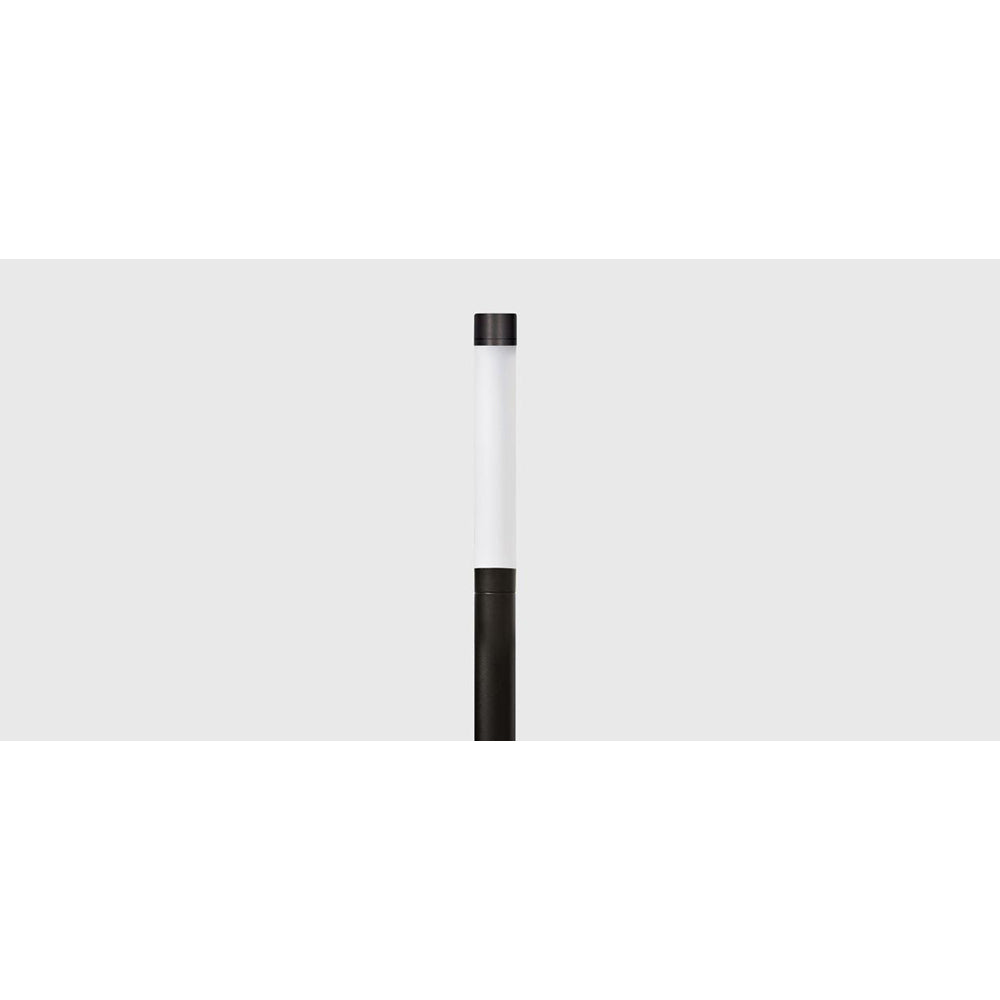

The RW303 Rialta® is a cylindrical luminaire offered in a variety of mounting options. Designed to bring ambiance to any project by providing a performance lighting package in a vertical form. The 6" cylinder adds a 27" high luminous element. The RW303 uses a Six LED board configuration to deliver a symmetrical distribution with high efficiency and low wattage consumption.

Post Top Configuration Available in heights:6' to 16' in 1' increments.

Features & Benefits

Installation

(Post Top Application)Four 1/2” (or 3/4") diameter anchor bolts in a 3.25" (or 8.75") bolt circle (depending on height), Diamond pattern. Provided with a hand-hole door, stainless steel hardware, and a grounding stud.

Comfortable Optics

SoftVue™ lens provides optimal visual comfort

Driver

Fixture includes a high efficiency driver with a THD less than 20% and a high power factor greater than .9. The driver is dimming capable using a 0-10v signal.

UL Listing

UL listed per UL1598 for Wet Locations and CSA 22.2 No. 250.0 for the US and Canada.

IP Rating

IP66 rated

Finish

6 Stage Polyester Powdercoat paint system

Warranty

7-year limited warranty

Receptacle

Optional 120V duplex 15A GFI or NON-GFI/5A USB combo duplex receptacle installed in proprietary "Low-Profile" box with a lockable In-Use cover (lock not included).

Product Files

Click for RW303 Spec Sheet

Click for RIALTA Brochure

Click for UrbanLine Brochure

Click for RW300 Post Top Installation Sheet

Click for RW300 Post Top Installation Sheet

Click for RW300 Stem Mount Installation

Click for RW300 Wall Mount Installation
