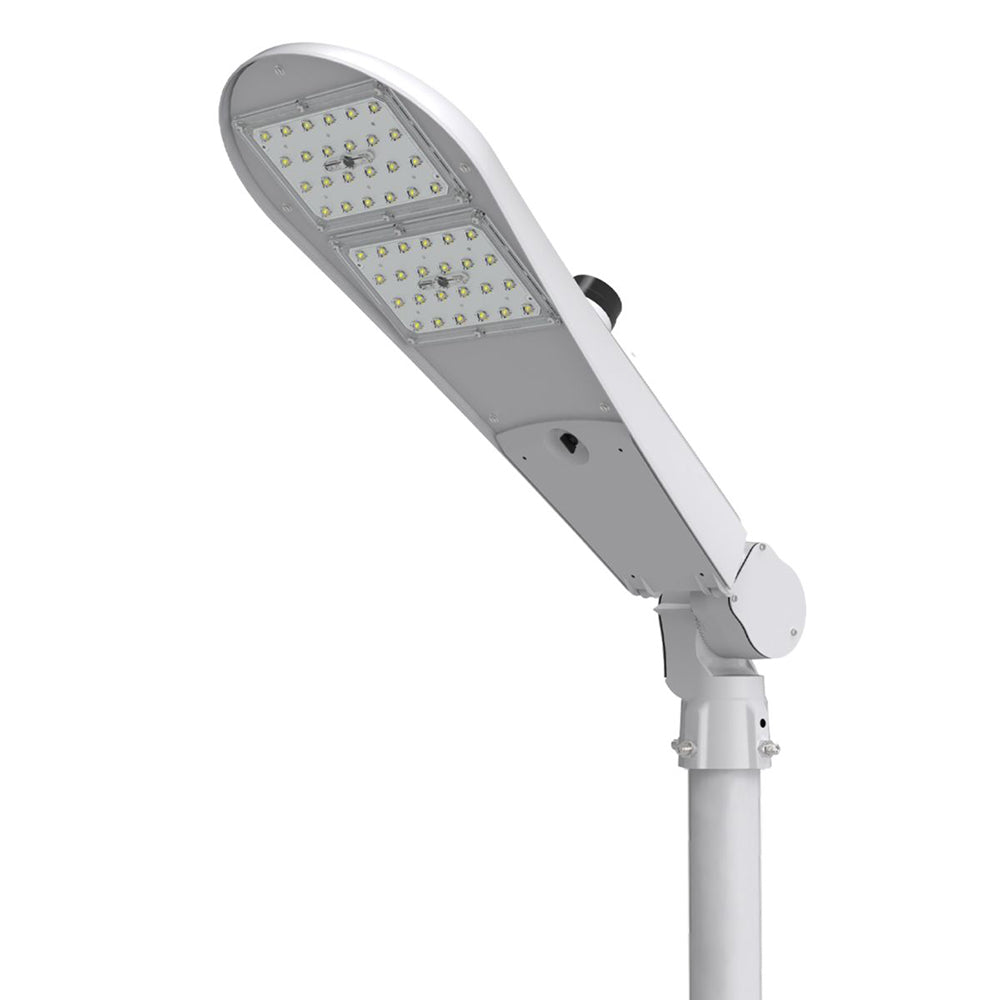

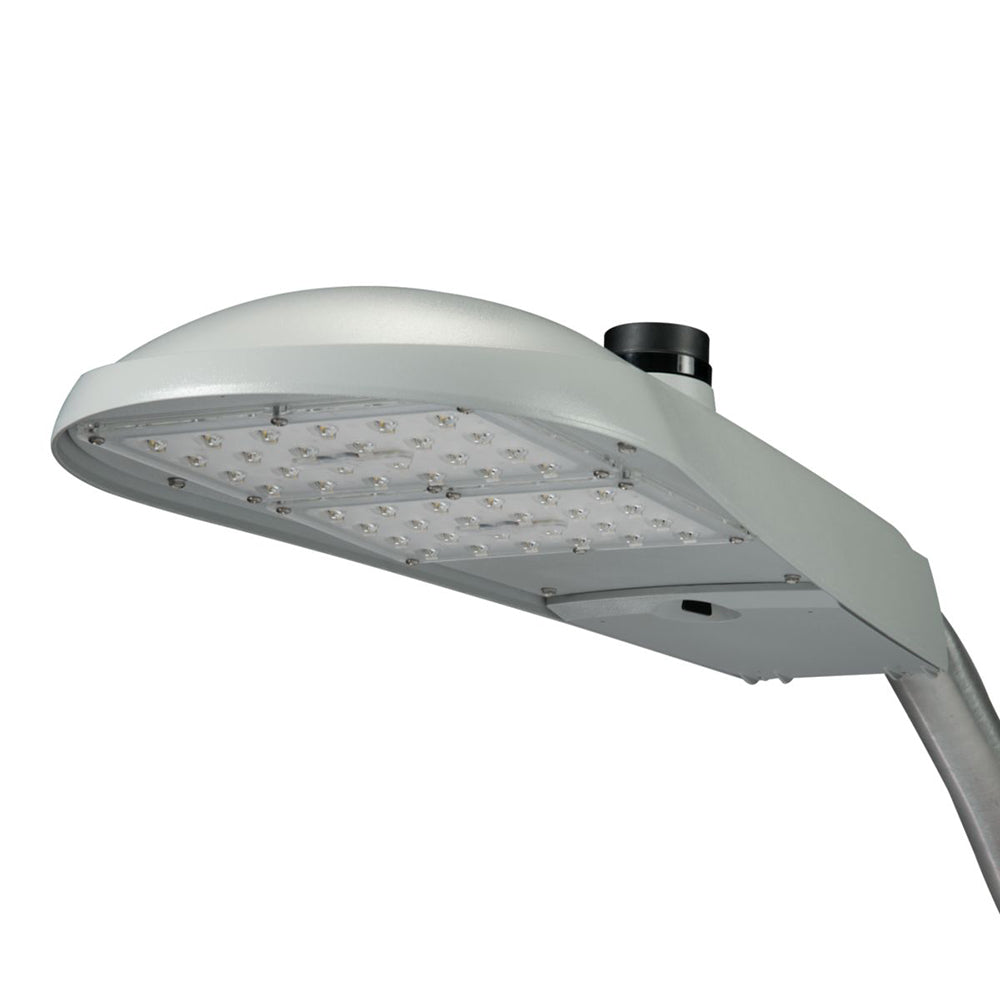

Streetworks Lighting ARCH Archeon Medium Cobrahead Roadway Luminaire
Modern cobrahead design. Superior performance. Customer-focused features.The Archeon Medium LED road light delivers advanced LED technology in a familiar cobra head design. The patented, high-efficiency AccuLED Optics™ system provides uniform and energy conscious illumination and our customer-focused features include single latch tool-less entry for easy installation and maintenance, and industry-leading surge protection and control options.
Features of Streetworks Lighting ARCH Archeon Medium Cobrahead Roadway Luminaire- Die-cast aluminum construction, Single latch tool-less entry
- Replaces up to 400W equivalent HID, -40°C to 40°C operating range
- Pole-mounted, Optional arm and offset adjustable arm mounting
- 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation, IP66 rated
- Lumens: 5,800 to 23,000, 13 lumen packages, Up to 175 lm/W
- 4000K standard, optional 2700K, 3000K, 5000K CCT, CRI: 70 standard
- 5 high-efficiency, patented AccuLED optical distributions
- Two levels of 10kV surge protection available
- Greater than 98% lumen maintenance after 60,000 hours at 40°C
