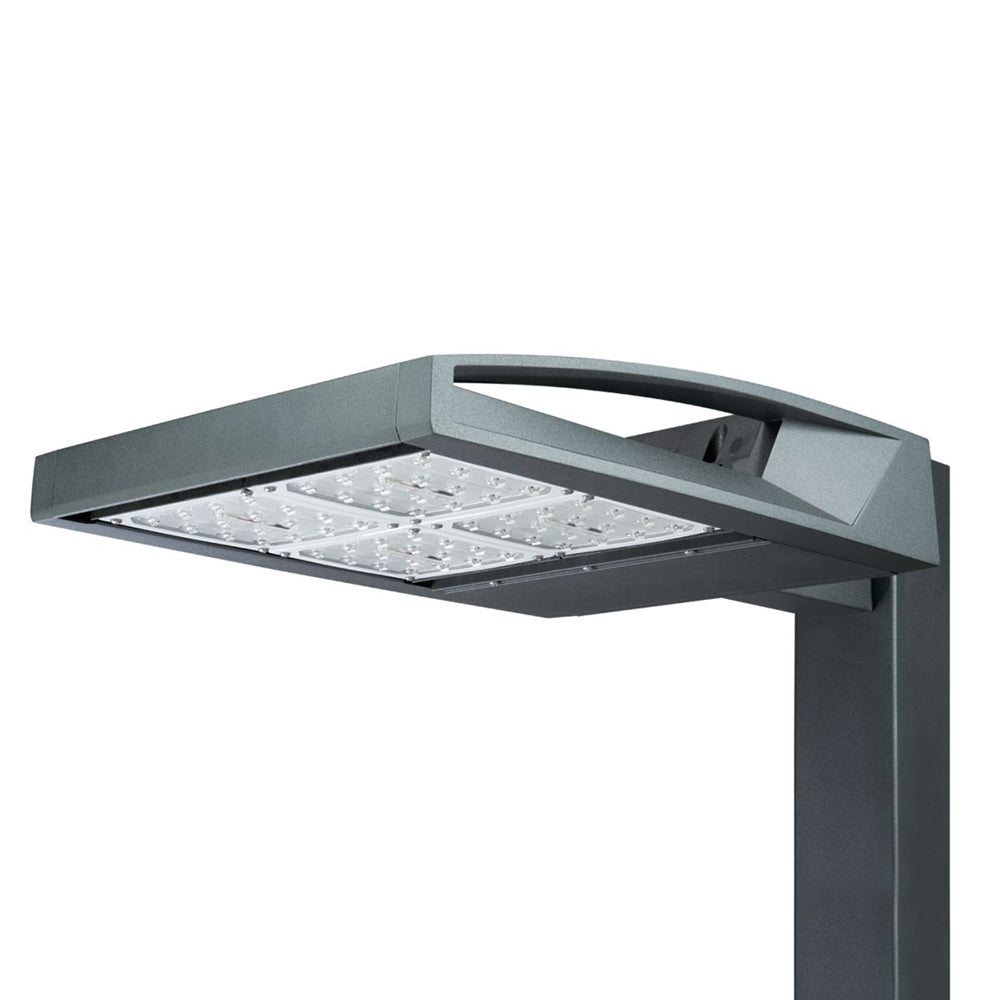

Streetworks Lighting GAA Galleonaire LED Parking Lot Lights

Streetworks Lighting GAA Galleonaire LED

The Galleonaire LED luminaire features advanced thermally conductive polymer heatsinks and open frame endcaps for a sleek aesthetic while significantly reducing weight and EPA. Patented, high-efficiency AccuLED Optics system provides uniform and energy conscious illumination to walkways, parking lots, roadways, building areas and security lighting applications. IP66 rated and UL/cUL Listed for wet locations.

• Choice of 16 high-efficiency, patented AccuLED Optics™
• 3,400 - 61,800 lumens, up to 131 lp/W
• Standard in 4000K CCT, 70 CRI, optional 2700K, 3000K, 5000K and 6000K
• -40°C to 40°C operating range
• 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
• IP66 rated housing and LED Light Squares
• Thermally conductive polymer heatsink for up to 22% weight reduction
• Pole, mast-arm or wall-mounted configurations, 3G vibration rated
• Five-year warranty

Click for Streetworks GAA Galleonaire LED specification sheet

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Glare Reduction Shield (GRS)

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square Perimeter Fence Shield (PFS)

Click for McGraw-Edison, Streetworks Installation Instructions for Galleonaire LED

Click for Outdoor Field Rotatable Optics Installation Instruction Sheet

Click for Lumark, McGraw-Edison, Streetworks Installation Instruction Sheet for LED Light Square House Side Shield (HSS)

Click for Streetworks Galleonaire Features and Benefits

Click for Streetworks Technical Bulletin

Click for After Hours Dim Supplemental Guide
