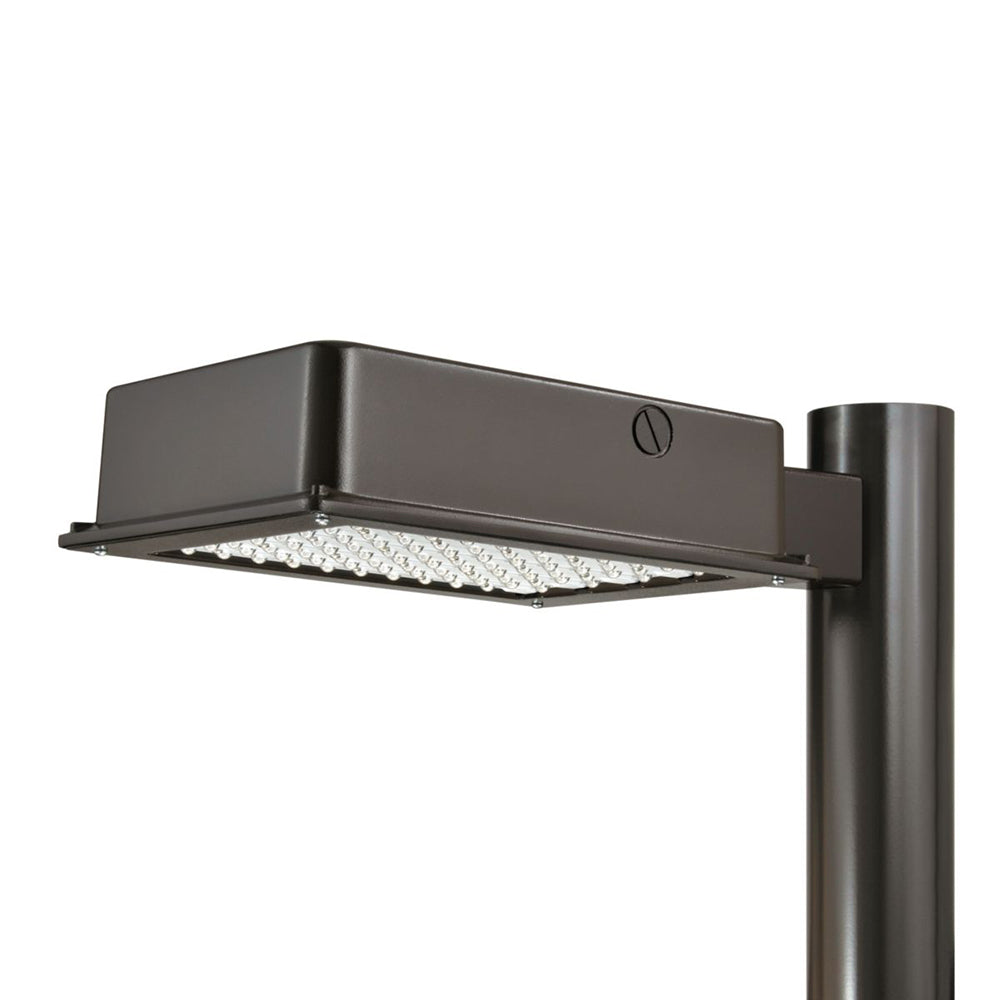

Streetworks Lighting RDG Ridgeview LED Parking Lot Lights

Streetworks Lighting RDG Ridgeview LED

The Ridgeview™ LED area/site luminaire is the compact, efficient, economical approach to LED area lighting. A pure blend of traditional form and LED efficiency, Ridgeview provides functional, low profile design with excellent operating performance. Patent pending modular LightBAR™ technology delivers uniform and energy-conscious illumination to parking lots and perimeter security lighting applications. U.L. and CUL listed, LM79/LM80 compliant, IP66 rated LightBARS™, IP65 rated fixture and 3G vibration rated.

• One-piece die-cast aluminum housing can be pole- or wall-mounted
• Optical design creates consistent distribution and scalability
• Choice of 12 high-efficiency, patented AccuLED Optics™
• Offered standard in 4000K (+/- 275K) CCT and nominal 70 CRI
• Suitable for operation in -40°C to 40°C ambient environments
• 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
• Proprietary circuit module withstands 10kV of transient line surge
• Options include egress battery pack and bi-level switching
• Five-year warranty

Product Files

Click for Streetworks RDG Ridgeview LED

Click for Streetworks Installation Instruction Sheet for Ridgeview LED
