Streetworks Lighting USSL Series Area and Site Lights

Streetworks Lighting USSL Series

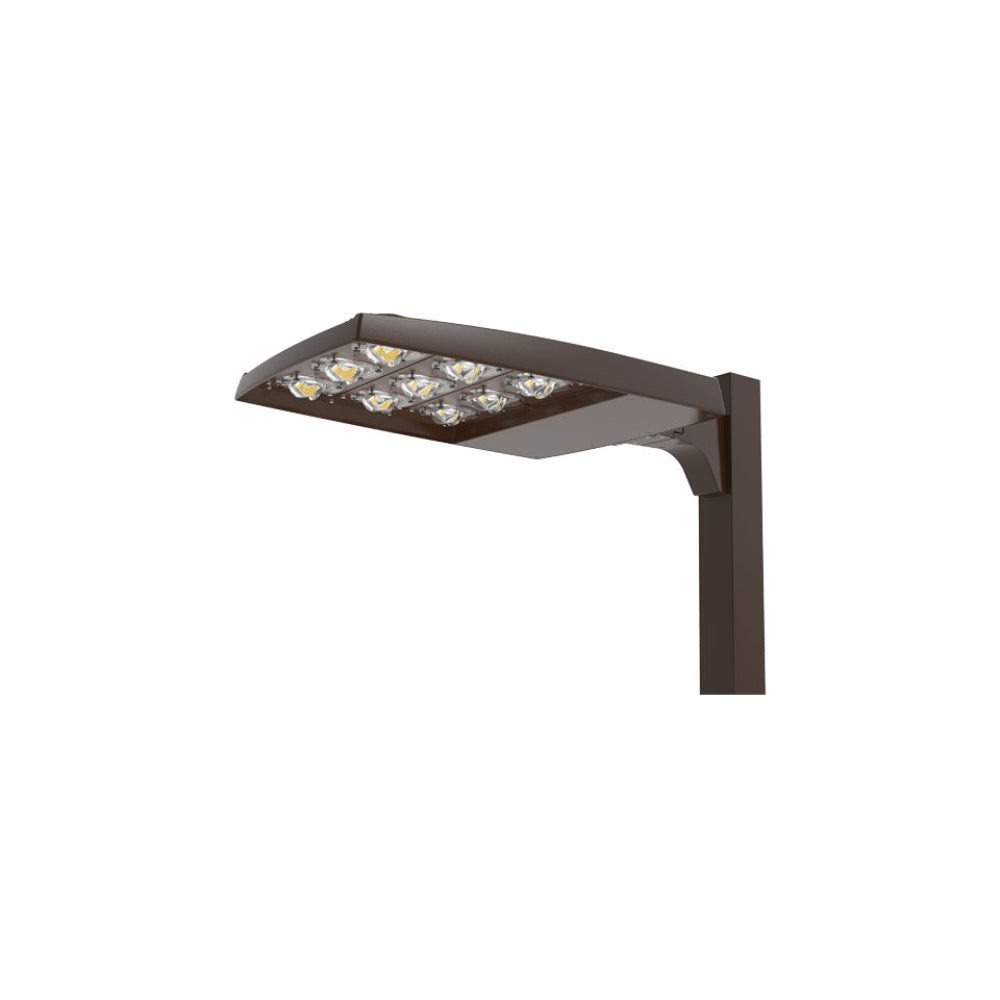

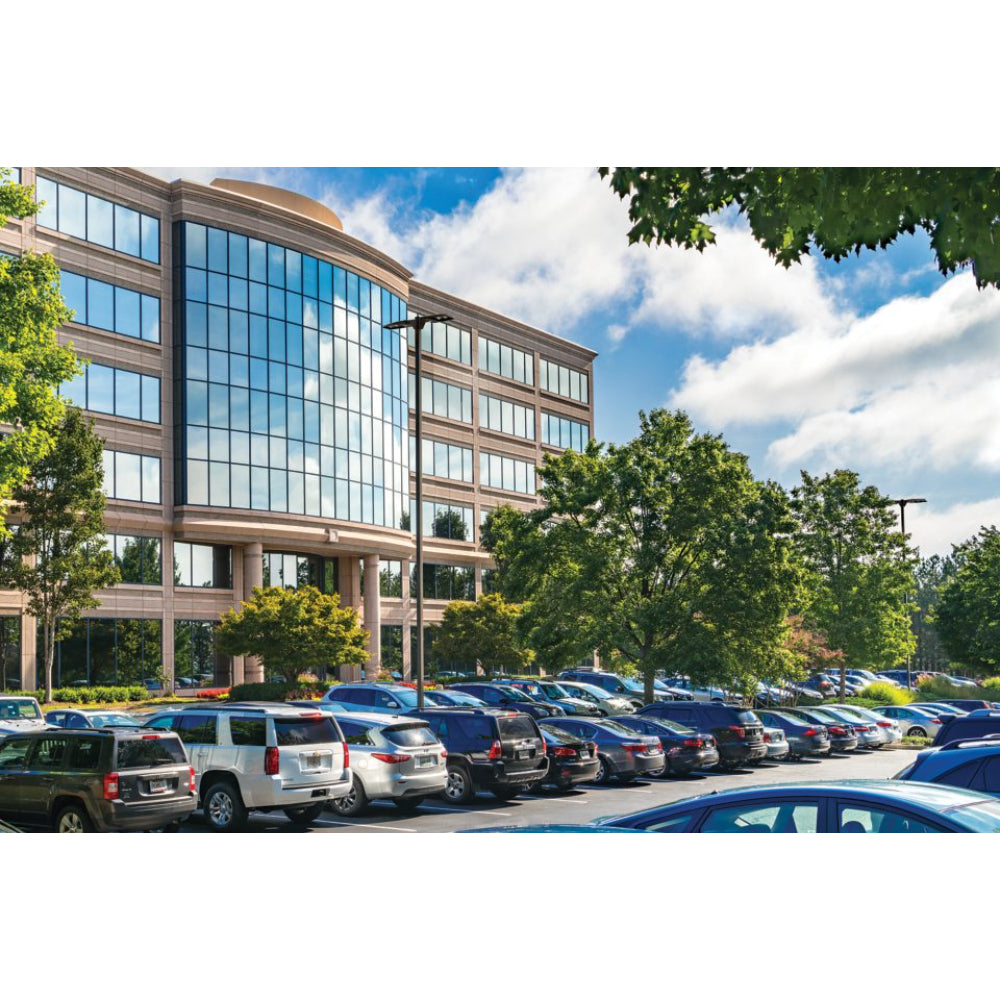

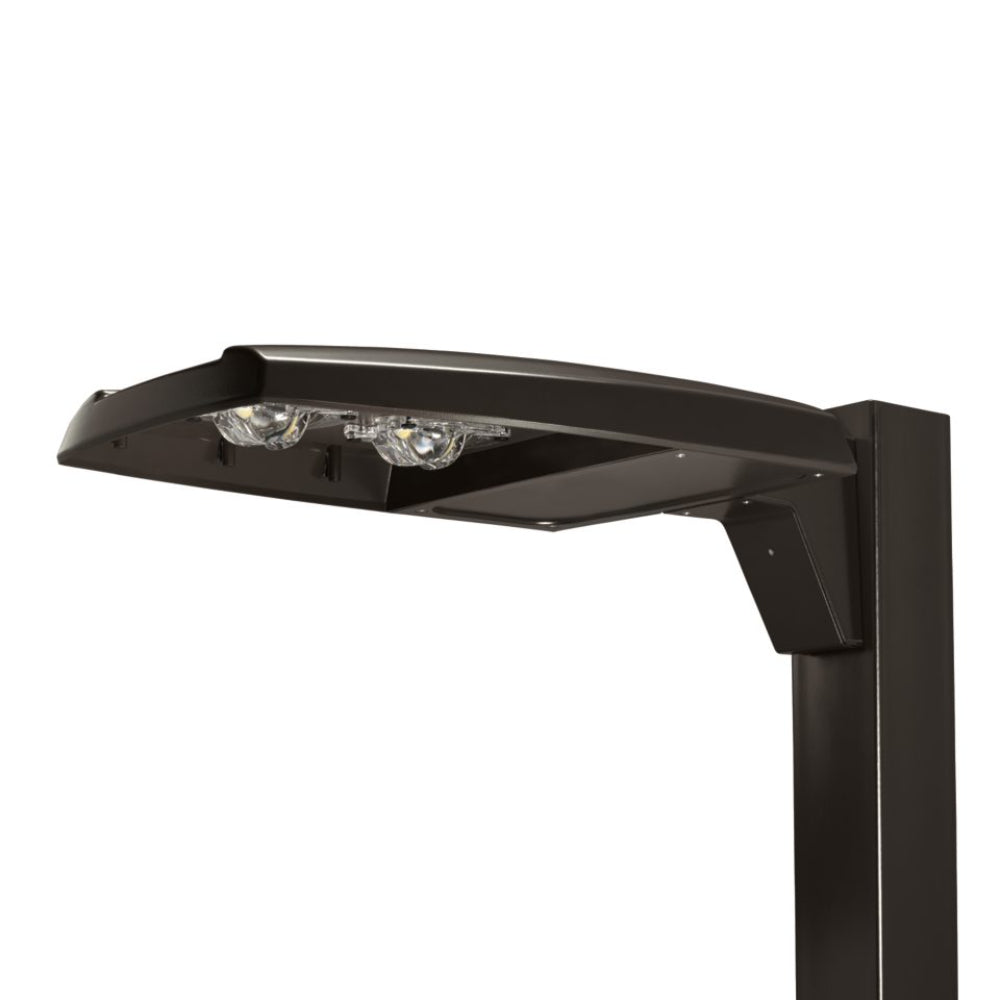

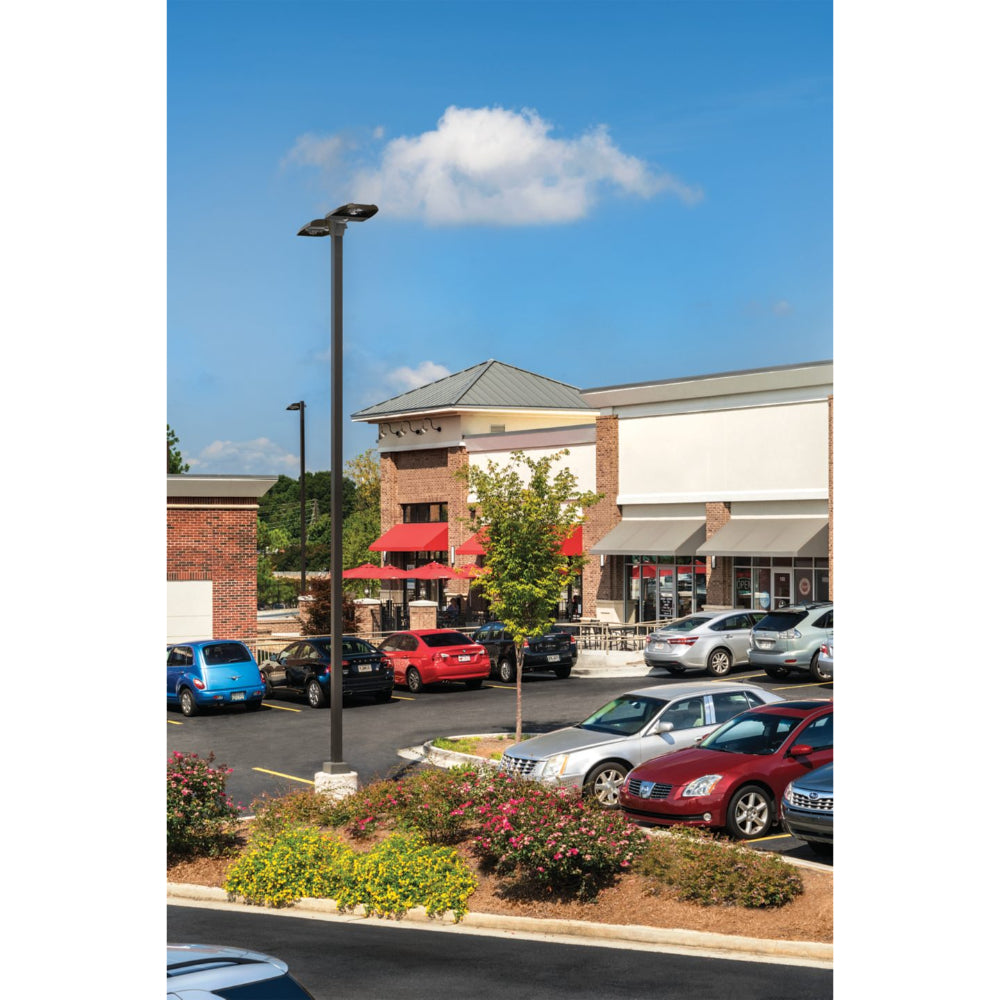

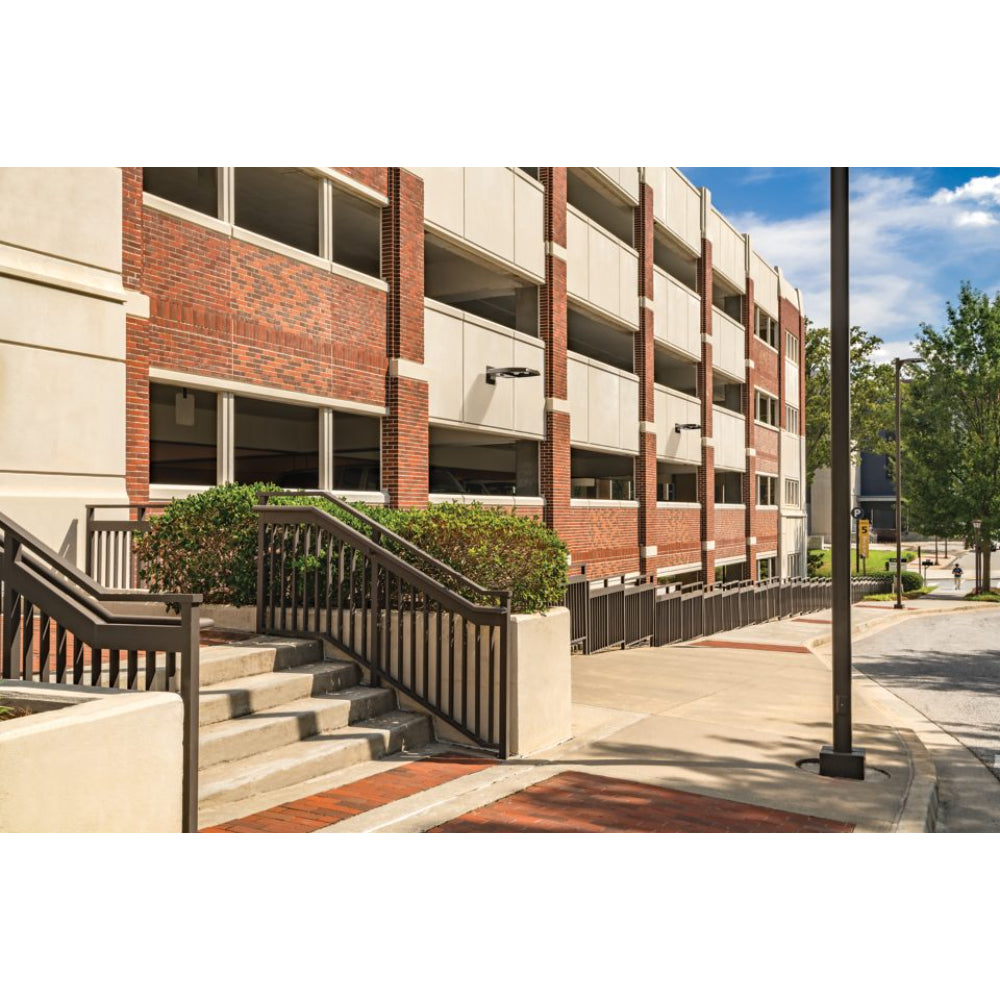

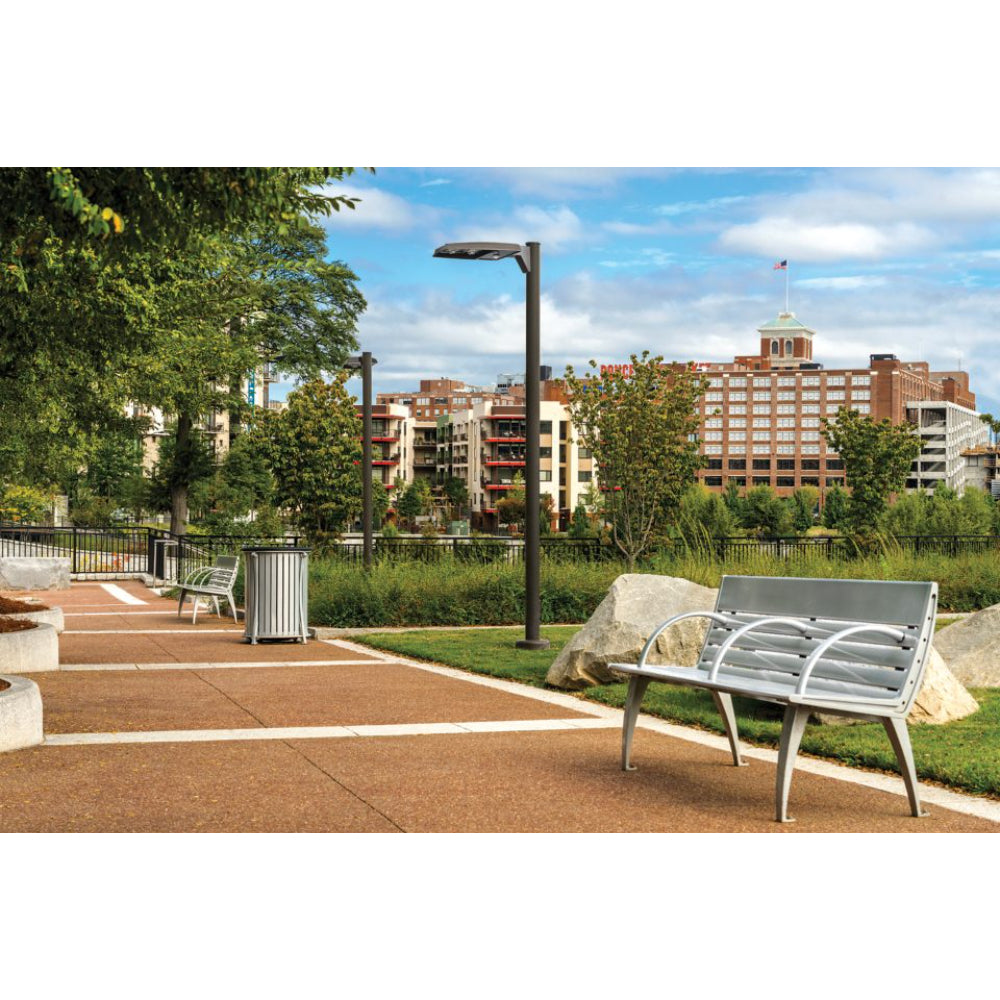

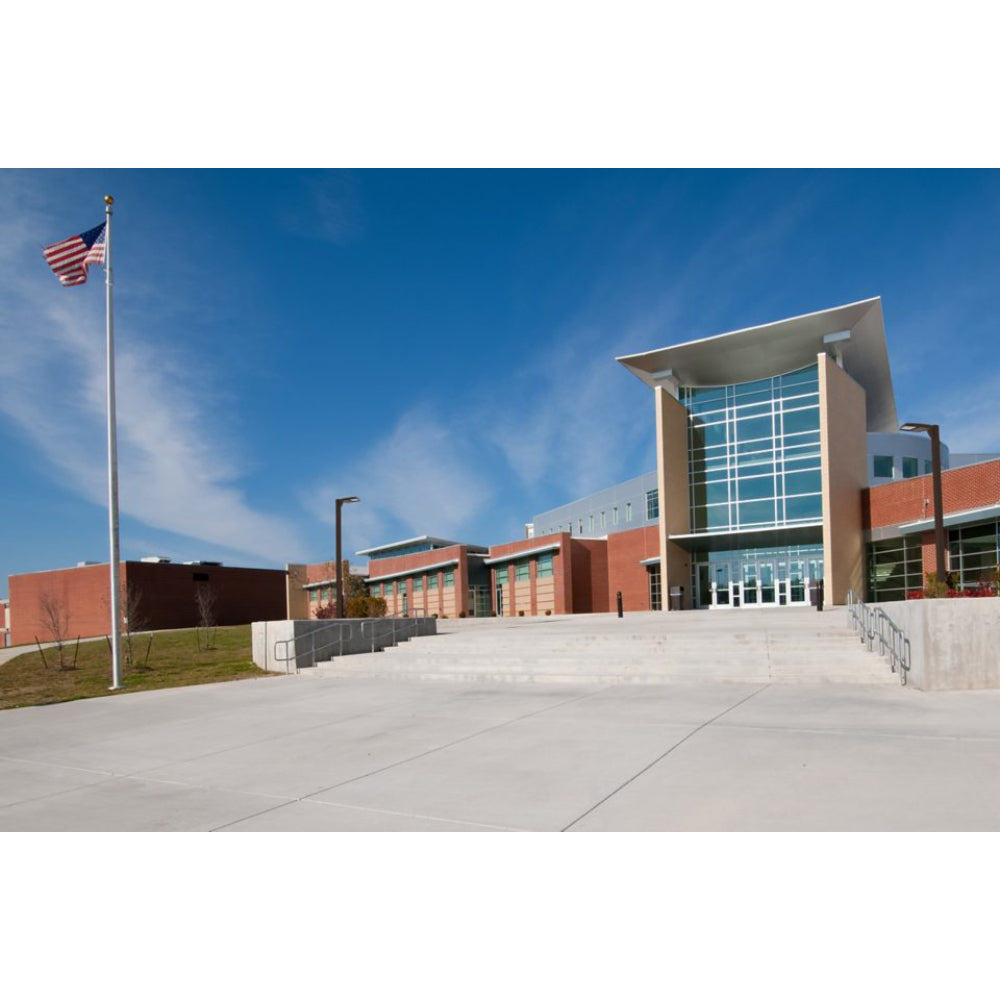

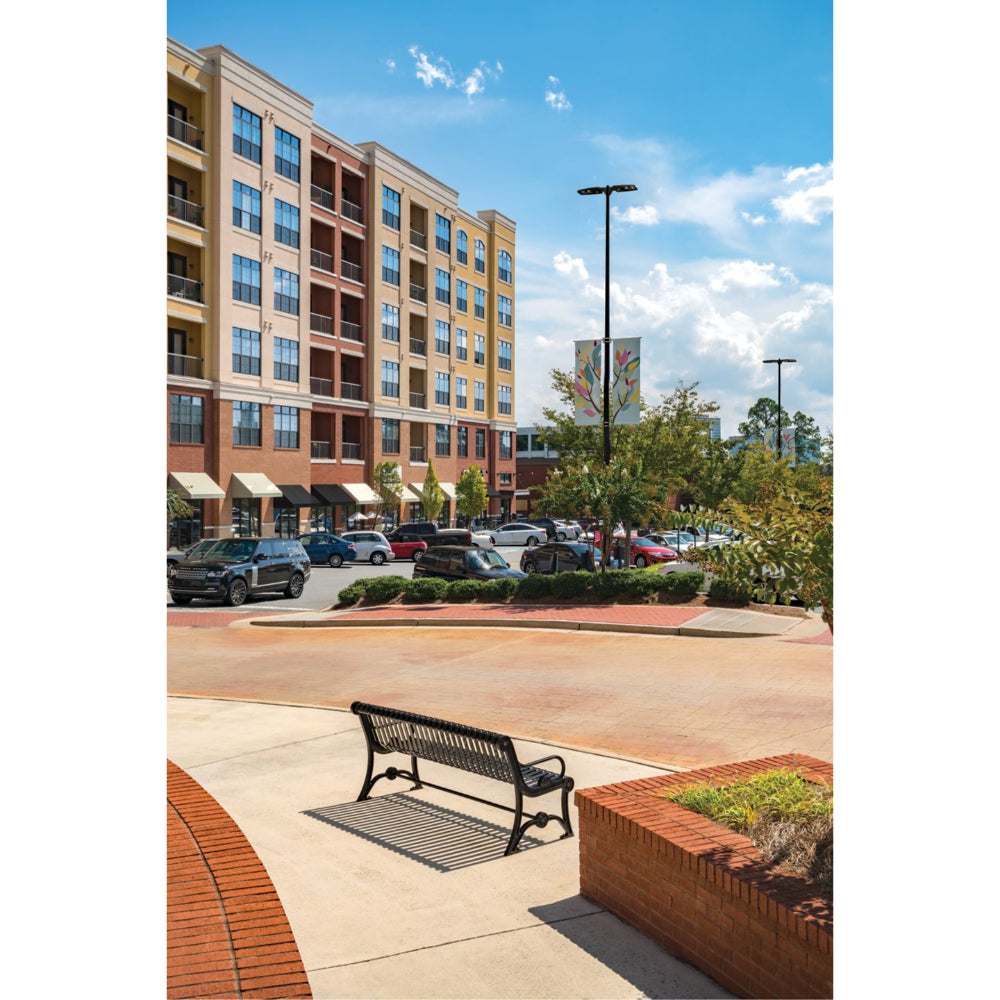

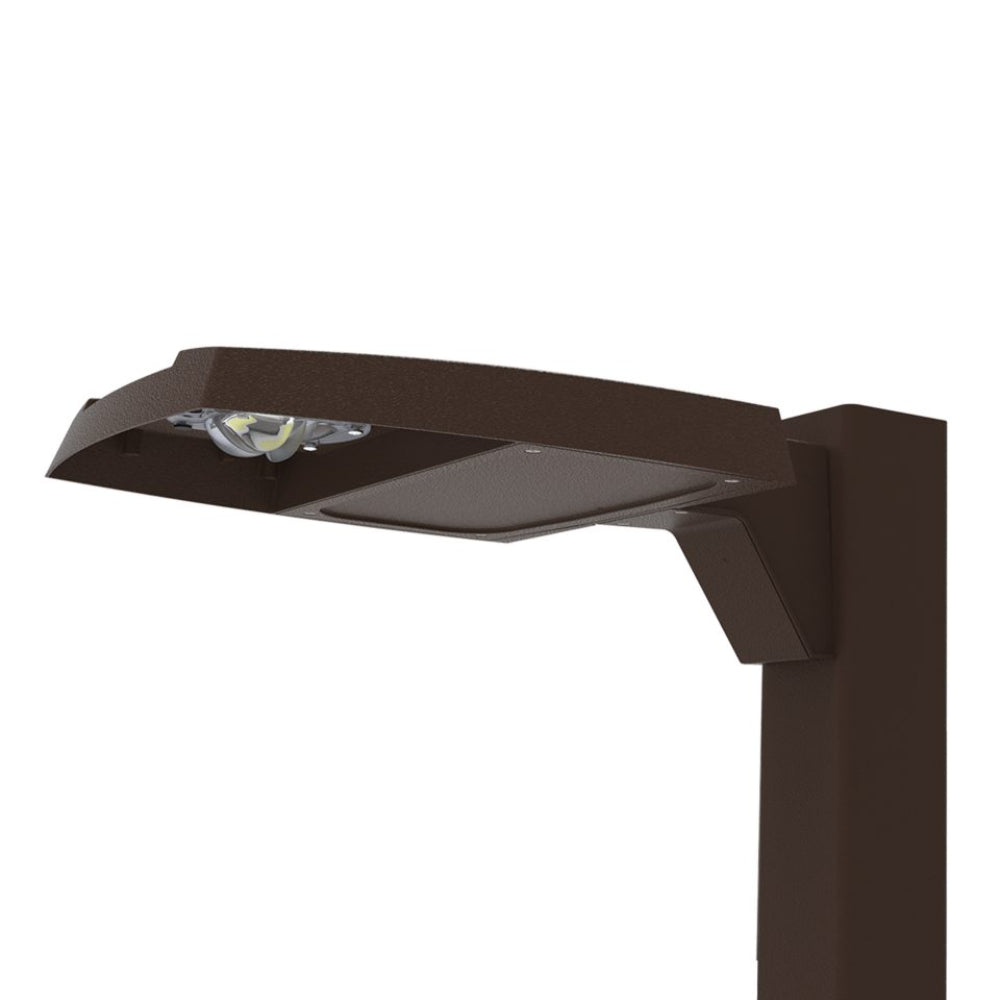

The USSL LED area, site, and roadway luminaire combines optical performance, energy efficiency and long-term reliability in an advanced, patent pending modern design. Utilizing the latest LED technology, the USSL luminaire delivers unparalleled uniformity resulting in greater pole spacing. A versatile mount standard arm facilitates ease of installation for both retrofit and new installations. With energy savings greater than 85%, the USSL fixture replaces 70 - 1,500W metal halide fixtures in general area lighting applications such as parking lots, walkways, roadways and building areas.

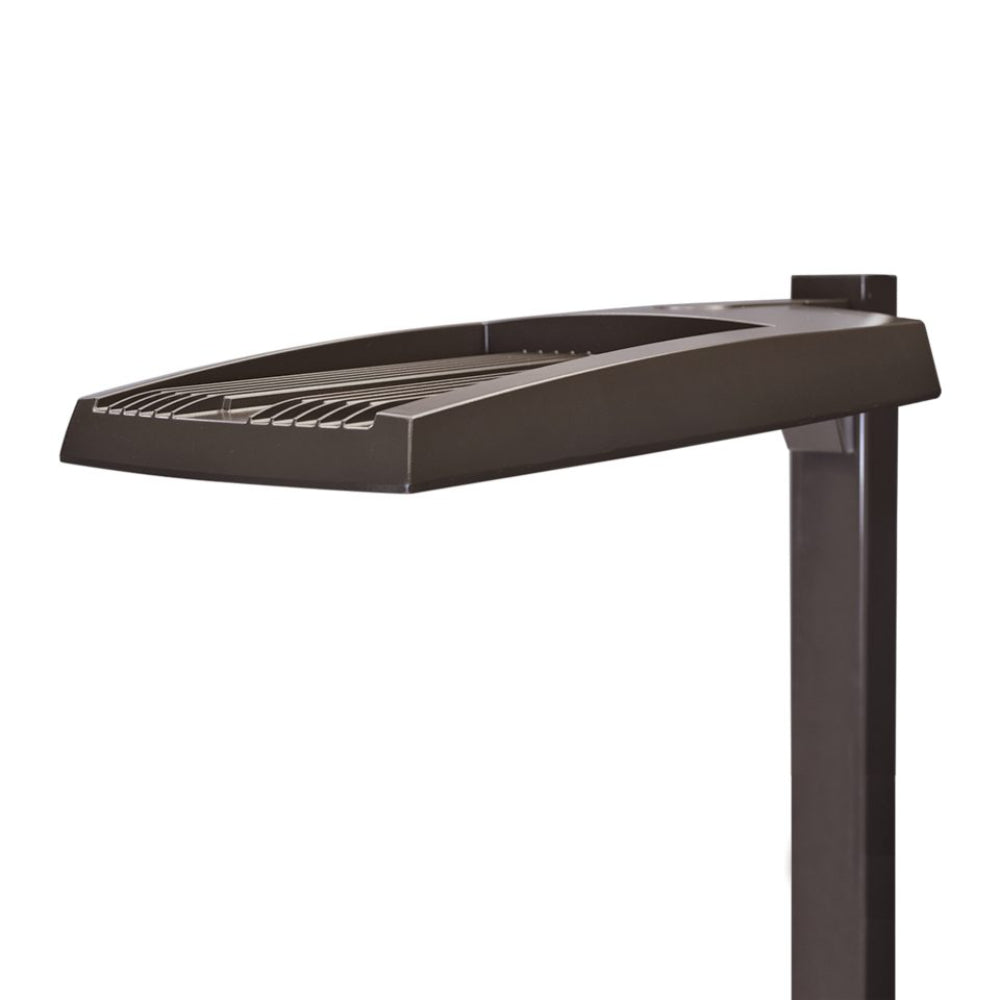

• Low profile, die-cast aluminum housing
• Versatile mount arm - Multiple drill patterns, round and square poles
• Available in 35W - 588W (4,800 - 84,000 lumens)
• Maximize energy savings with efficacies up to 160 lumens per watt
• Type II, III, IV, V distributions
• Replaces 70W up to 1,500W HID equivalents
• Standard 4000K CCT minimum 70CRI (3000K and 5000K CCT optional)
• 120-277V Standard, 347V or 480V optional. Standard 0-10V dimming
• Integrated stand-alone or wireless controls for additional savings

Click for Streetworks USSL Series specification sheet

Click for Streetworks Installation instruction sheet for the USSL

Click for Installation Instructions for Prevail Petite / USSL Petite Wire Guard

Click for Installation Instructions for Prevail Maxx / USSL Maxx

Click for Streetworks Installation instruction sheet for the USSL-XL

Click for Streetworks Installation instruction sheet for Integrated Sensor (Supplementary)

Click for Streetworks USSL Features and Benefits

Click for Infrastructure and Public Works Brochure
